The All-in-One Design That Eliminates Complexity

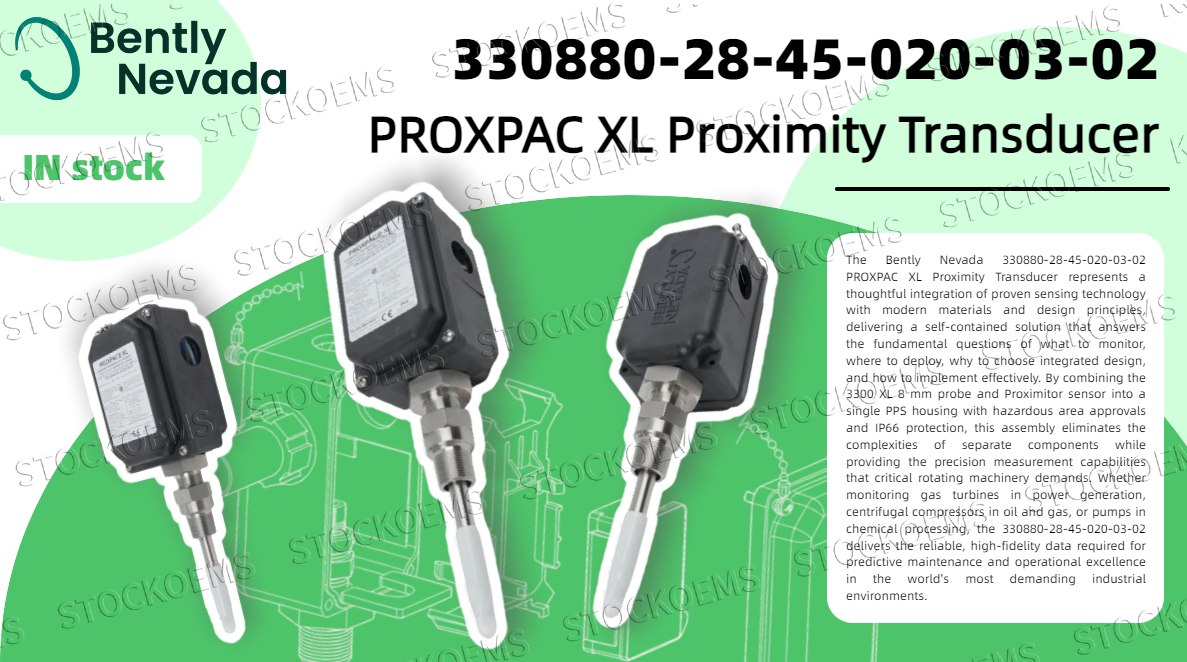

The Bently Nevada 330880-28-45-020-03-02 represents a significant evolution in proximity transducer technology, serving as a completely self-contained proximity probe system that fundamentally changes how industrial machinery monitoring is implemented. Unlike traditional configurations that require separate probe housings, extension cables, and distinct Proximitor sensor enclosures, this innovative assembly integrates a 3300 XL 8 mm proximity probe and its associated Proximitor sensor into a single, compact housing. The housing cover itself contains the 3300 XL Proximitor sensor, creating an integrated system that eliminates the need for an extension cable between the probe and its sensor. Field wiring connects directly between the monitors and the PROXPAC XL Assemblies, removing the requirement for a separate Proximitor housing and significantly reducing installation complexity. This all-in-one approach addresses a fundamental question in industrial monitoring: why complicate system design with multiple components when a single, integrated solution can deliver superior performance with fewer points of failure?

Engineered for the World's Most Demanding Industrial Environments

The 330880-28-45-020-03-02 has been specifically engineered to answer the question of where such a transducer can be deployed effectively. Its construction begins with a housing made of Polyphenylene Sulfide (PPS), an advanced molded thermoplastic that replaces the steel and aluminum used in previous Bently Nevada housings. This material incorporates glass and conductive fibers that strengthen the housing while effectively dissipating electrostatic charges. The assembly carries a Type 4X and IP66 environmental rating, providing exceptional protection in severe environments including outdoor installations, marine applications, and locations exposed to hose-directed water. The -28 option in the model number indicates the inclusion of Multiple Approvals (ATEX, IECEx, CSA, etc.), making this transducer suitable for hazardous area installations where safety certifications are mandatory. The operating temperature range extends from -52°C to +100°C for the housing and Proximitor sensor, while the probe itself can withstand temperatures from -52°C to +177°C. With a linear range of 2 mm (80 mils) and an incremental scale factor of 7.87 V/mm (200 mV/mil) ±5% including interchangeability error, this transducer delivers the precision required for critical monitoring applications across power generation, oil and gas, chemical processing, and metallurgy industries.

Simplified Installation and Seamless System Integration

The 330880-28-45-020-03-02 addresses the how of industrial monitoring by streamlining both installation and ongoing maintenance. The specific configuration of this model includes a 4.5-inch (114 mm) standoff adapter (B option 45), a 2.0-inch (51 mm) probe penetration (C option 020), 3/4-14 NPT fittings with a reducer (D option 03), and 3/4-14 NPT mounting threads (E option 02). The assembly provides field wiring terminals that accept 0.2 to 1.5 mm² (16 to 24 AWG) conductors, with a maximum field wiring length of 305 metres (1,000 feet) between the sensor and monitor. The threaded sleeve design allows for ±12.7 mm (0.5 in) adjustment from the mid-setting point, enabling precise gap setting without requiring machinery shutdown. Users can access and externally adjust the probe through the housing, maintaining the operational advantages of the 31000 and 32000 series housings while benefiting from the integrated Proximitor sensor. When properly installed, this transducer is fully compatible with Bently Nevada's 3300, 3500, and Orbit 60 monitoring systems that support the 3300 XL 8 mm transducer input. The assembly's ability to measure both dynamic vibration (detecting imbalances and misalignment) and axial position (preventing catastrophic thrust bearing failures) provides comprehensive machine condition data that forms the foundation of any robust asset protection strategy.
