General Information

Core Description

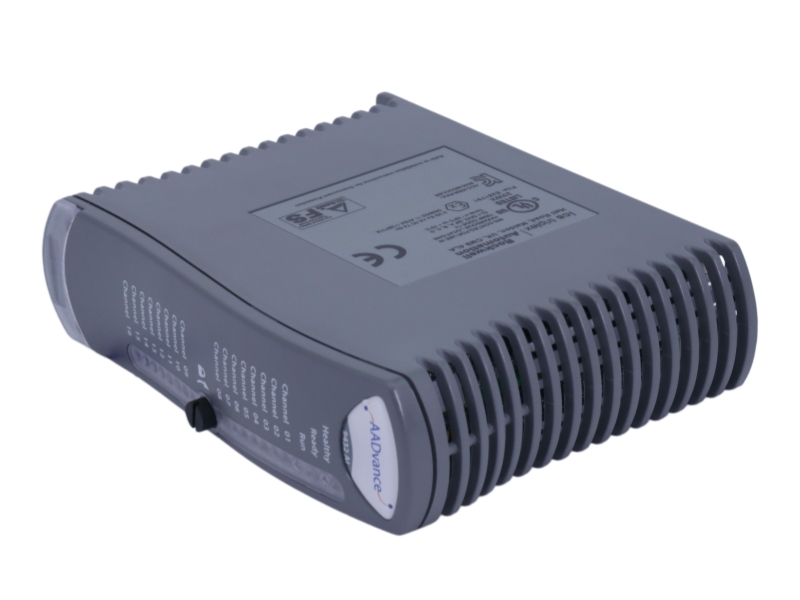

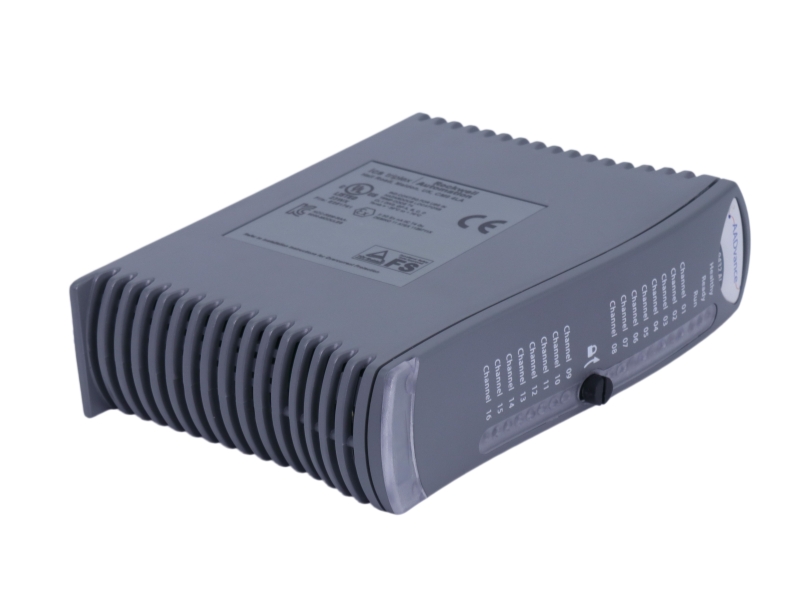

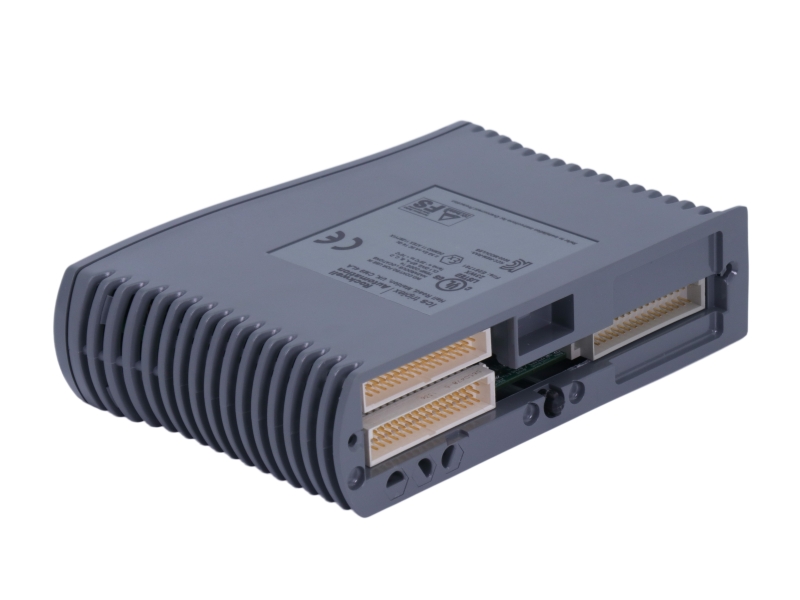

Engineered for functional safety and high-availability process control, the T9432 is a 24 Vdc, 16-channel isolated analogue input module designed for the Rockwell Automation AADvance safety controller system. It provides high-precision signal conditioning and digital conversion for standard field loops with a strict safety accuracy limit of 200 µA. The module supports dynamic hardware clustering, allowing seamless scaling from simple fail-safe simplex topologies up to fault-tolerant Dual (1oo2D) or Triplicated (2oo3) Triple Modular Redundant (TMR) safety architectures without logic modifications .

Specific Application

• Emergency Shutdown Systems (ESD): Monitoring critical 4-24 mA process parameters where a sudden de-energize-to-trip sequence must protect human and environmental assets.
• Fire and Gas (F&G) Detection Networks: Multiplexing high-reliability flame, smoke, and toxic gas sensor inputs across safety-instrumented functions.
• Burner Management Systems (BMS) & Boiler Control: Real-time tracking of fuel pressures, draft flows, and furnace temperatures under certified IEC 61508 SIL 3 operational limits.

Ordering Information

System Compatibility

• System & Software Interfacing: The T9432 fully integrates with the T9300 I/O Backplane and interfaces directly with T9110 Processor Modules over a secure proprietary internal bus. Configuration is managed via AADvance Workbench (v1.4 / v2.x) or AADvance-Trusted SIS Workstation software environments
• Field Termination Pairings: To build a complete functional loop, the T9432 must be paired with its dedicated termination assemblies: T9831 (Simplex), T9832 (Dual), or T9833 (TMR), utilizing mechanical polarization keying pegs to prevent incorrect module mating.
• Direct Legacy Alternate: T9431 (Legacy AADvance Analogue Input Module).
• Key Differences from Alternate (T9432 vs. T9431):While both options share identical visual footprints, standard environment specs, and high-level software support, the T9432 is a full 16-channel isolated module offering channel-to-channel and channel-to-chassis isolation (withstanding up to 1.5 kVdc for 1 minute). In contrast, the legacy T9431 offers fewer channels or restricted galvanic group-isolation configurations, making the T9432 much more resilient against localized field ground loops and electrical surge degradation.

Installation & Troubleshooting FAQ

Q1: How does the interlock mechanism affect hot-swapping or deploying a T9432 module on-line?

A1: Every T9432 features an integrated front-panel locking screw clamp. The module internally senses the position of this locking device. If the screw is not turned a quarter-turn into its designated locked icon position, the module acts as a safety interlock and will refuse to go on-line or accept field variables, preventing accidental live insertion faults.

Q2: How do I verify the module's target performance regarding scan times when scaling from Simplex to TMR?

A2: The standalone baseline processing scan time for a T9432 shifts depending on your configured redundancy layer. A Simplex module group executes at 1.170 ms, a Dual group at 1.965 ms, and a Triple (TMR) group takes 2.656 ms. To calculate total system loop scan overhead, you must add the minimum system cycle time (39.3 ms), the specific module sync coefficient (e.g., 24 ms for 21-30 modules), and 0.04 ms multiplied by the absolute volume of modules present.

Q3: What specific environmental constraints must be followed when installing the T9432 in a certified hazardous environment?

A3: For ATEX/IECEx compliance (Marking: Ex ec IIC T4 Gc), the T9432 must be mounted strictly within a vertical orientation inside a tool-accessible, IP54-rated enclosure evaluated to EN IEC 60079-0/7 standards. The surrounding micro-environment must not exceed Pollution Degree 2 (no conductive moisture layers), the ambient storage/run air must be kept between -25 °C and +60 °C, and all system field wiring conductors must possess a minimum temperature endurance rating of 85 °C.
