General Information
| Model number | 05701-A-0301 |
| Country of origin | USA |
| Condition | Brand New |
| Dimension | 2.5x17x12.8cm |
| Weight | 0.2kg |
| Lead time Warranty | in stock |
| MOQ | 1 pcs |
Feature & Value-Driven

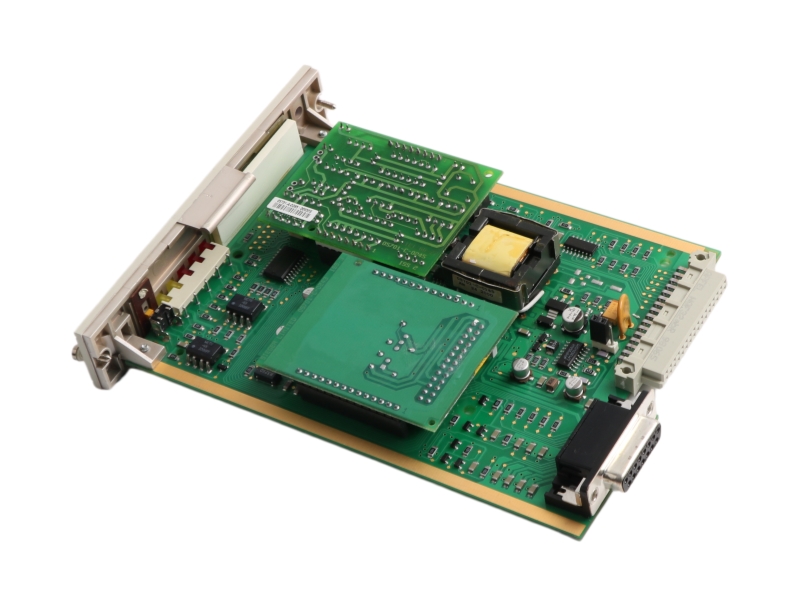

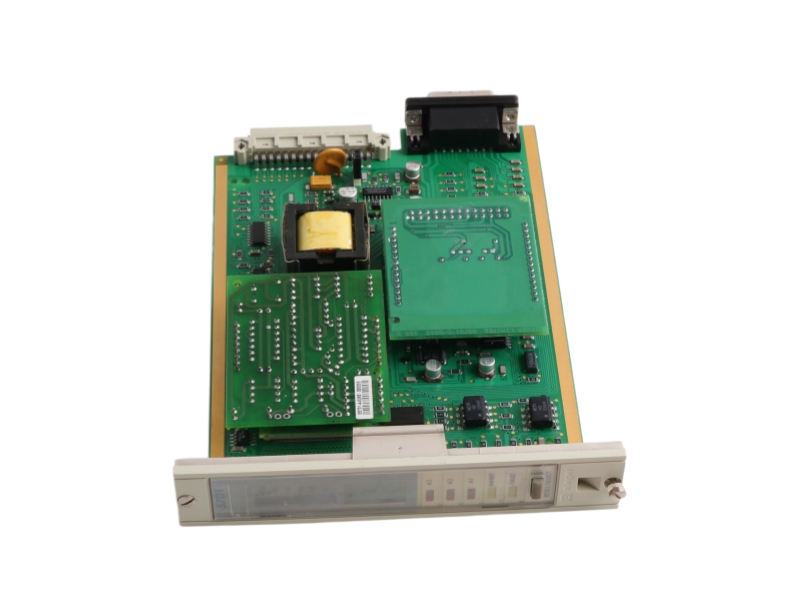

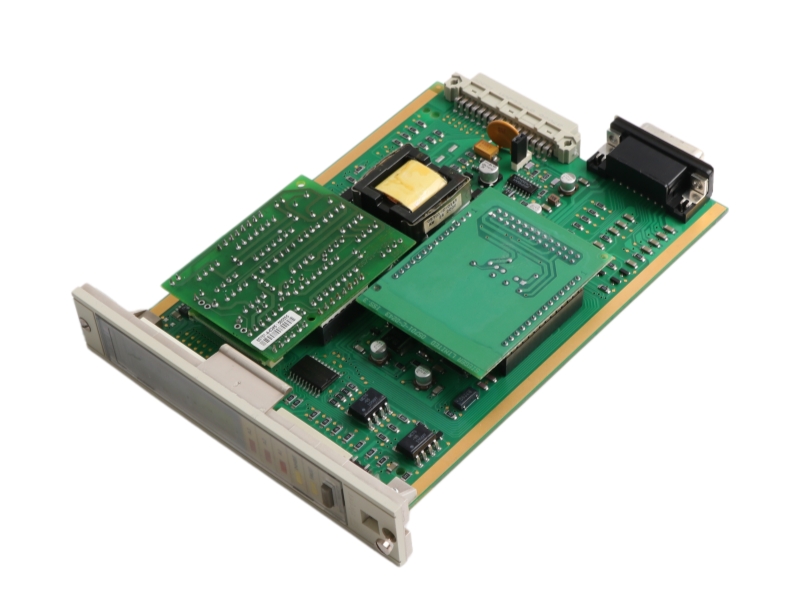

The 05701-A-0301 is a Honeywell Sieger System 57 microprocessor-based single-channel control card featuring 4-20mA input connectivity. Fully compatible with standard System 57 3U sub-racks, this unit works seamlessly with industrial 4-20mA gas detectors to deliver independent channel monitoring, clear local LCD gas readings, and high-integrity alarm handling without disrupting adjacent wiring.
Specific Application
Ordering Information
|
Part Number |
Description |
Component Type |
|
05701-A-0301 |
Single Channel Control Card 4 - 20mA (Includes pre-fitted 4-20mA Sensor Drive Module) |
Core Control Component |
|
05701-A-0283 |
Sensor Drive Module, 4 - 20mA |
Factory-Fitted Spare/Module |
|
05701-A-0285 |
Analogue Output Module (Optional plugin for isolated 0/4-20mA loop mirroring) |
Optional Add-on Module |
System Compatibility
· Sub-Racks: Fits directly into the standard 19-inch 3U/6U racks (05701-A-0511, 05701-A-0501) and half 19-inch racks (05701-A-0512, 05701-A-0502).
· Core Cards: Operates in conjunction with the System 57 Engineering Card (05701-A-0361) and DC Input Card (05701-A-0325).
· Field Interfaces: Interconnects via the backplane or short cables to Field Interface Cards (05701-A-0326) or standard Relay Cards (05701-A-0327, 05701-A-0328, 05701-A-0329, 05701-A-0330).
· Sensor Inputs: Accepts input from any standard 4-20mA industrial gas detector transmitter via the factory-fitted 4-20mA Sensor Drive Module (05701-A-0283).
Substitute Model & Technical Differences
· Alternative Model: Single Channel Control Card Catalytic (Part Number: 05701-A-0302).
· Key Differences:
o Input Signal: The 05701-A-0301 is dedicated to 4-20mA current loop signals, whereas the 05701-A-0302 is engineered for Catalytic Bridge sensor inputs.
o Sensor Drive Module: The 05701-A-0301 comes factory-fitted with the 4-20mA Sensor Drive Module (05701-A-0283), while the 05701-A-0302 uses the Catalytic Sensor Drive Module (05701-A-0284) to generate specialized bead-driving currents.
Installation & Troubleshooting FAQ
Q1: How do I select an individual 05701-A-0301 card to perform calibration or adjustment through the Engineering Card?
A: Press the front panel RESET/SELECT push-button on the specific 05701-A-0301 card you want to target. This establishes a communication link across the rack backplane, allowing the shared Engineering Card to interrogate the channel, view live values, or apply zero/span adjustments.
Q2: Can I remove or swap a 05701-A-0301 Control Card while the remaining channels in the rack are operating?
A: Yes. The System 57 single-channel architecture treats each control card independently. You can pull or insert a Channel Control Card from the front format slot without disrupting the power supply or field wiring connections of any other operating channels.
Q3: What is the purpose of the Analogue Output Module connector on the 05701-A-0301 board?
A: The connectors J3 and J4 allow you to plug in an optional Analogue Output Module (05701-A-0285). When installed, it provides an isolated remote current loop (0-20mA or 4-20mA) that matches the live gas reading, perfect for wiring into external data loggers, PLC systems, or chart recorders.
Q4: The "FAULT" LED on my 05701-A-0301 front panel is illuminated. What does this mean?
A: The card features built-in self-validation. A FAULT state indicates that the microprocessor has detected an anomaly during its circuit component check, a software execution stall, a communication failure on the backplane, or an out-of-bounds electrical condition from the connected 4-20mA gas sensor. Check the field loop wiring and verify the sensor's baseline current.
Q5: How do I configure or modify the alarm thresholds on the 05701-A-0301 card?
A: Basic set point checks can be executed directly using the tactile push-buttons on the Engineering Card once the channel is selected. For deeper, more complex software setup configurations, connect a PC to the Engineering Card's RS232 link and utilize the dedicated engineering interface software to update the parameters stored in the card's non-volatile EEPROM.
