General Information

Feature & Value-Driven

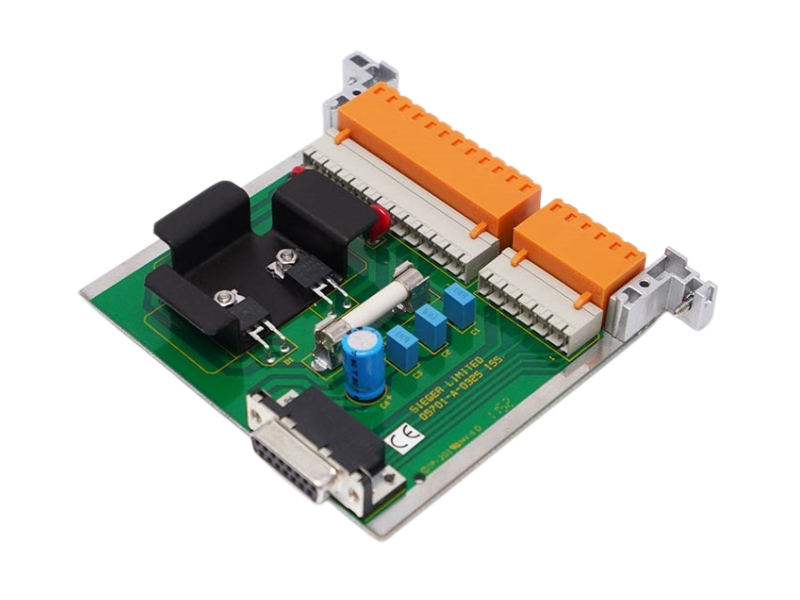

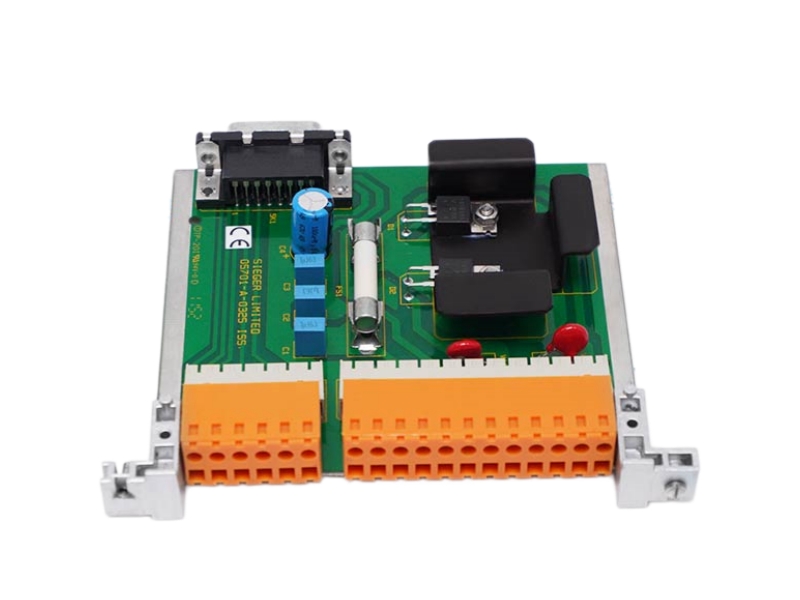

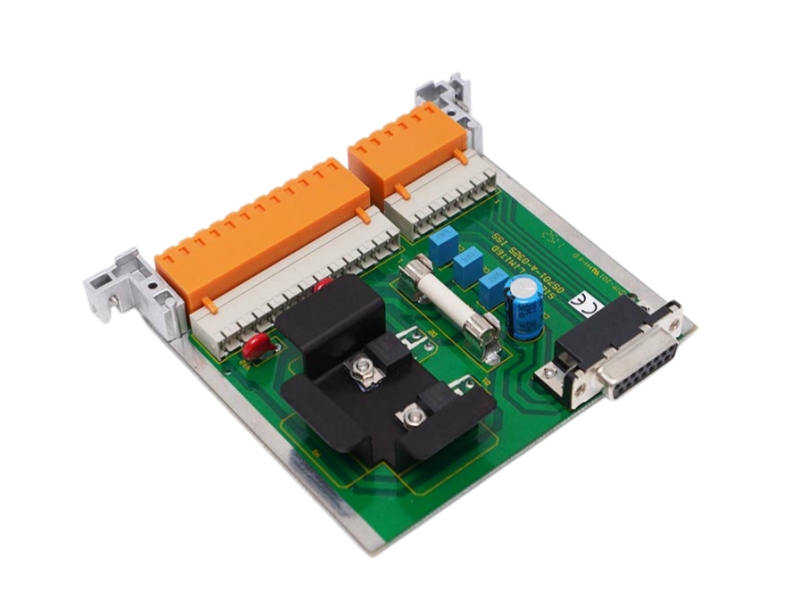

The 05701-A-0325 is a Honeywell Sieger System 57 high-utility DC power distribution and interface module featuring dual-source line connectivity. Fully compatible with standard System 57 backplanes, this unit works seamlessly with industrial 24V DC power sources to deliver secure fuse protection, built-in RFI ripple suppression, and independent auxiliary battery backup ports to maintain non-stop rack communication.

Specific Application

• Centralized Sub-Rack Power Feeding: Supplying continuous nominal 24V DC power from main plant sources to drive up to 16 channels of hazardous gas control cards within a single enclosure.
• Standby Battery Backup Interface: Connecting standby battery packs to alternative secondary terminal inputs to guarantee immediate, fail-safe system takeover during main line utility cutouts.
• Electrical Safety & Signal Isolation: Protecting sensitive microprocessor circuits on adjacent tracking cards from localized over-current spikes, reverse-polarity human wiring errors, and field electromagnetic noise.

Ordering Information

System Compatibility

· Racks & Backplanes: Slides into specialized rear or front terminal allocation frames on full-width 19-inch sub-racks and compact half-width 9-slot sub-racks.

· Internal Control Modules: Interoperates directly with the system Engineering Card to distribute managed power to up to 8 or 16 single-channel control cards.

· External Power Blocks: Couples directly via cable assemblies to Honeywell 50W and 100W switched-mode AC-to-DC power converter sub-units.

Substitute Architecture & Technical Differences

· Alternative Method: Direct Discrete Control Card Powering (Individual wire connections directly landing on corresponding high-integrity terminal interface modules instead of a centralized card).

· Key Differences:

o Power Architecture: The 05701-A-0325 cards handle power on a centralized, shared-backplane scale where one primary card distributes lines to all adjacent control cards. Direct discrete wire paths isolate input currents to one single loop layout.

o Fault Protection Isolation: Centralized cards utilize a single shared fuse assembly on the primary distribution point, whereas independent channel feeds isolate loop short circuits to the affected channel, leaving other rack lines unaffected.
