General Information

Core Description

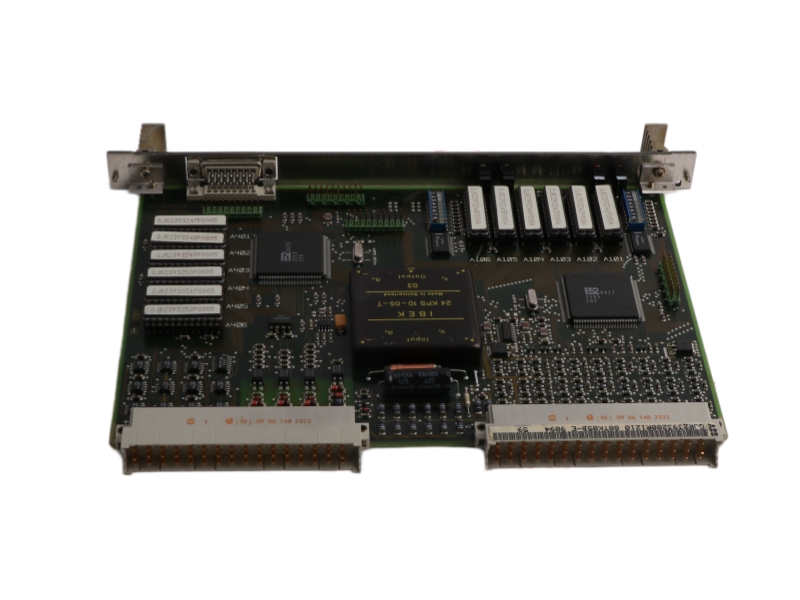

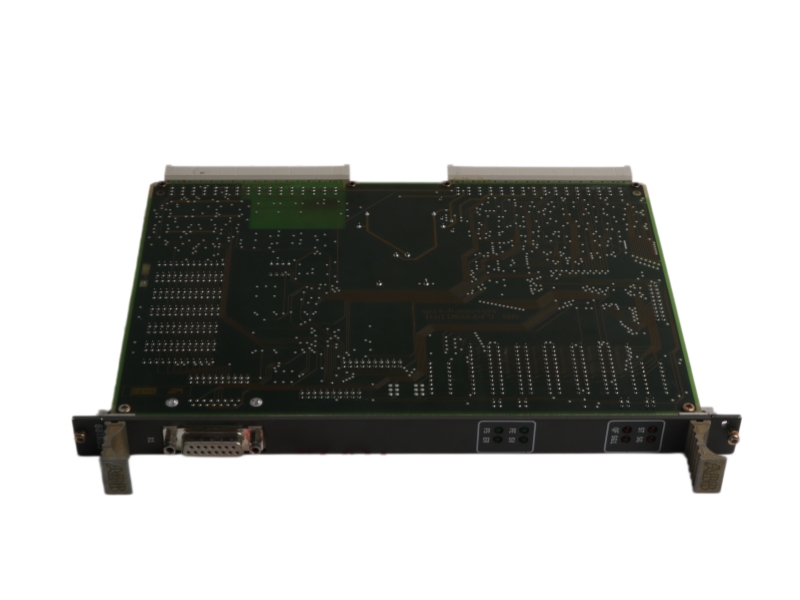

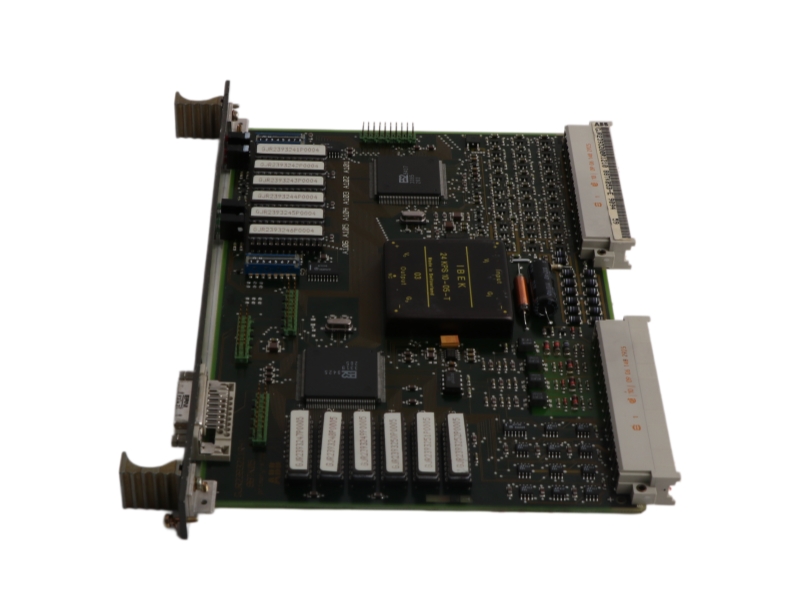

The GJR2393200R1210 is a high-performance ABB PROCONTROL P station-bus coupling module featuring multi-interface connectivity. Fully compatible with standard station backplanes, this unit works seamlessly with the 88FT05 remote-bus module to deliver flexible protocol routing and stable industrial network communication.

Competitive Advantage

• Dual-Channel Bumpless Redundancy: Integrates a dedicated front-panel connection interface supporting synchronized, dual-channel station coupling. The module cycles protocol authority every two system cycles, providing instant, automatic fault isolation without process disruption.
• Autonomous Mode Fallback: Automatically switches to an autonomous master control protocol if remote bus communication drops for more than 100 milliseconds. This local execution safeguard guarantees uninterrupted data exchange across internal station devices.
• Comprehensive Diagnostic Memory: Incorporates two primary real-time diagnosis registers alongside seven background registers to track telegram content plausibility, checksum validations, and component status for fast fault isolation.

System Compatibility & Alternatives

• System Compatibility: The module is designed for the ABB PROCONTROL P system. It establishes direct communication over the serial station bus and interfaces with the 88FT05 remote-bus coupling module via RS485 and dedicated data links. Error-free telegram transfer with adjacent station modules is verified for hardware manufactured after 1987 (serial numbers 9xx8 and higher).
• Alternative Model: 88TK05-E/R1110
• Difference from Alternative: The GJR2393200R1210 (R1210 revision) features an upgraded hardware lifecycle component configuration and refined internal firmware PROMs compared to the legacy R1110 variant. The newer revision offers improved diagnostic register stability, higher electro-static discharge (ESD) immunity up to 8 kV at the front panel, and enhanced error-checking algorithms for modern power plant environments.

Installation & Troubleshooting FAQ

Q1: How do I configure the station and system addresses on this module during deployment?

A: Addresses are configured manually using hardware DIP switches S1 and S2 located on the printed circuit board. Switch S1 designates the unique station address, while switch S2 defines the module address (60 or 61), system address, and sets the operating mode between autonomous station (AS) and remote bus (FB).

Q2: What do the red front-panel status LEDs indicate during a communication failure?

A: Red LEDs indicate localized system faults: ST illuminates for general module or communication disturbances; SG indicates internal hardware defects; SG1 signals a transmission path fault between the 88TK05 and 88FT05; and QF indicates corrupted telegram reception from the remote bus.

Q3: What step must be performed before removing this module from a dual-channel redundant rack?

A: You must disconnect the 15-pin redundancy cable from the front panel jack connector before pulling the module from its slot. Removing the module before disconnecting the front interface can disrupt the active partner card and cause a total station communication failure.

Q4: Why am I getting an "Operating mode setting wrong" or "Partner module fault" indication on my console?

A: These errors point directly to mismatched configuration settings on DIP switches S1 and S2. In dual-channel installations, both modules must be configured with identical system addresses, station addresses, and operating modes, but assigned distinct module addresses (60 and 61).

Q5: What are the input criteria for the potential-isolated cabinet monitoring interface?

A: The module provides three distinct inputs on connector X21: G12 uses a closed-circuit principle to monitor cabinet power supply failure; G22 monitors cabinet temperature thresholds via a thermostat link; and G32 acts as an open-circuit input for cabinet door security monitoring.
