General Information

Core Description

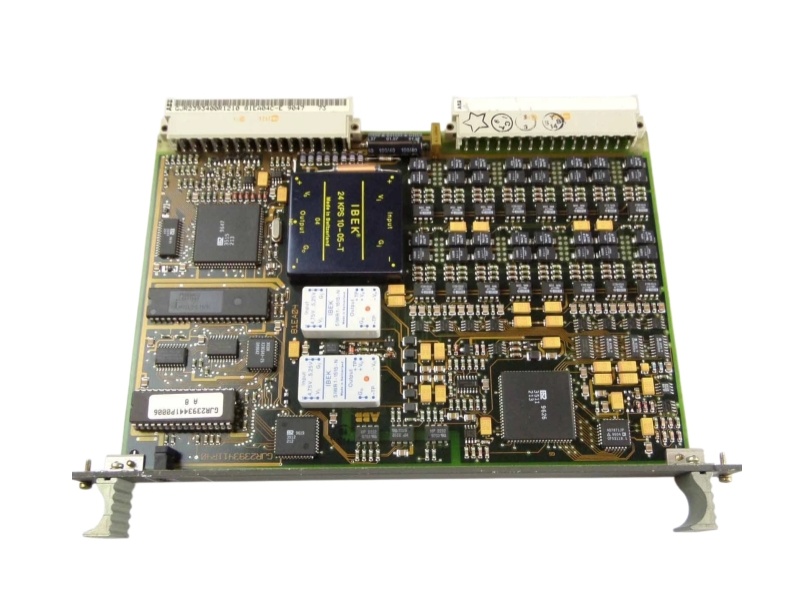

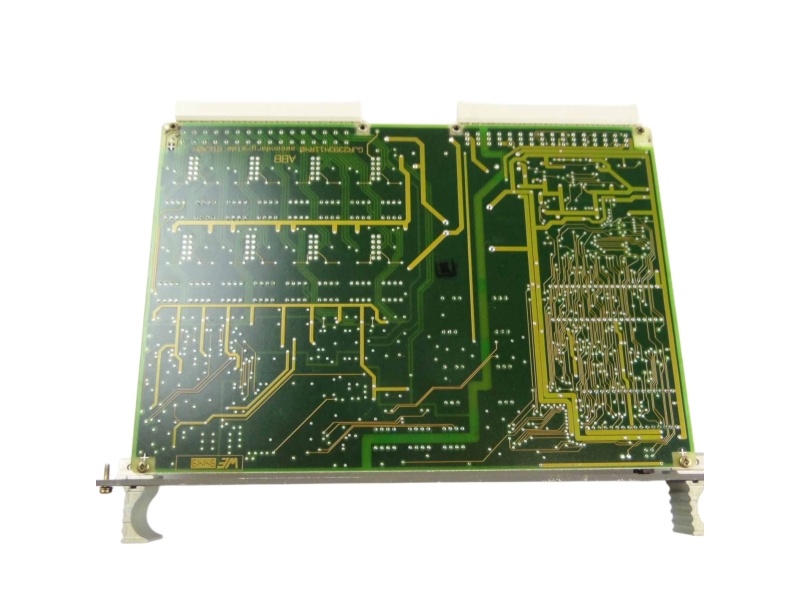

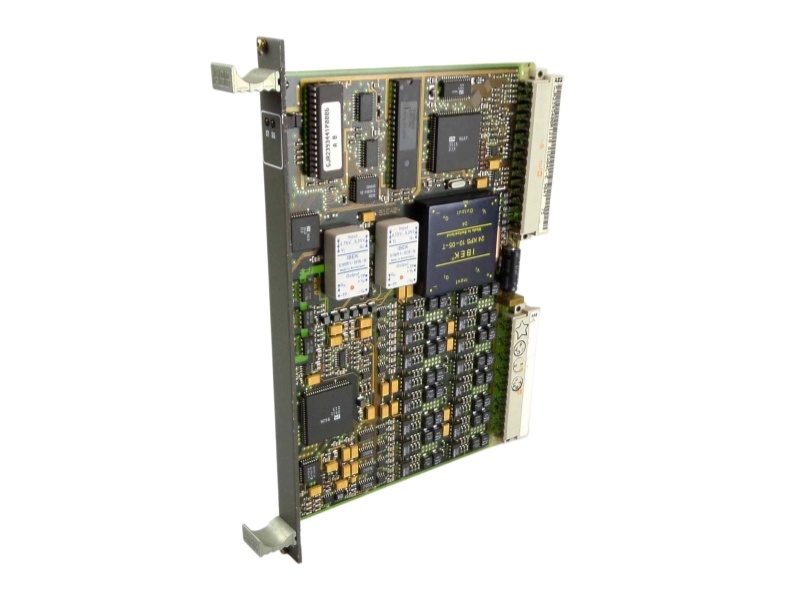

The GJR2393400R1210 is a high-performance ABB Procontrol P14 analog input module featuring specialized instrumentation channels. Fully compatible with standard station backplanes, this 81EA04C-E unit works seamlessly with industrial distributed control topologies to deliver flexible telemetry routing and stable sensor-to-bus network communication

Competitive Advantage

• Advanced Harmonic Rejection: Incorporates specialized low-pass multi-stage active filters and a delta-sigma conversion matrix that filters electrical noise and structural carrier harmonics common in high-voltage switchgear corridors.
• High-Accuracy Reference Stability: Features a low-drift voltage reference layer that preserves analog-to-digital measurement integrity over a wide range of processing enclosure configurations, removing the need for frequent field recalibrations.
• Galvanic Per-Channel Isolation: Employs optoelectronic boundary barriers separating the raw field monitoring lines from the internal processing data bus, protecting critical central logic networks against high-energy field transients.

System Compatibility & Alternatives

• System Compatibility: The module is designed for the ABB Procontrol P14 power generation and utility automation system rack topologies. It communicates over parallel and serial station bus networks and interfaces directly with central processing units via standard system protocol calls.
• Alternative Model: 81EA04-E/R1110
• Difference from Alternative: The GJR2393400R1210 (81EA04C-E / R1210 revision) introduces factory-updated surface-mount internal component trees and firmware PROMs compared to the legacy R1110 product variant. This revision delivers lower overall thermal dissipation, higher resistance to electromagnetic burst fields, and faster background diagnostic calculation rates for better process line reliability.

Installation & Troubleshooting FAQ

Q1: What are the primary analog input configuration ranges and channel parameters supported by this card?

A: The hardware handles multi-channel instrumentation lines. Depending on the onboard jumper layout, it can be adjusted to convert standard industrial current inputs (such as 0-20 mA or 4-20 mA) and voltage telemetries into proportional digital words for the backplane data bus.

Q2: How does the system indicate a sensor open-circuit loop or raw signal failure on this module?

A: Individual channel loops are monitored continuously. If a wire breaks or a sensor circuit fails, the module generates a dedicated "Signal Disturbed" flag in its real-time diagnostic register. This activates the red general disturbance LED on the front panel and alerts the main monitor console.

Q3: What step is mandatory to perform on the field terminal block before hot-plugging this analog card?

A: You must confirm that field sensor inputs are fully isolated or shorted across their designated testing points before inserting the card. Hot-plugging a module into active current loops without settling the field lines can create high voltage transients that risk degrading the input multiplexer components.

Q4: Why does the module indicate active logic processing but display zero value telemetry readings on the monitoring network?

A: This issue is typically caused by an internal logic address conflict or an incorrect slot assignment. Ensure the module's station address jumpers match your system configuration parameters; mismatched variables can prevent the central processor from gathering digitized values from the card.

Q5: What are the cooling and environmental clearance guidelines required when packing multiple cards?

A: This module features standard P14 mechanical dimensions, requiring regular 6-unit rack divisions. In dense control environments with high channel counts, you must ensure a minimum clear space of 10 cm above and below the card chassis to support natural convective cooling and keep internal components within stable operating temperatures.
