General Information

Core Description

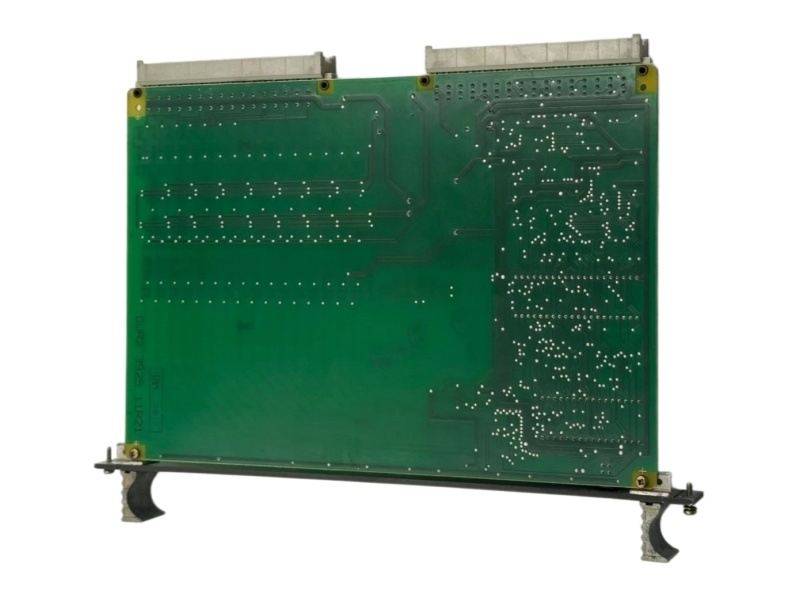

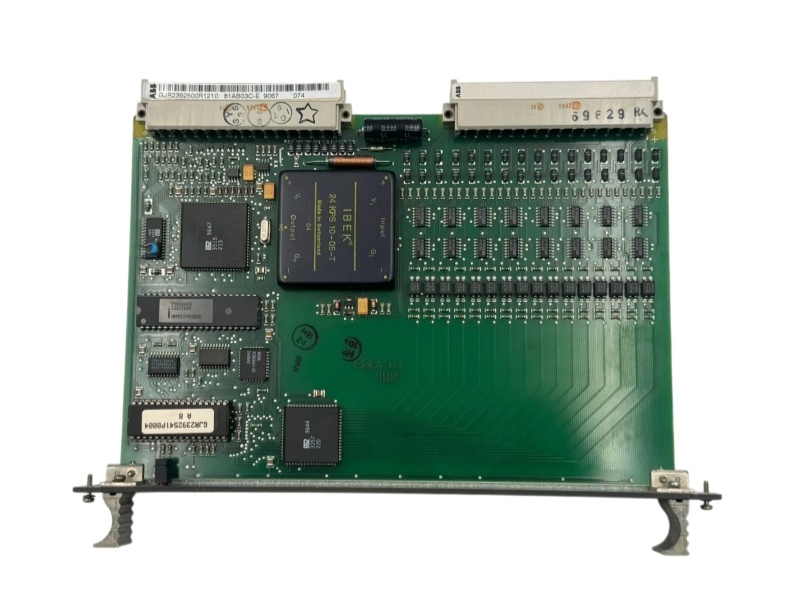

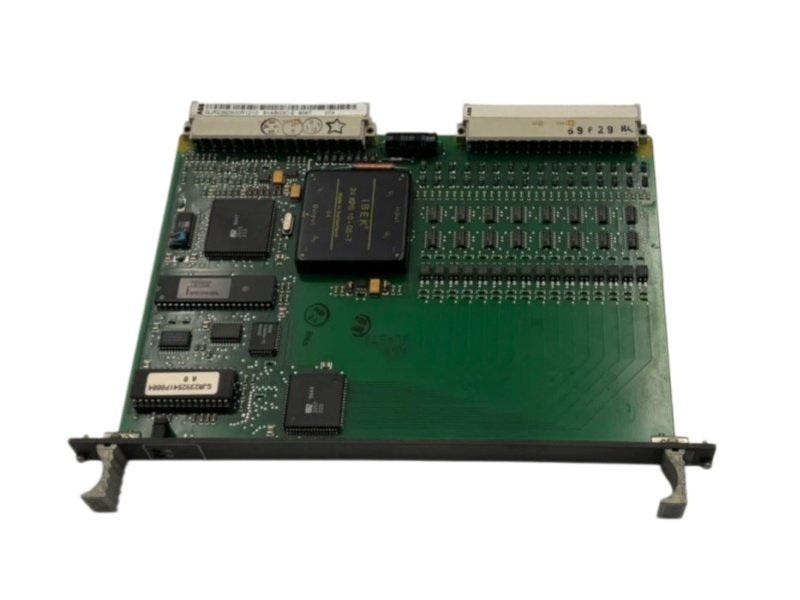

The GJR2392500R1210 is a high-performance ABB Procontrol P14 binary output module designated as 81AB03C-E, featuring 16 independent digital output channels. Fully compatible with the Procontrol P14 control system backplane, this unit works seamlessly with automated logic networks to deliver flexible field device activation and stable electronic input communication.

Specific Application

• Activating electronic control inputs, interposing relays, and status lamps inside heavy-duty power plant automation cabinets.
• Executing automated logic signaling loops within the ABB Procontrol P14 decentralized control architecture.
• Driving low-power external binary loads up to 100 mA per channel in power generation and utility control infrastructures.

System Compatibility & Alternatives

• System Compatibility: This binary output module is fully compatible with the ABB Procontrol P14 control system bus architecture. It integrates directly into P14 I/O racks alongside matching controllers and processors.
• Alternative Models: 81AB01R1010, 81AB10R0100, and 81AB10R0200.
• Difference from Alternatives: The 81AB03C-E (built under basic designation 81AB03) serves as a direct functional replacement and technical lifecycle upgrade for legacy variants (81AB01 and 81AB10 series). It features modernized processing components, improved channel isolation, and enhanced thermal profiles to replace obsolete configurations without requiring logic adaptations.

Installation & Troubleshooting FAQ

Q1: What are the exact voltage and current rating specifications for each individual channel?

A: Each of the 16 independent binary output channels is rated to drive a nominal 24 Vdc load. The maximum allowed continuous current draw per digital output (DO) channel is strictly 100 mA to prevent internal component damage.

Q2: Can I hot-swap this output module inside an active Procontrol P14 rack?

A: Hot-swapping is physically possible due to the slot guide configuration, but it is not recommended without proper system bypass. Removing an active module will drop all 16 digital outputs to a de-energized state, which can trigger safety shutdowns or trip external interlocking relays.

Q3: What causes an individual binary channel to fail to output 24 Vdc when logic commands are active?

A: This is typically caused by an external short circuit or overload exceeding the 100 mA threshold. Internal protection circuits or fuses on the board isolate over-current faults; check the field wiring loop resistance before resetting or replacing the card.

Q4: How do the physical dimensions and weight affect high-density rack layout planning?

A: This module features standard P14 dimensions: a depth of 198 mm, a height of 261 mm, and a thin width of 20 mm. Weighing exactly 0.55 kg, its slim profile enables dense adjacent card tracking along the backplane rail without risking physical interference.

Q5: Is additional diagnostic testing required after installing a new module to verify backplane bus communications?

A: No manual testing is necessary because the module auto-identifies upon insertion into a valid slot. Check the central Procontrol P14 diagnostic monitor console to ensure the module's 16 binary channels are recognized and that no bus communication errors are active.
