General Information

Core Description

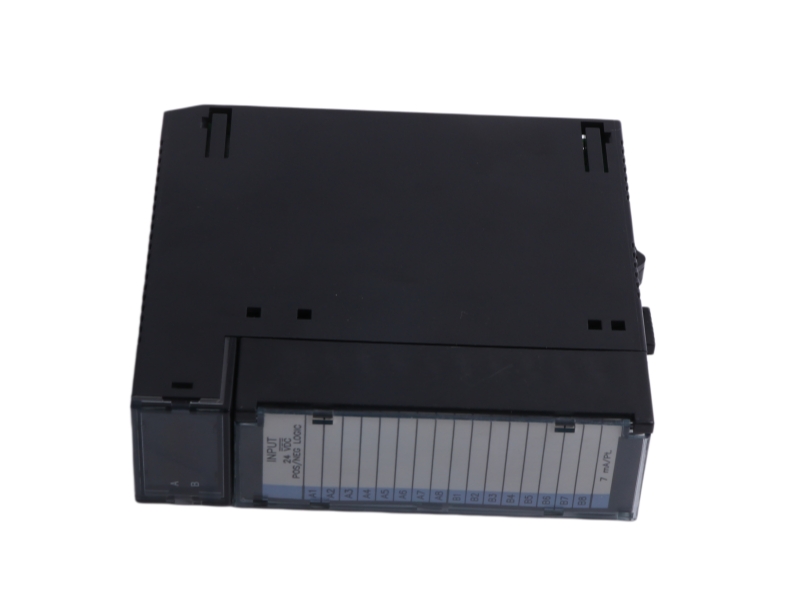

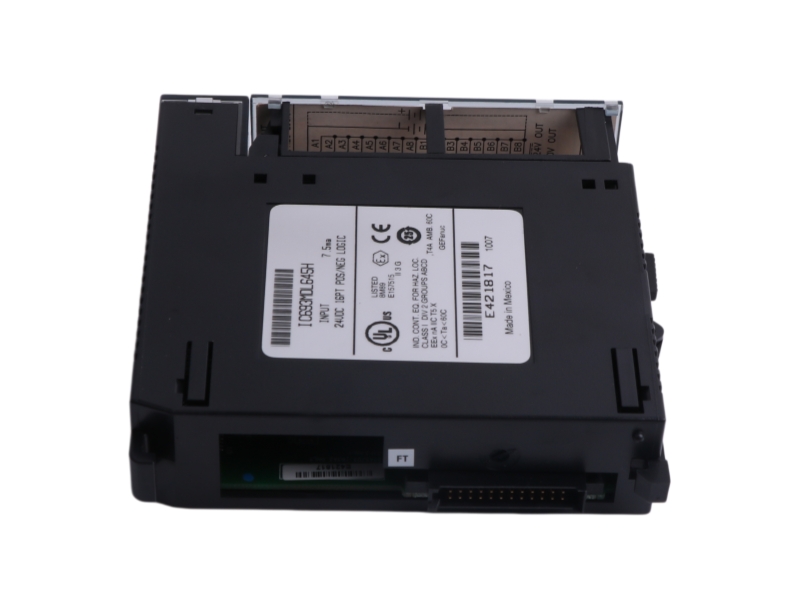

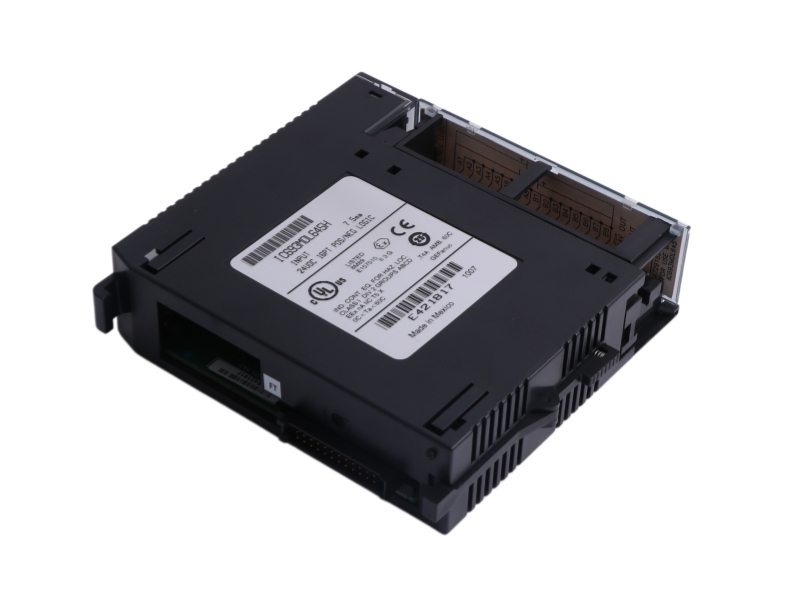

The IC693MDL645 is a versatile GE Fanuc discrete automation module featuring 16 input points arranged in a single common group. Fully compatible with the Series 90-30 backplane, this unit operates on a 24 VDC threshold and functions seamlessly with either sink or source wiring configurations to deliver flexible positive/negative logic handling and reliable sensor connectivity across industrial environments.

Specific Application

• Interfacing field status monitoring devices such as pushbuttons, limit switches, and electronic proximity sensors into a centralized PLC logic table.
• Operating inside variable-temperature factory zones requiring continuous full-point operation up to a maximum threshold of 60 degrees Celsius.
• Implementing compact standalone automation stations where control electronics utilize an integrated isolated 24 VDC power supply directly from the backplane rack.

Ordering Information

System Compatibility

• Baseplate Integration: Fully compatible with any standard I/O slot inside a 5-slot or 10-slot Series 90-30 PLC baseplate.
• Logic-Side Interface: Connects natively via the backplane bus to update the internal input status table using 80 mA from the 5 VDC bus line.
• Field-Side Interface: Compatible with a wide variety of user-supplied or system-supplied 24 volt binary sensors.
• Alternative Models & Functional Differences
• IC693MDL645 (This Module): Features a single electrical common terminal shared across all 16 input points, requiring all attached field circuits to operate under the same positive or negative reference polarity.
• Dedicated Positive Logic Only Modules: Designed exclusively for sourcing devices where current flows into the module input point from the positive voltage line, failing to recognize signals if rewired for negative sinking layouts.
• Dedicated Negative Logic Only Modules: Designed exclusively for sinking devices where current flows out of the input point toward the negative common line, incompatible with positive logic sourcing hardware.

Installation & Troubleshooting FAQ

Q1: What is the primary functional difference between positive logic and negative logic settings on this module?

A: The module accommodates both configurations based on electrical current flow. Wiring for positive logic means an input point receives current from a field device to register an ON state, while negative logic means current flows out of the input point toward the active field device to register an ON state.

Q2: What are the electrical threshold specifications for a verified signal transition?

A: To guarantee a logical true state, the on-state parameters require a voltage between 11.5 and 30 VDC with a minimum current of 3.2 mA. To guarantee a logical false state, the off-state parameters require a voltage under 5 VDC or a maximum residual current below 1.1 mA.

Q3: Can the PLC power supply drive all field sensors attached to the terminal strip?

A: The integrated isolated 24 VDC power supply terminals can drive field devices, but they possess power limitations. For high-density wiring layouts where up to 16 inputs remain simultaneously active, an external user-supplied power source is recommended to handle the cumulative current load.

Q4: How much physical isolation exists between high-voltage field wiring and the internal PLC logic components?

A: The module incorporates built-in optical couplers on every input loop, providing up to 1500 volts of electrical isolation to safeguard low-voltage backplane microprocessors from field-side voltage spikes or transient line noise.

Q5: How do ambient surrounding temperatures impact the concurrent channel capacity?

A: The module sustains an unrestricted load profile across standard industrial environments. According to the technical thermal curves, field operators can run all 16 input points simultaneously at the maximum 30 VDC threshold throughout ambient room temperatures up to 60 degrees Celsius.
