General Information

Core Description

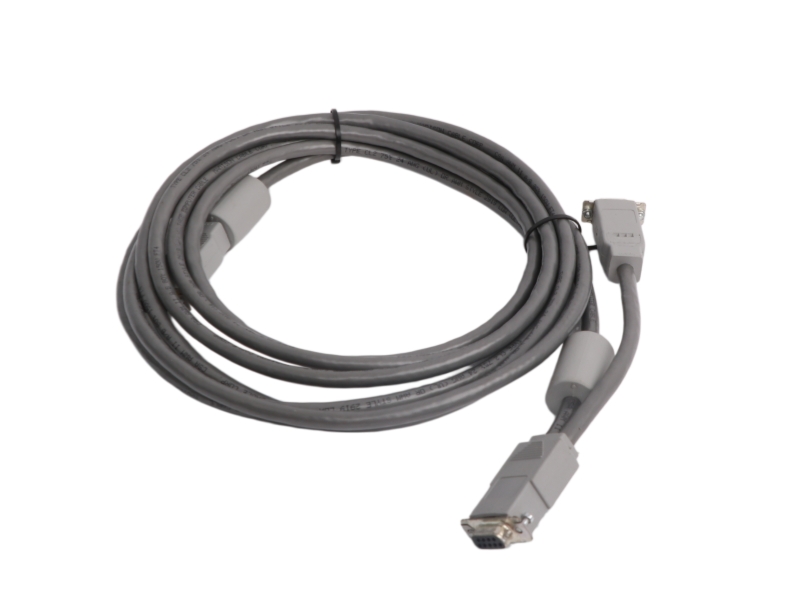

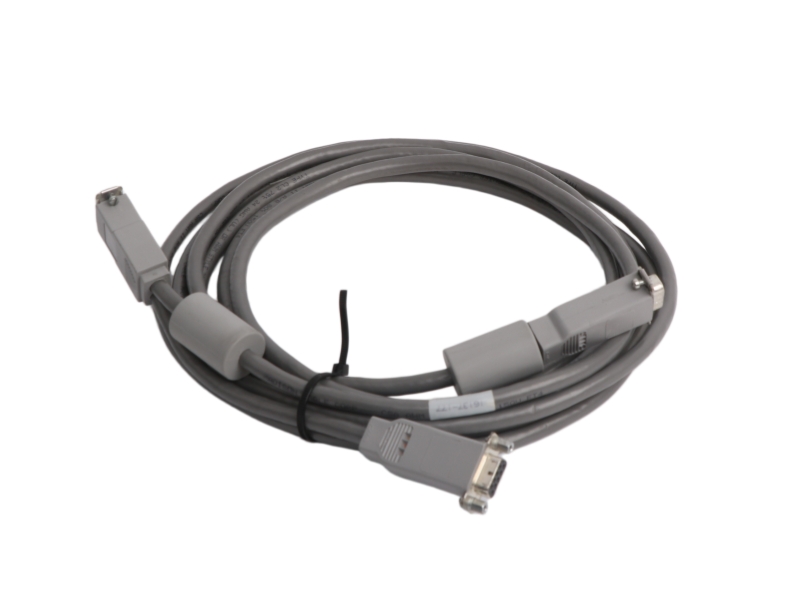

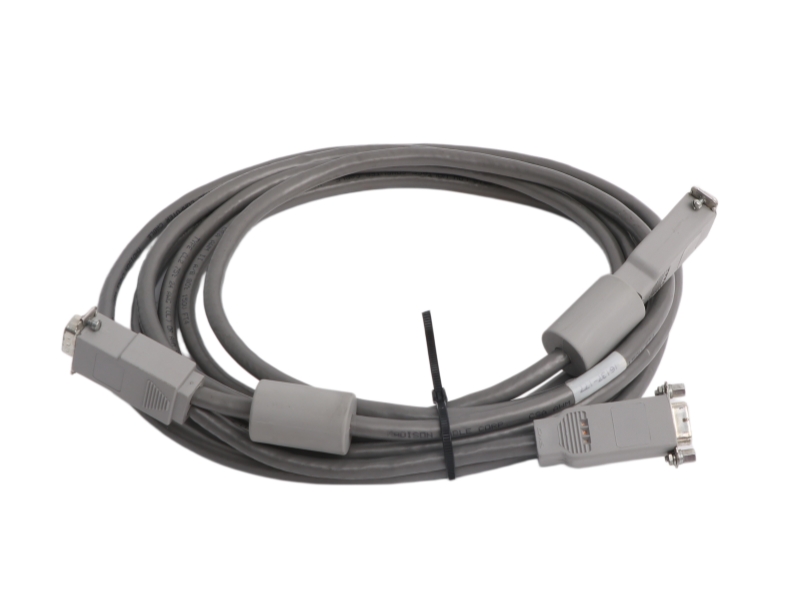

The 16137-174 is a high-integrity, heavy-duty redundant Module Bus Interface (MBI) cable assembly tailored specifically for the Siemens Moore APACS+ Distributed Control System (DCS). Functioning as the dedicated A-Side connection link, this 4-meter cable establishes an fault-tolerant channel between redundant Advanced Control Modules (ACM). It works seamlessly within critical high-availability infrastructure to deliver uninterrupted real-time variable mapping, eliminating transmission jitter and protecting multi-node factory processing plants against split-brain controller failure states.

Specific Application

• Redundant Controller Interconnection: Links a pair of active/standby Advanced Control Modules (ACM to ACM) across the localized backplane M-Bus network.
• Industrial DCS Fault Isolation: Serves as the primary, physically isolated A-Side communication bridge to maintain continuous processing operations if the parallel B-Side link degrades.
• Synchronous Task Mirroring: Carries time-critical logic synchronization frames and state variables across process automation panels in oil refining and chemical processing sectors.

Ordering Information

System Compatibility

Controller Framework: Built for proprietary Siemens Moore APACS+ and APACS communications module systems.

Hardware Interlinks: Mapped specifically to interface with matching male/female M-Bus sockets found on ACM rack architectures.

Network Protocols: Fully supports low-latency, synchronous token passing inherent to the core APACS Module Bus (M-Bus) backplane topology.

Alternative Models & Functional Differences

16137-175 (B-Side Redundant Cable): The complementary hardware piece necessary to finish a complete dual-redundant topology. While the 16137-174 controls the primary A-Side traffic pathway, its B-Side sister cable runs on a separate path to guarantee automated failover coverage if the physical A-Side routing encounters structural damage.

16137-173 (Shorter Variance Jumpers): Shorter distance module connection cables (e.g., 1-meter or 2-meter variants). These smaller assemblies share identical shielding metrics but are physically restricted to adjoining adjacent slots, unlike the extended 4-meter footprint of the 16137-174 which allows routing across distinct enclosure bays.

Installation & Troubleshooting FAQ

Q1: What mechanical strain precautions are required when routing this 4-meter MBI cable across cabinet partitions?

A: When pulling the cable between distinct racks, you must enforce a minimum bend radius of at least ten times the cable diameter to prevent inner core copper fatigue. Utilize dedicated wire tracking channels inside the cabinet and avoid running the cable tightly against sharp metal edge frames. Secure both industrial-grade thumb-screw terminal heads tightly to prevent physical vibration decoupling.

Q2: The APACS+ diagnostic utility reports an "M-Bus A-Side Communication Loss" warning. How do I troubleshoot this issue?

A: This signal indicates a breakdown along the primary network segment. Check both ends of the 16137-174 cable to confirm the connector heads are fully locked into their matching ACM interface sockets. Inspect the physical run for crimps, crush points, or exposure to excessive heat. Swap the cable with a verified functional unit to isolate whether the fault stems from the cable assembly or the internal transceiver circuits of the host ACM module.

Q3: Can the 16137-174 cable be safely unplugged and swapped while the attached ACM controllers are actively running?

A: Yes, if your APACS+ DCS system configuration has a fully operational B-Side redundant link (via a 16137-175 assembly). The system's active control architecture will seamlessly hold production logic on the secondary channel while you replace the A-Side link. Do not attempt a hot-swap if the diagnostic dashboard signals any standing errors or data delivery faults on the B-Side channel.
