General Information

Core Description

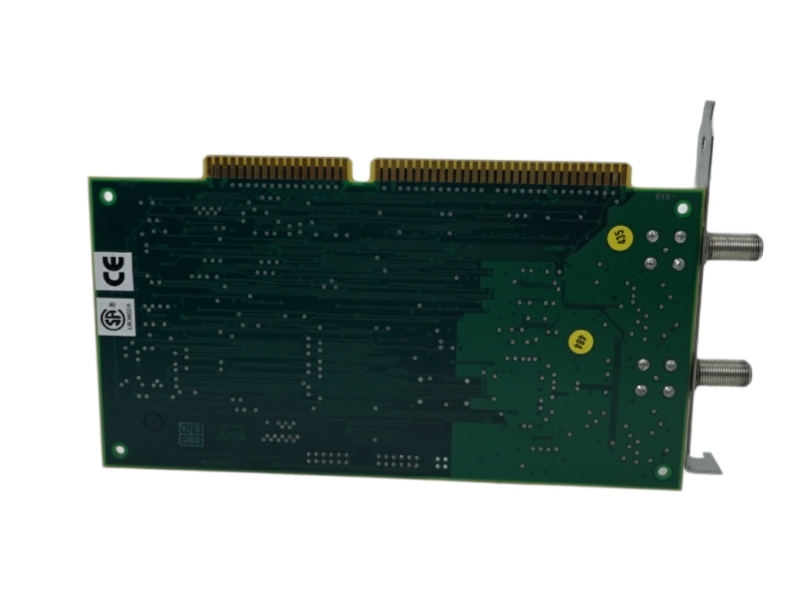

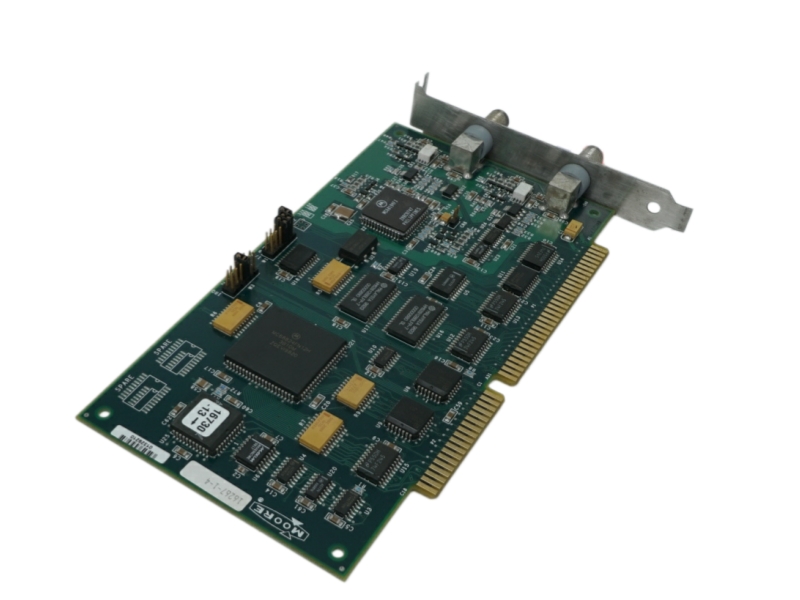

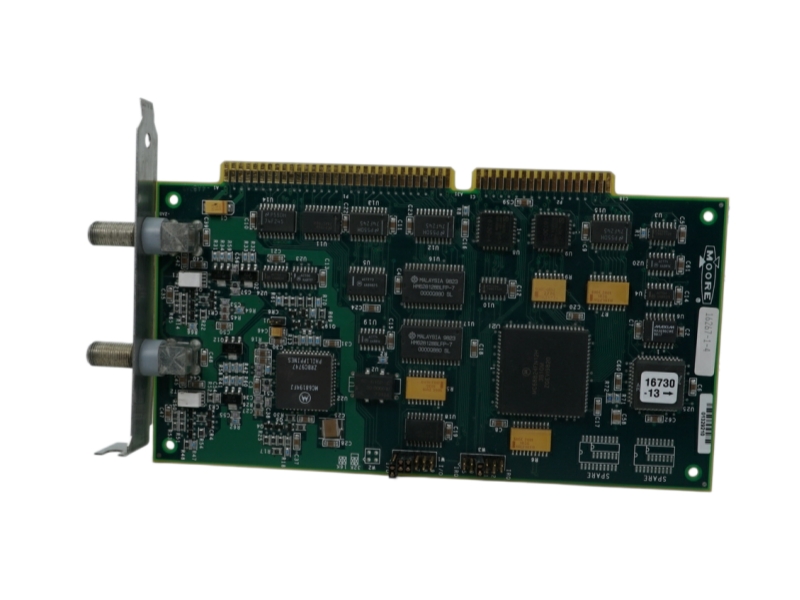

The 16267-1/4 functions as a high-integrity, system-critical communication processor designed to interface industrial personal computers directly with legacy APACS+ distributed control platforms. Built as an ISA-type Modulnet Interface (MNI) module, this device establishes determinism during industrial data exchanges, ensuring fluid real-time communication between supervisory control systems and standard process network infrastructure. It works seamlessly across heavy legacy power and chemical plants to safeguard old-line data acquisition networks against system latency and network-level blind spots.

Specific Application

• Legacy DCS Network Bridging: Serves as a slot-bound PC interface link to route control variables directly from an ISA bus architecture to active APACS+ M-NET communication streams.
• Industrial Server Integration: Enables legacy human-machine interfaces (HMI) or engineering engineering workstation towers to reliably monitor field-level operational automation data.
• Process Signal Buffering: Minimizes frame loss rates during high-capacity variable pooling from critical chemical production loops or turbine management sub-systems.

Ordering Information

System Compatibility

Backplane Architecture: Native electrical and physical compliance with standard ISA motherboard slots.

Network Topology: Specifically mapped to manage tokens and process frames inside proprietary Siemens/Moore APACS+ M-NET systems.

OS Support: Tailored to interface with legacy, industrial-grade operational systems hosting APACS+ driver layers (e.g., historical Windows NT/2000 industrial builds).

Alternative Models & Functional Differences

16267-1/3: An earlier hardware version utilized within identical ISA configurations. The modernized 16267-1/4 delivers refined component longevity and superior hardware layer noise immunity over its predecessor variant.

PCI-based M-NET Cards: Communication boards developed for newer-generation industrial computing backplanes. Unlike the legacy ISA-restricted 16267-1/4, PCI variants leverage modern bus structures to accommodate contemporary server architectures while utilizing the same M-NET protocols.

Installation & Troubleshooting FAQ

Q1: What mechanical care must be observed when slotting the module into a legacy workstation chassis?

A: Turn off all electrical power to the host industrial computer before installation. Ground your wrist using an anti-static ESD strap to avoid permanent hardware damage. Align the module's edge connector precisely with the open ISA slot on the motherboard, press down evenly until it seats firmly, and fix the metal bracket securely with a mounting screw to resist industrial plant vibrations.

Q2: Why is the driver software returning an interrupt conflict or failing to discover the interface module?

A: This scenario typically roots from resource overlapping inside standard ISA architectures, which require manual configurations. Check that the IRQ jumpers or base I/O memory address blocks set on the physical circuit board match the parameters assigned in your legacy system's configuration software. Re-verify that no secondary system resource claims the same hardware registers.

Q3: What should be checked if data frames on the M-NET loop drop out intermittently during process cycles?

A: Check the physical condition of the M-NET network connections and verify that correct line termination resistance is applied across the communication network loop. Inspect the board’s rear connectors for dynamic oxidation or physical residue built up from years of operational factory exposure, and clean the contacts with specialized electrical terminal fluid if necessary.
