General Information

Core Description

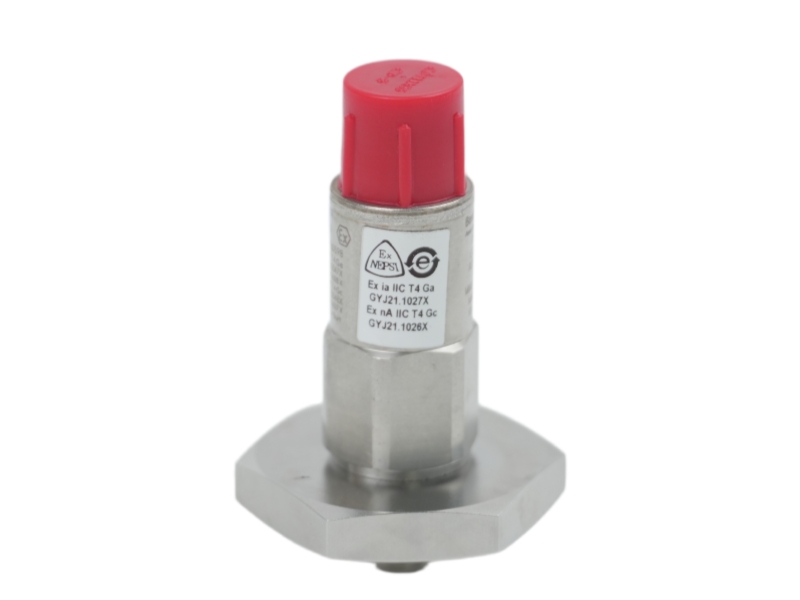

The 200150-22-CN is a Bently Nevada general purpose seismic transducer featuring an M8x1.25 hex plate mounting stud and a hermetically sealed 316L stainless steel case. Fully compatible with Trendmaster ProTIMs and Trendmaster 2000 systems, this rugged unit works seamlessly with industrial monitoring networks to deliver stable dynamic acceleration measurements and reliable performance in harsh manufacturing environments.

Competitive Advantage

• The 200150-22-CN implements a specialized M8x1.25 metric hex plate stud configuration, providing a heavy-duty mechanical mounting base that drastically lowers cross-axis sensitivity and optimizes surface contact alignment.
• Built with a robust shear-geometry ceramic piezoelectric sensing device, it delivers stable, linear frequency responses from 10 Hz to 1,000 Hz while minimizing response drift triggered by industrial base strain or thermal transient shocks.
• Encased in a hermetically sealed 316L stainless steel casing, the assembly guarantees complete physical isolation from corrosive plant environments, chemical washes, and 100% condensing humidity up to an operating limit of +105ºC.

System Compatibility and Replacement Models

System Compatibility:

• Bently Nevada Trendmaster ProTIM Modules (Standard Acceleration-to-Velocity channel type, -01 option)
• Bently Nevada Trendmaster 2000 Systems
• 200100 Dual Acceleration to Velocity flexiTIM Module and 89130-01 Transducer Interface Module (TIM)
• Bently Nevada 1900/25 and 1900/27 Machinery Vibration Monitors

Alternative Replacement Models:

• 200155-22-05 (Low Frequency model with the same metric stud but adding hazardous approvals)
• 200157-22-05 (Acceleration Enveloping variant tailored for rolling element bearing tracking)
• 200150-18-05 (General purpose version with an identical metric hex stud profile but carrying hazardous certifications)

Differences from Alternative Models:

• Target Frequency Optimization: This baseline 200150 model operates across 10 Hz to 1,000 Hz to prioritize primary industrial faults like shaft unbalance or misalignment. Swapping it for a 200155 moves the lower limit to 2.0 Hz for slow-turning assets, but incurs a vastly prolonged settling time (≤2000 ms vs. ≤300 ms).
• Application Demarcation: The 200150-22-CN conditions raw broadband measurements. Utilizing the 200157 variant changes the monitoring technique to acceleration enveloping, which is intended exclusively for roller bearing defect and fluid cavitation tracking.
• Hazardous Environment Ratings: The -CN suffix denotes standard industrial ratings without explosive area certification barriers. To deploy sensors in Zone 0 or Class I Division 1 explosive gas zones, the -05 Multiple Approvals option code must be ordered instead.

Ordering Information Table

Installation & Troubleshooting FAQ

Q1: What are the exact torque limits and structural surface requirements for installing this metric hex plate stud?

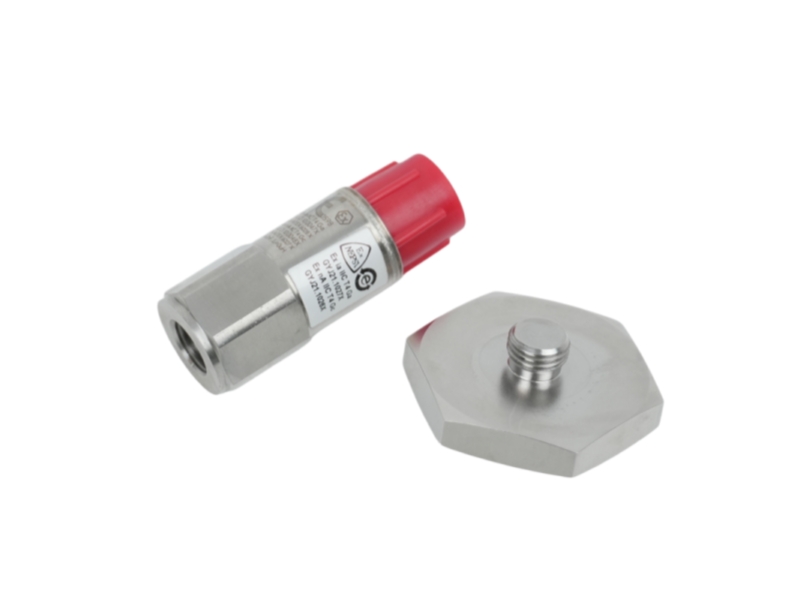

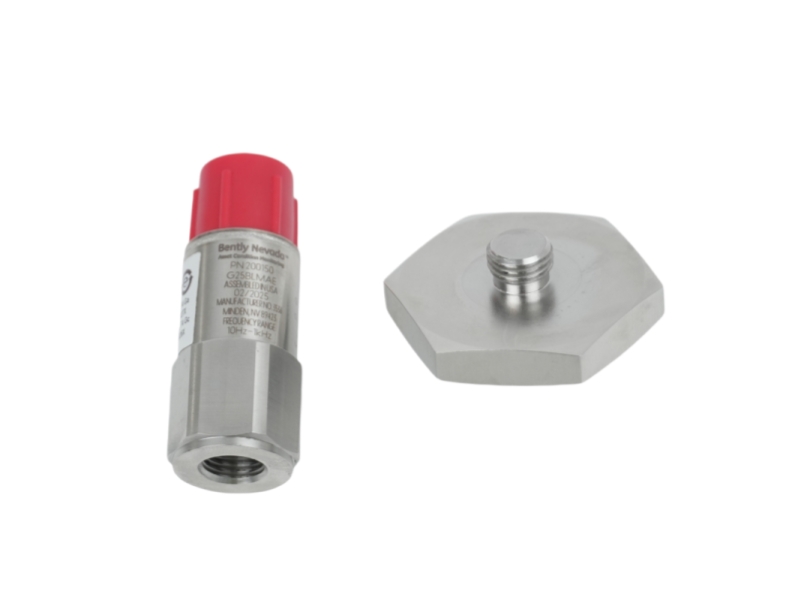

A: The option 22 adapter features an M8x1.25 metric thread profile with a 1-3/8 inch wide hex plate flange base. When threading this adapter onto a machined casing flat surface, tighten the stud to a maximum torque rating of 45.2 N·m (400 in·lbf). If mounting onto a slightly curved housing surface, decrease the maximum tightening torque to 22.6 N·m (200 in·lbf) to avoid bending the flange interface. The casing mounting finish must meet a smoothness of 32 µinch rms.

Q2: Why does my Trendmaster interface indicate a transducer failure or severely distorted low-speed readings?

A: This error usually occurs if a 200150 general purpose sensor is mistakenly deployed on a slow-rotating asset like a cooling tower Fin-Fan. The 200150 is internally high-pass filtered to attenuate components below 10 Hz (600 cpm). For machinery turning slower than 600 RPM where frequencies of interest fall under 10 Hz, you must remove this unit and install the 200155 low-frequency accelerometer alongside its matching ProTIM configuration.

Q3: How do I protect the top 5-pin connection junction against moisture tracking and dynamic signal noise?

A: While the 316L stainless steel sensor casing is hermetically sealed to withstand condensation, the external cable junction remains vulnerable if not protected. When attaching a 200151 or 200152 interconnect cable to the top 5-pin 1/2-20 connector, fill the female socket paths with DC4 electrical insulating compound before screwing the coupling nut down to form a solid IP67 watertight barrier against thermal shock and washing spray.
