General Information

Core Description

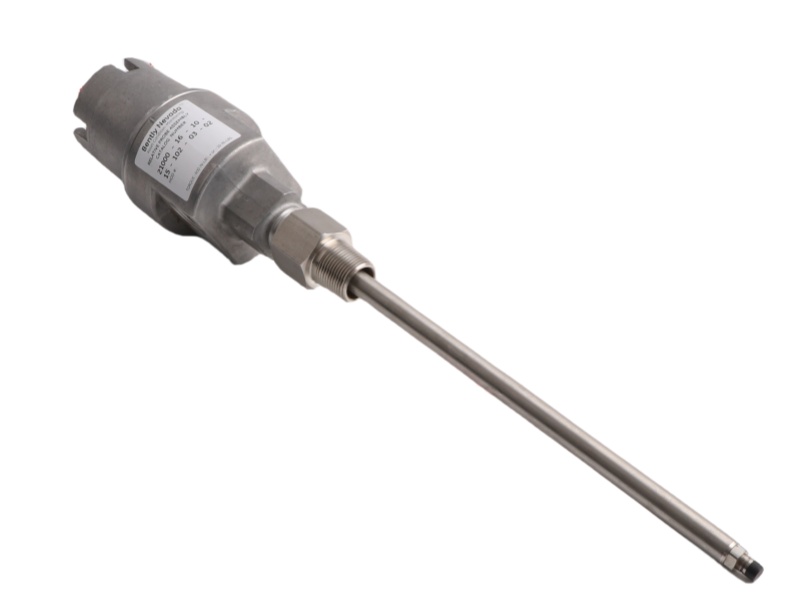

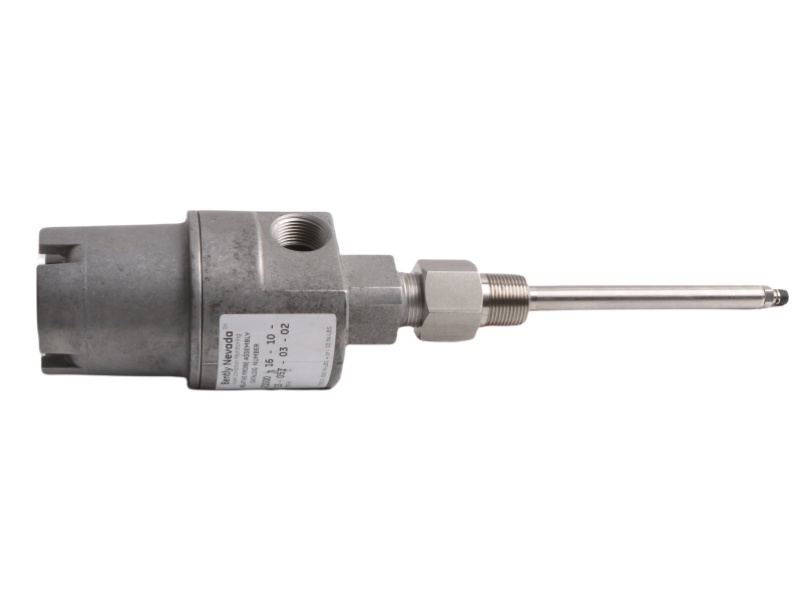

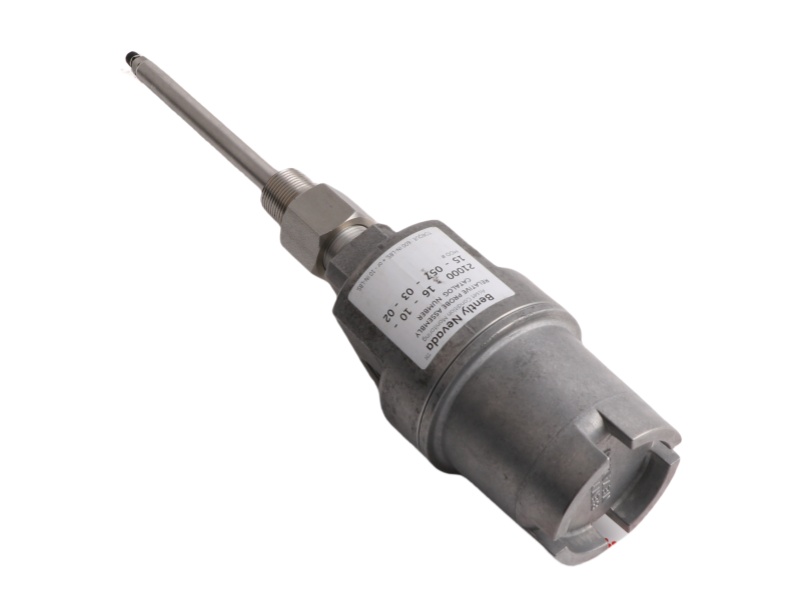

The 21000-16-10-00-126-04-02 is a Bently Nevada proximity probe housing assembly featuring a lightweight copper-free aluminum body and an integrated 3300 XL 8mm probe. Fully compliant with API 670 standards, this unit works seamlessly with standard industrial machinery monitoring platforms to deliver certified explosion-proof containment and stable radial vibration telemetry in harsh plant environments.

Specific Application

• External mounting and explosion-proof containment for proximity probes tracking radial shaft vibration or axial position on rotating machinery.
• Target displacement tracking inside hazardous areas where a custom sleeve penetration depth of 12.6 inches is required without structural counter-boring.
• Protection of internal reverse mount sensor elements and cabling junction connections against mechanical damage and weather elements.

System Compatibility and Alternative Models

• System Compatibility: Contains an integrated 3300 XL 8mm reverse-mount proximity probe with a 1.0-meter cable length. It interfaces directly with Bently Nevada 3300 XL Proximitor Sensors, 3300 XL Extension Cables, and machinery protection architectures like the 3500 rack system.
• Alternative Model: 24701-16-10-00-126-04-02 Proximity Probe Housing Assembly.
• Key Differences:

• Casing Material: The 21000 model utilizes a lightweight aluminum body with a 304 stainless steel sleeve, whereas the 24701 version relies entirely on a ruggedized 303 stainless steel main housing structure.
• Weight Metrics: The 21000 aluminum variant features a typical unmounted mass of 1.1 kg (2.4 lb), whereas the 24701 stainless steel assembly is notably heavier at 1.8 kg (4.1 lb).

Ordering Information Summary

Installation & Troubleshooting FAQ

Q1: What exact installation criteria do the trailing options "-00-126-04-02" identify?
A: The "-00" option states no standoff adapter is utilized. The "-126" defines a clear probe sleeve penetration depth of 12.6 inches (320 mm). The "-04" means the assembly includes one 3/4-14 NPT conduit plug only. The "-02" defines an extra-threaded 3/4-14 NPT machine casing mounting connection machined with 5 to 7 full threads to increase mounting strength.

Q2: Why must additional sleeve support be added for this specific hardware configuration?
A: Because the total penetration length (Option C plus Option D) equals 12.6 inches, which exceeds the critical 12-inch (304 mm) unbraced threshold. Long, unsupported sleeves will experience excessive resonance and mechanical vibrations in the field. To prevent signal distortion, you must implement a probe support and oil seal kit (part number 37948-01) or a custom sleeve bracket.

Q3: What critical rule applies to the physical probe lead length relative to the sleeve length?
A: The integrated probe lead cable must always be physically longer than the total rigid sleeve penetration length. Failing to verify this layout clearance causes the internal terminal connector to become wedged or structurally strained inside the narrow sleeve tube during reverse-mount adjustments, leading to severed conductors or intermittent ground faults.

Accessories

Individual Probe Sleeve for 21000/24701 Proximity Probe Housings

44382-AAA

The individual probe sleeve length does not include the distance from the end of the sleeve to the probe tip or the gap from the probe tip to the target material. If only the part number of the original housing is known, and the sleeve cannot be measured, use the following table to determine the sleeve length:
