General Information

Core Description

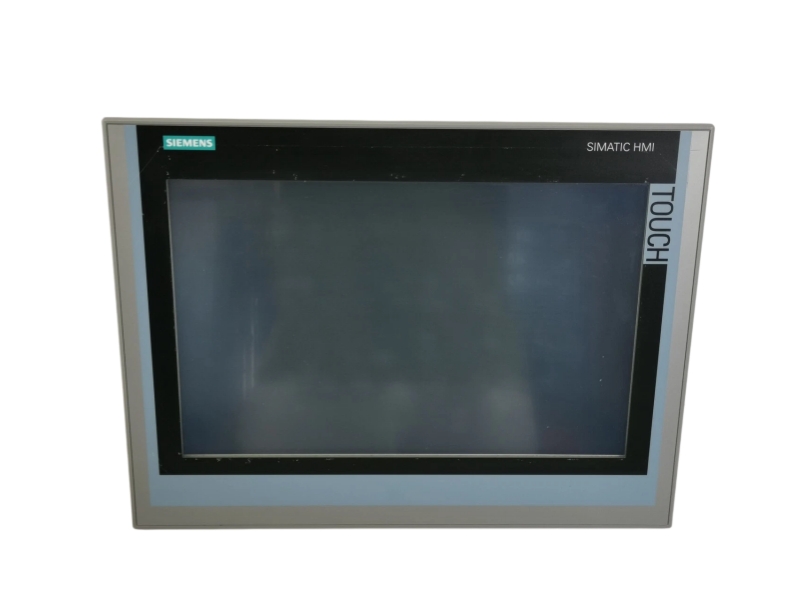

The 6AV2144-6QC10-0AL1 is a Siemens SIMATIC HMI high-resolution touch operator panel featuring customized Alfa Laval structural aesthetics. Fully compatible with TIA Portal engineering setups, this unit works seamlessly with S7 controllers to deliver high-performance graphic rendering, 24 MB configuration flash memory, and multi-protocol network communication over PROFINET and PROFIBUS layouts.

Specific Application

• Hygienic Fluid & Food Processing Loops: Integrating process visualization layouts on Alfa Laval separation, heating, or fluid handling machinery skids.
• High-Density Data Visualization Scratches: Rendering complex industrial automation system schematics across a crisp 15.4-inch widescreen TFT architecture supporting 16 million colors.
• Centralized Marine & Plant Machinery Control: Displaying centralized diagnostic readouts and real-time process alerts via integrated multi-color alarm LED illumination matrices.

Ordering Information

System Compatibility

• Engineering Tools: Fully configurable inside Siemens TIA Portal via WinCC Comfort V13 SP1 / V14 or higher framework versions.
• Controller Connectivity: Integrates directly with SIMATIC S7-1200, S7-1500, S7-300, and S7-400 PLCs through embedded industrial network interfaces.
• Network Fabrics: Connects to field networks via the dual-port PROFINET interface or native sub-D MPI/PROFIBUS DP communication nodes.

Substitute Model & Technical Differences

• Predecessor Model: SIMATIC HMI TP1500 Comfort Alfa Laval Base (Part Number: 6AV2144-6QC10-0AL0).
• Key Differences:

• Hardware/OS Modernization: The newer 6AV2144-6QC10-0AL1 includes updated internal circuit elements and an enhanced operating system environment to handle newer encryption patches.
• Lifecycle Support Stability: The 6AV2144-6QC10-0AL1 serves as the active active-production lifecycle successor, replacing the discontinued 6AV2144-6QC10-0AL0 hardware build which is restricted to legacy spare part provisioning status.

Installation & Troubleshooting FAQ

Q1: What are the exact structural panel cutout dimensions needed to install this Alfa Laval customized HMI module?
A: The design shares the mechanical footprint layout of standard 15-inch SIMATIC Comfort platforms. Ensure the cabinet sheet metal cutout matches the official Siemens dimensions precisely to maintain proper seal compression.

Q2: How do I transfer an existing WinCC runtime project into a new 6AV2144-6QC10-0AL1 device?
A: Open your project in TIA Portal, select compile, and establish a network connection via a standard Ethernet line connected to the PROFINET port. Alternatively, you can use a formatted SIMATIC HMI memory card to flash the project files via the rear data slots.

Q3: The system diagnostic routine flags a communication timeout fault. How can I isolate the error?
A: Access the Windows CE control panel network settings directly on the touch screen. Verify that the assigned IP address and subnet configuration exactly match the hardware layout configuration specified in your master PLC network configuration.

Q4: Can this specific Alfa Laval touch screen panel operate safely in high-humidity or harsh washdown zones?
A: Yes, when mounted correctly in a suitable cabinet layout, the front decorative film frame achieves heavy-duty IP65 ingress protection ratings against dust and water spray. Always ensure the rear perimeter sealing gasket sits flush against the cabinet edge during mounting clip tensioning.

Q5: What is the easiest path to upgrade the original project graphics when migrating from an older panel build?
A: Utilize the official Siemens "Data2Unified" TIA Portal add-in tool to systematically convert legacy WinCC Comfort engineering data structures into modern vectorized UI layouts, saving substantial hours of manual graphical adjustment.
