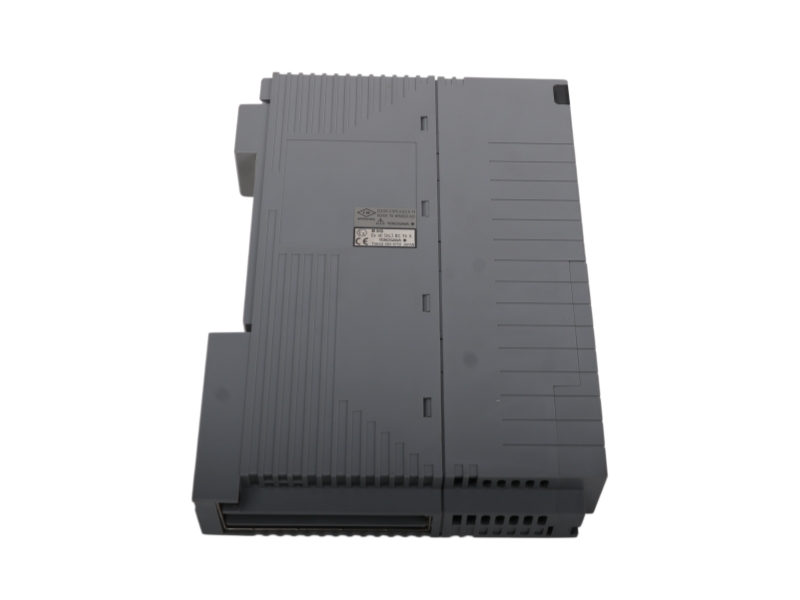

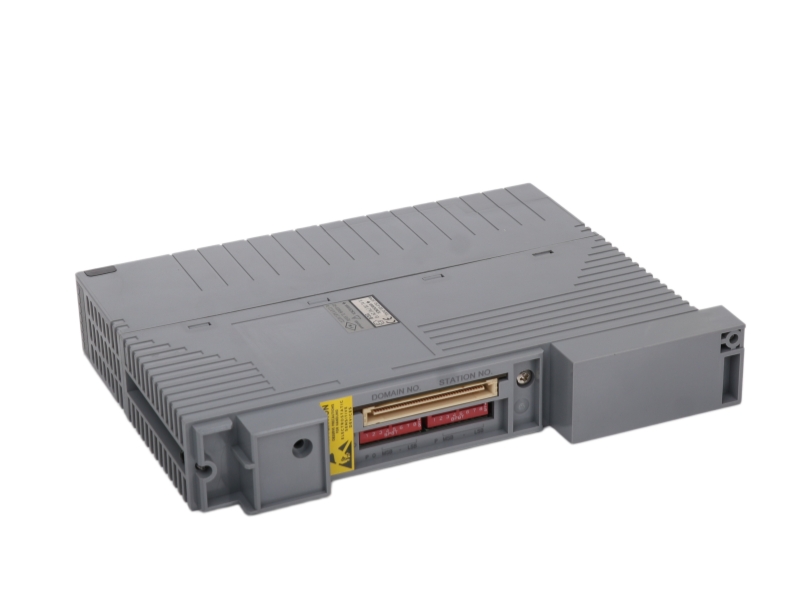

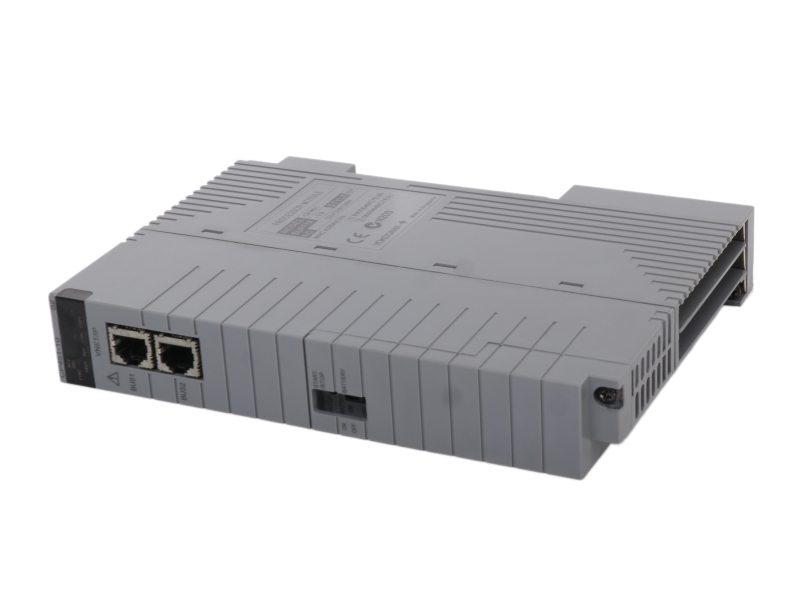

Q1: How do I configure a pair of CP451-10 S2 modules for dual-redundant tracking?

A: Verify that both physical cards share identical suffix codes (-10 S2) and matching internal firmware versions. Insert the two modules into the designated slot positions labeled C1 and C2 on the main Field Control Unit base plate. Upon powering the rack, the internal dual-redundant bus interfaces will initialize synchronization automatically. One module locks into the primary control execution role, while the companion card mirrors registers in hot-standby mode.

Q2: Why must I leave empty slots when installing an AAT141 thermocouple module near the CP451?

 A: The CP451 processor module releases continuous thermal energy during routine instruction execution. High-precision thermocouple modules like the AAT141 rely on stable cold-junction temperatures to maintain accurate compensation metrics. Installing an AAT141 directly adjacent to a CP451 subjects the sensor to radiated heat. To prevent reference junction measurement drift, you must maintain a physical isolation buffer of at least one empty slot on each side.

Q3: What does a dark "READY" LED paired with a solid red "FAIL" LED on the CP451 indicate?

A: This state points to a critical internal hardware fault or a total diagnostic failure during boot loops. First, check that the parallel power supply modules (PW48£) are distributing clean 5 V DC voltage across the backplane. If the power delivery system is healthy, the processor card must be replaced. Because the S2 suffix supports dual-redundancy, control should seamlessly swing to the backup card without causing a process trip. The faulty unit can be safely hot-swapped.
