General Information
| Product ID: | 3AUA0000119630 |
| ABB Type Designation: | ZINT-7B1C |
| Catalog Description: | ZINT-7B1C; PCB |
| Long Description: | ZINT-7B1C |
| Dimensions: | 19.8x12.9x3cm |
| Weight: | 0.15kg |
Core Description

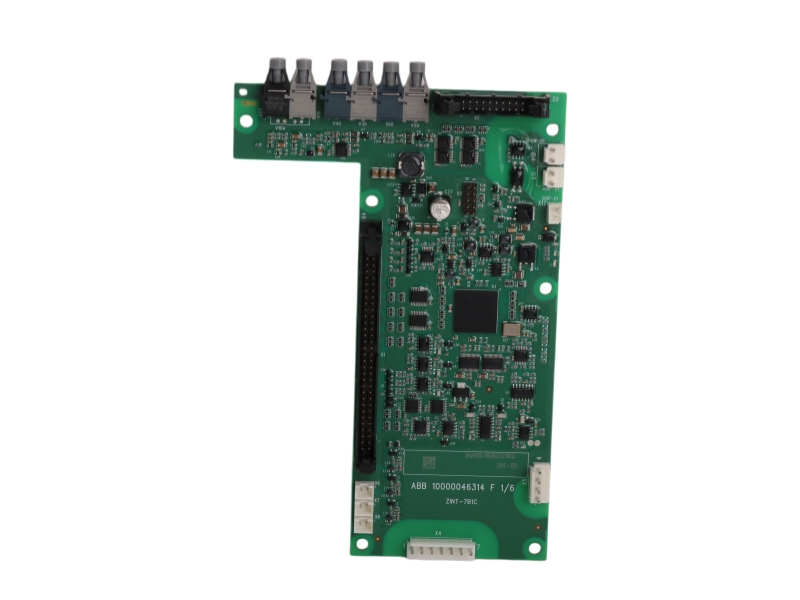

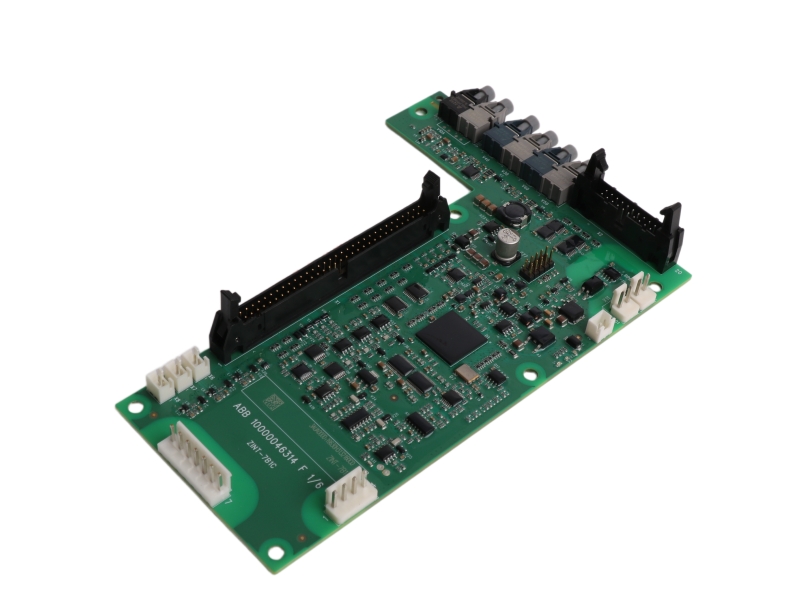

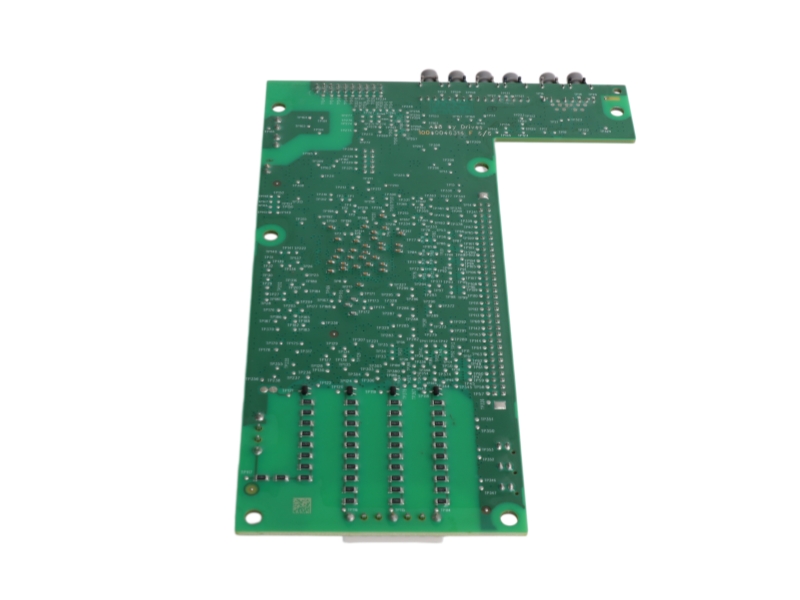

The ZINT-7B1C 3AUA0000119630 is a specialized internal printed circuit board (PCB) engineered for ABB variable speed drive platforms. Functioning as a high-integrity factory-level assembly, this board provides critical processing pathways when embedded inside complex multi-module converter frames. It works seamlessly within larger industrial drive structures to maintain stable hardware communication networks and deliver responsive motor control performance across automated processing plants.
Specific Application
Ordering Information
|
Technical & Commercial Metric |
Selected Factory Specification Details |
|
Product ID Code |
3AUA0000119630 |
|
ABB Type Designation |
ZINT-7B1C |
|
Catalog Description |
ZINT-7B1C; PCB |
|
Invoice Description |
PCB |
|
Ordering Status Constraint |
THIS ITEM IS NOT ORDERABLE AS A DIRECT SPARE |
|
Minimum Order Quantity |
1 piece |
|
Product Net Width |
19 mm |
|
Product Net Height |
130 mm |
|
Product Net Depth / Length |
3 mm |
|
Net Structural Weight |
0.15 Kilograms (Gross Weight: 0.15 kg) |
|
Gross Volume Envelope |
7.41 cm³ |
System Compatibility
Drive Kit Frameworks: Compatible for nested integration within specific factory service kits, including part codes 3AXD50000004365, 3AXD50000024379, 3AXD50000030108, 3AXD50000030408, 3AXD50000037932, 3AXD50000037933, 3AXD50000047297, and 3AXD50000047311.
Service Classification: Managed under global drive services, maintenance consumables, and structural repair spare parts.
Ordering Restrictions & Orderable Alternatives
Important Notice: This bare board component (ZINT-7B1C) is not orderable as an isolated, standalone user spare part directly from the factory.
ACS880 Pre-Programmed Alternative: For standard field replacement on ACS880 drive systems, operators must procure the fully pre-programmed ACS880-XINT module (Part Number: 3AXD50000155477) or consult official factory IHMM reference sheet 4FPS10000485159 to source the correct matching spare board.
ACx580 Pre-Programmed Alternative: For maintenance actions on ACH580, ACQ580, or ACS580 frequency converter units, operators must order the fully pre-programmed ACx580-XINT module (Part Number: 3AXD50001108335) rather than attempting to source this unprogrammed base circuit board.
Installation & Troubleshooting FAQ
Q1: Why is this specific ZINT-7B1C board listed as unorderable for direct field replacements?
A: This bare circuit board lacks the system-specific firmware configurations required by individual converter platforms. To prevent field programming mismatches, safety hazards, or drive control board failure states, the factory restricts direct sales and requires the procurement of fully pre-programmed XINT modules tailored to your specific drive family.
Q2: What procedure must be followed if an internal ZINT or BINT board fails inside a running ACS880 drive?
A: Do not search for a raw ZINT-7B1C replacement board. Instead, refer to the factory support document 4FPS10000485159 or immediately obtain the fully pre-programmed functional replacement block under code 3AXD50000155477 to guarantee drop-in hardware compatibility and firmware alignment.
Q3: What basic mechanical tolerances should be noted during cabinet teardowns or kit overhauls?
A: The board features ultra-compact physical boundaries with a net thickness of 3 mm and a height profile of 130 mm. Always discharge all system supply capacitors completely and utilize comprehensive anti-static ESD grounding safeguards before opening the drive module to protect sensitive trace nodes against static puncture.
