General Information
| Product ID: | 3AXD50000006010 |
| ABB Type Designation: | ZMU-02 |
| Catalog Description: | ZMU-02; MEMORY UNIT KIT |
| Long Description: | ZMU-02 |
| Display Name: | 3AXD50000006010 |
| Dimensions: | 5x0.8x2.7cm |
| Weight: | 0.02kg |
Core Description

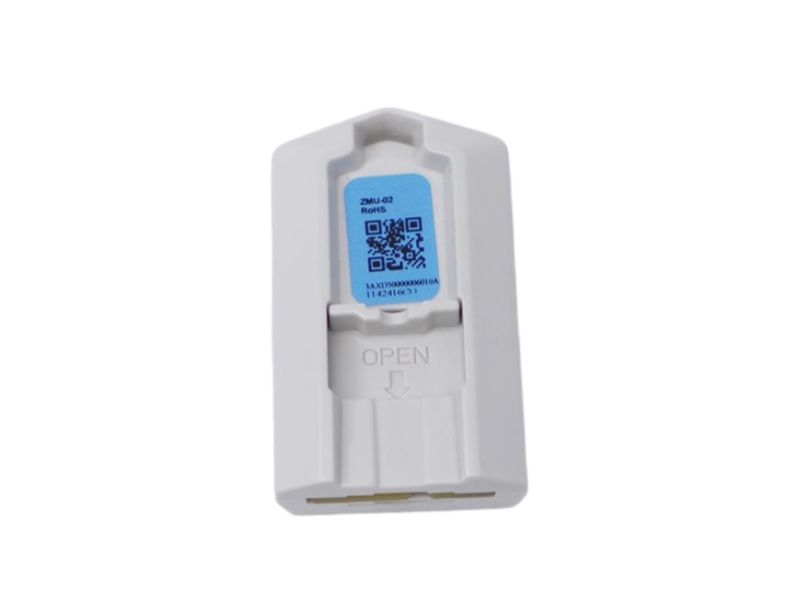

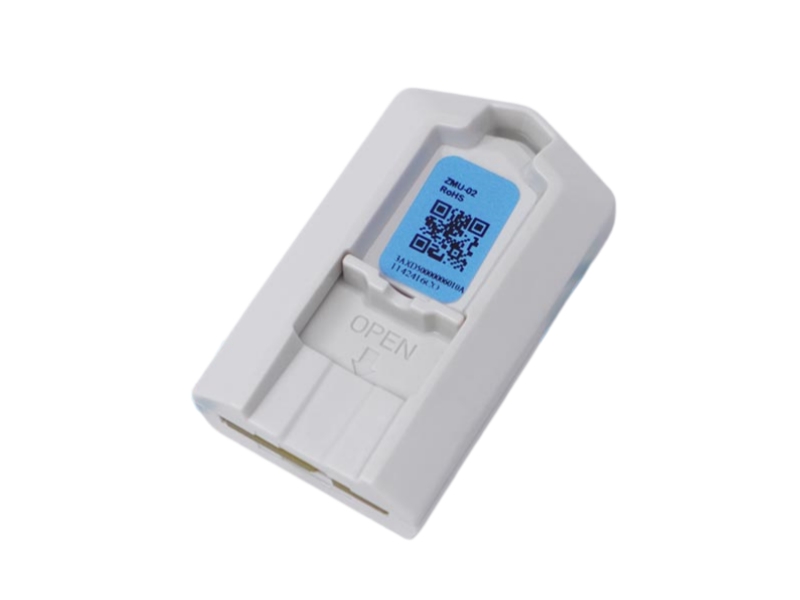

The ZMU-02 3AXD50000006010 is a specialized ABB drive firmware host platform architecture engineered as an empty memory unit kit. Fully compatible with ZCU and BCU control backplanes, this unit works seamlessly with industrial frequency converters to deliver flexible parameter storage, customized firmware loading configurations, and stable drive parameter backup records across automated factory machinery networks.
Specific Application
Ordering Information
|
Commercial & Logistics Parameter |
Selected Factory Specification Details |
|
Product Identifier |
3AXD50000006010 |
|
Type Designation |
ZMU-02 |
|
Catalog Description |
ZMU-02; MEMORY UNIT KIT |
|
Technical Status |
Empty memory unit, software not included |
|
Invoice Description |
MEMORY UNIT KIT |
|
Minimum Order Quantity |
1 piece |
|
Net Product Breadth / Width |
27 mm |
|
Net Product Height |
8 mm |
|
Net Product Depth / Length |
50 mm |
|
Net Hardware Mass |
0.02 Kilograms (Gross Weight: 0.02 kg) |
|
Gross Volume Envelope |
10.8 cm³ |
|
Customs Tariff Identifier |
85049090 (CN8 Code: 85049099) |
|
Country of Manufacture |
Romania / India |
System Compatibility
Host Control Units: Fully interchangeable and compatible with ABB drive control platforms including ZCU-12, ZCU-14, BCU-02, BCU-12, and BCU-22 hardware slots.
Software Prerequisites: Delivered strictly as an empty non-volatile hardware container package; it demands a separate software license or firmware package flash configuration during commission steps.
Classification Grouping: Registered under factory class categorizations for variable speed drive systems, spare parts kits, and long-term electronic consumables.
Alternative Models & Functional Differences
ZMU-03 (Part Code: 3AXD50000223107): The officially specified memory option designed for modern ACS880 family drives. The baseline ZMU-02 module is strictly not recommended for ACS880 control board applications due to memory indexing profile boundaries and partition capacity requirements.
Installation & Troubleshooting FAQ
Q1: Can this empty memory module be hot-swapped into an online drive control framework?
A: No, you must entirely disconnect the power supply to the host drive control unit before executing a hardware swap. Inserting or extracting the ZMU-02 board while the internal processor registers are active can lead to static-induced memory trace corruption, leading to irreversible controller system errors.
Q2: Why is the drive terminal displaying a communication failure or missing firmware error after inserting the new block?
A: This symptom arises because the ZMU-02 is supplied from the factory as an unprogrammed, empty hardware block containing no base operating system logic. To clear this, connect your engineering station to the host control unit and download the correct matching firmware suite into the newly assigned card memory.
Q3: How do I verify the mechanical limits and orientation rules when seating the memory unit?
A: The card incorporates an engineered asymmetrical keyed guide rail layout to block reverse slotting mistakes. Carefully align the module tracking path with the dedicated receptacle interface on the ZCU or BCU mainboard, then press down evenly until the mechanical tabs click home firmly.
