Q1: What critical orientation and safety measures apply when installing the board into a heavy drive subrack?

A: You must isolate all input mains utility lines and allow intermediate DC link capacitors to discharge completely (minimum 20 minutes) before inserting the unit. Align the card tracks carefully with the backplane guide slots, press it firmly home to seal the edge-connector pins, and lock all retention fasteners to protect against severe industrial cabinet vibrations.

Q2: Why is the main controller throwing an immediate hardware fault or interface timeout alert after a module replacement?

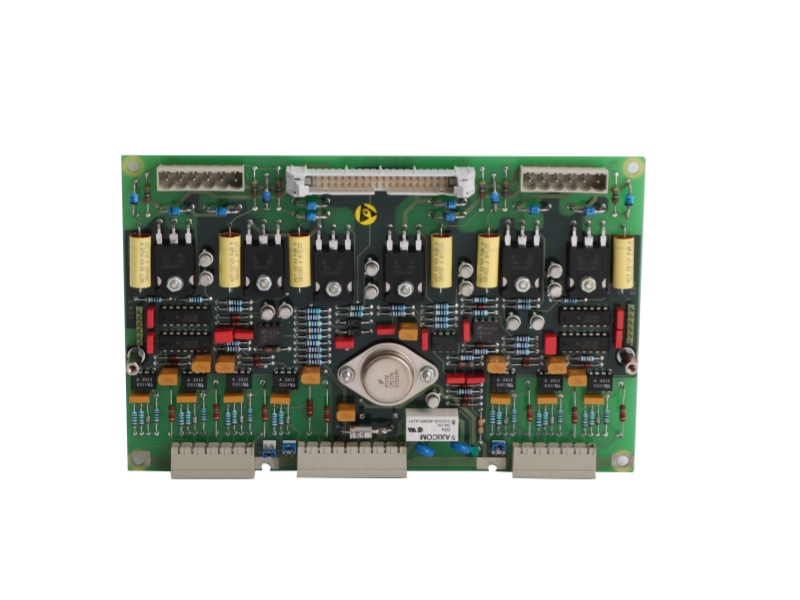

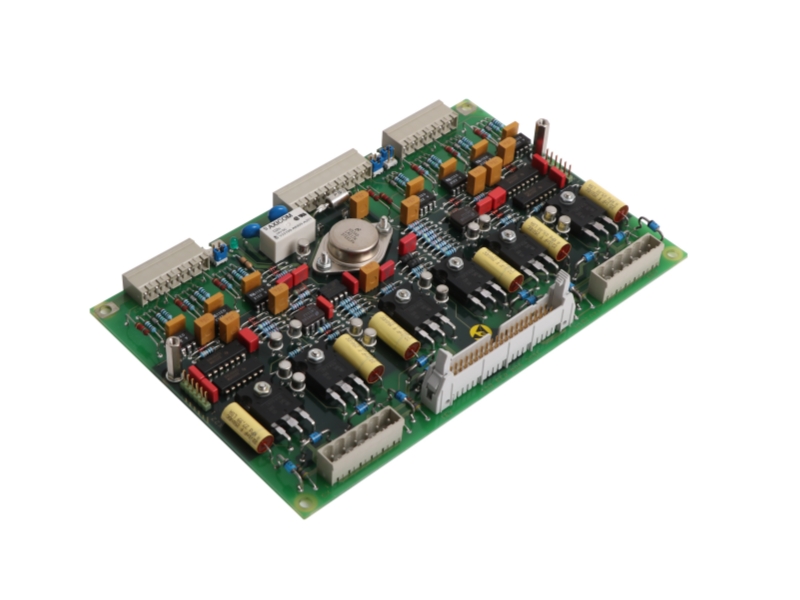

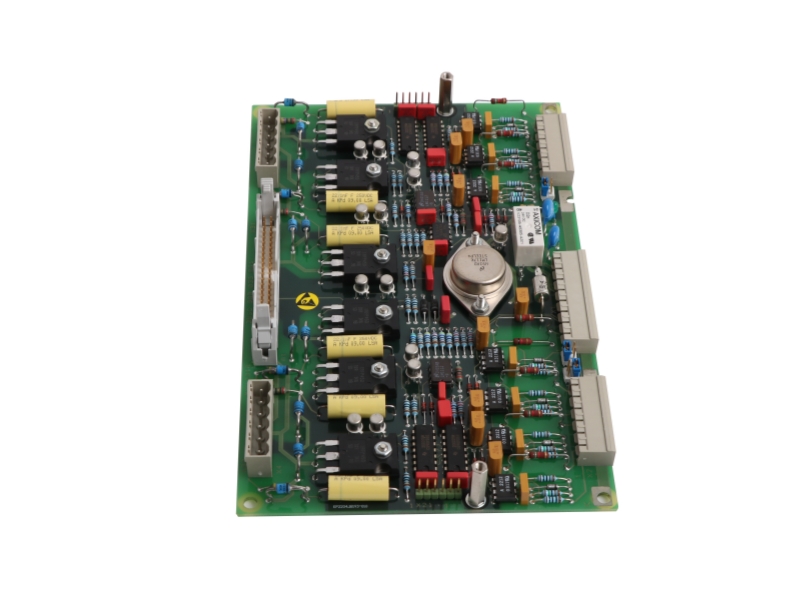

A: This symptom is frequently caused by a jumper configuration mismatch or misaligned board address pins. Check the legacy board's physical micro-switch and jumper pin positions and replicate them exactly on the new YXU201A unit. Also, ensure the edge pins are completely free of microscopic dust accumulation or factory oil film by using specialized electrical cleaner.

Q3: What basic inspection routines should be followed if field signals on this interface board degrade or experience intermittent drift?

A: Check all field-side screw terminal wire paths for loose retention grips or thermal oxidation. Use an oscilloscope to check for electrical noise leaking into the low-voltage control lines. If internal sensor conditioning pathways or components have suffered catastrophic degradation from localized high-heat stress, replace the board with a fresh factory unit.
