General Information

Core Description

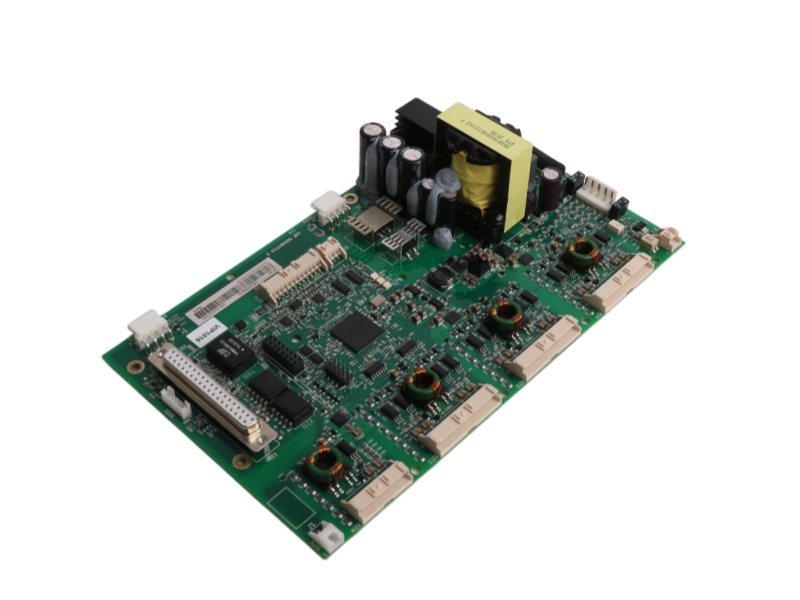

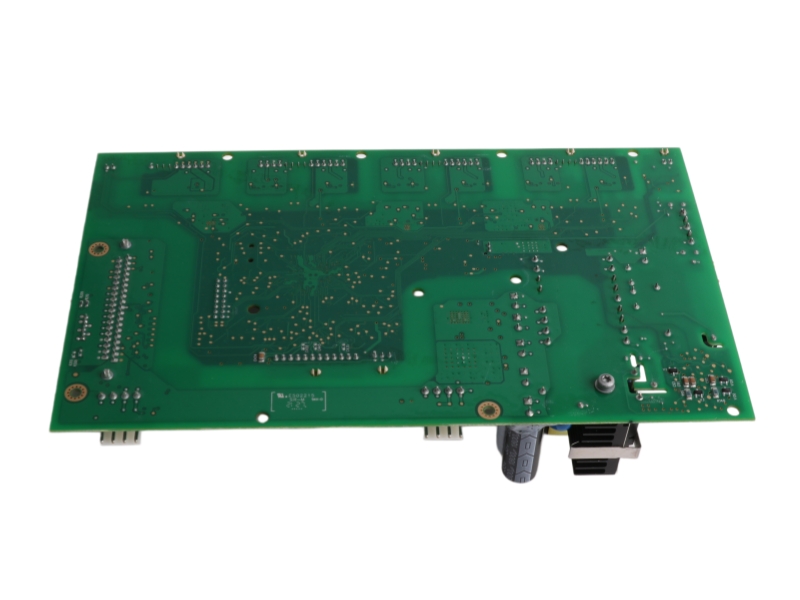

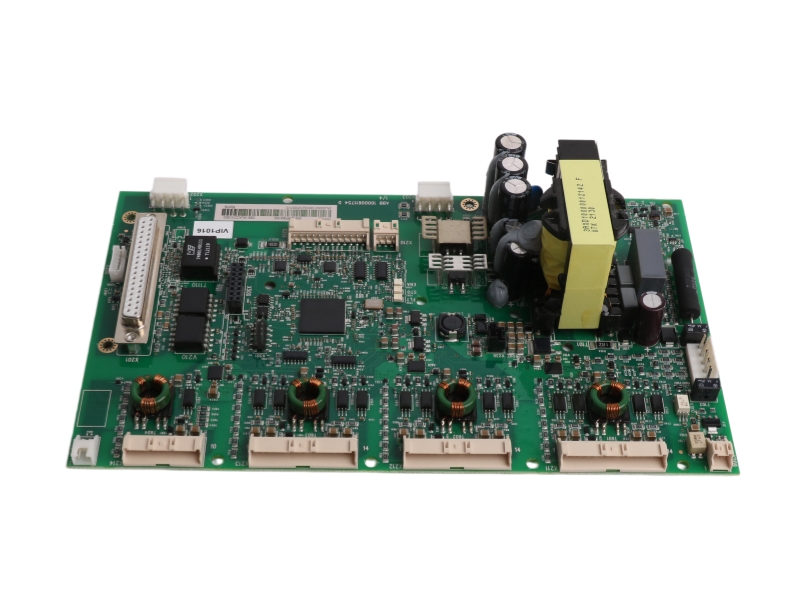

The ZINT-592 3AUA0000103603 is a specialized internal main circuit (MC) interface board built exclusively for ABB industrial frequency converter architectures. Designed to facilitate robust signal routing between central processing units and power electronics segments, this circuit card delivers high-integrity gate driver links and localized sensor feed transitions. It works seamlessly within multi-module inverter configurations to maintain deterministic system communications and protect high-power motor control systems against industrial signal interference.

Specific Application

• High-Power Inverter Gate Interfacing: Transmits real-time firing pulses and gate drive control signals between the central controller and internal power semiconductors.
• Converter System Kit Hosting: Deploys as an internal technical component nested within factory-certified variable speed drive maintenance and repair kits.
• Internal Feedback Conditioning: Manages and processes low-voltage current and temperature sensor telemetry within heavy-duty electrical converter enclosures.

Ordering Information

Where Used (as part of "kit")

Installation & Troubleshooting FAQ

Q1: Why can I not order the ZINT-592 card directly as a single loose replacement component?

A: The ZINT-592 is a raw, unprogrammed board layer. Without specific firmware parameters pre-flashed at the factory to match a specific drive configuration, mounting a raw card will result in severe communication blocks or hardware fault trips. ABB requires the use of fully pre-programmed XINT modules to maintain proper operating protection.

Q2: An active drive reports an internal interface communication error. What steps should be taken?

A: Check that all internal ribbon cables and multi-pin bus connectors between the interface card and the control unit are fully inserted and locked. If the board has suffered thermal degradation or component breakdown, do not replace it with an unprogrammed card. Procure the designated pre-programmed XINT block to ensure drop-in operation.

Q3: What basic physical safety rules apply when handling or inspecting this interface board?

A: The board has a net hardware weight of 0.4 kg. Before accessing the internal module bays of a large-scale converter, isolate all input mains power. Wait at least 15 to 20 minutes for the internal intermediate DC bus capacitors to discharge down to safe voltage thresholds, and always wear a verified ESD grounding wrist strap.
