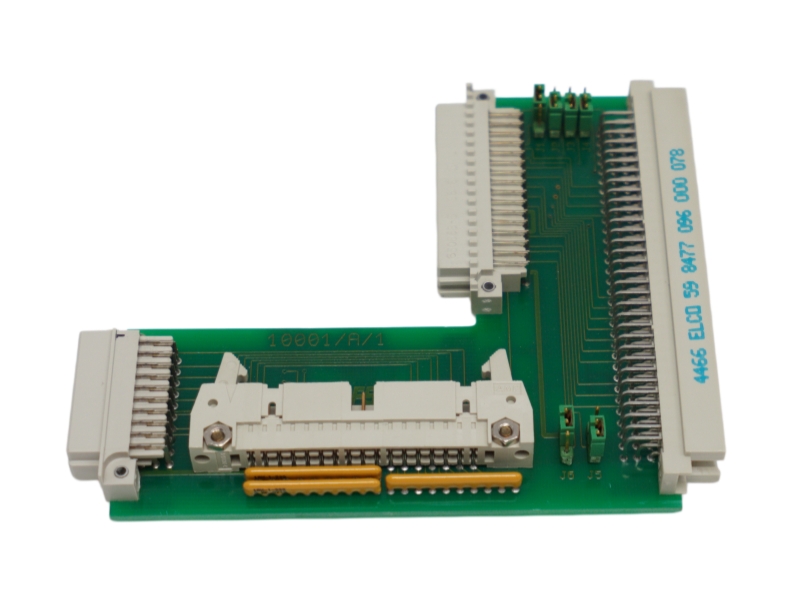

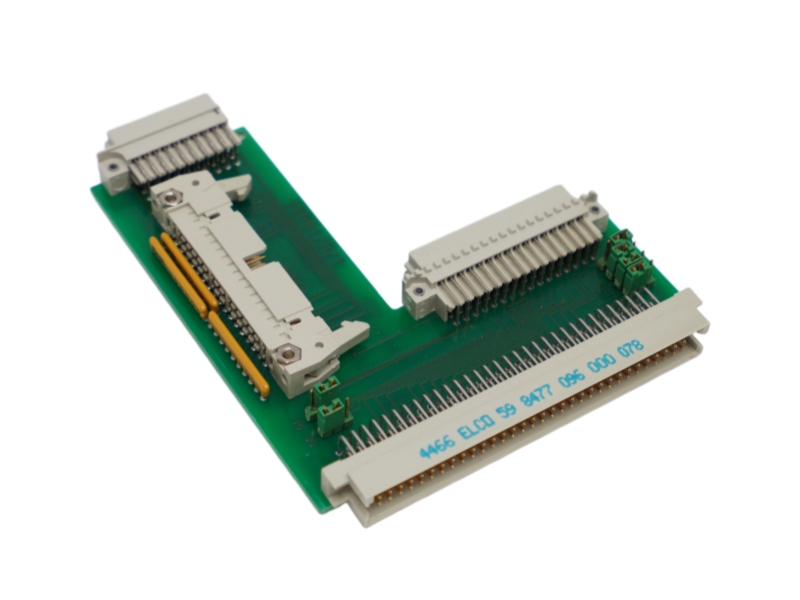

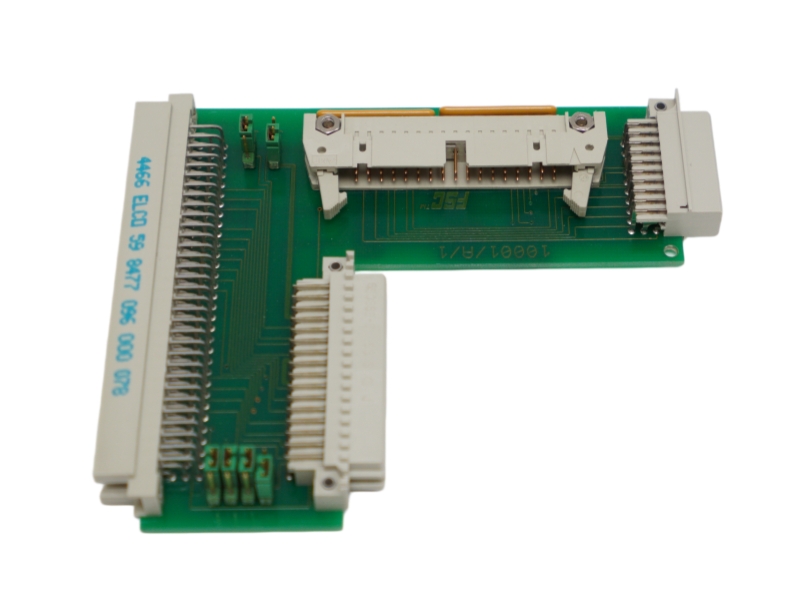

10001/A/1 Honeywell FSC Vertical Bus Driver VBD Communication Module

Inquiry now

General Information

Model number	10001/A/1
Country of origin	USA
Condition	Brand New
Dimension	13.3x2.3cm
Weight	0.3kg
Lead time Warranty	in stock
MOQ	1 pcs

Comprehensive Feature

The 10001/A/1 is a Honeywell Fail Safe Control (FSC) high-speed Vertical Bus Driver (VBD) module featuring dedicated multi-rack communication capabilities. Fully compatible with the Central Part system backplane, this unit works seamlessly with central processor units to deliver flexible data routing and stable industrial safety network communication.

Specific Application

Multi-Chassis Extension Interconnect: Bridging the essential data link between the Central Part (CP) processing rack and multiple remote input/output racks distributed across an automation cabinet.
Synchronized Fail-Safe Data Highway: Delivering dependable vertical bus control to transport time-critical sensor diagnostics and safety executive actions without data packet latency.
High-Availability Racking Topologies: Driving high-density signal distribution pathways across multi-tier safety manager configurations in emergency shutdown (ESD) and critical burner management environments.

Ordering Information

Part Number	Item Description	Core Functional Category	Main System Application
10001/A/1	Vertical Bus Driver (VBD) Module	Central Part Modules	Manages high-speed vertical data communication from CP racks to remote I/O tracks.
10001/1/1	Vertical Bus Driver (Standard VBD)	Central Part Modules	Standard vertical bus highway manager for non-redundant rack layouts.
10001/R/1	Redundant Vertical Bus Driver	Central Part Modules	Specialized driver pair establishing fully redundant data highways across safety racks.
10002/1/2	Central Processor Unit (CPU)	Central Part Modules	Microprocessor engine executing safety logic, threshold tracking, and diagnostics.
10003/1/1	Memory Module (MEM)	Central Part Modules	Dedicated memory bank retaining non-volatile safety parameters and runtime logic code.
10100/1/1	Horizontal Bus Driver (HBD)	Central Part Modules	Manages continuous cross-communication for I/O modules resting on the same rack level.
10307/1/1	Vertical Bus Terminator	Special Function Modules	Provides end-of-line impedance matching at the terminal end of the vertical bus track.
10313/1/1	5 Vdc & Watchdog Distribution Module	Special Function Modules	Directs logic power rails and common hardware watchdog safety signals over the backplane.

System Compatibility

· Processor Framework: Purpose-built to function alongside Honeywell FSC Central Processor Units (e.g., 10002/1/1 and 10002/1/2) and Memory Modules (10003/1/1).

· System Buses: Interfaces directly over the high-speed horizontal Central Part system buses, including 5-SBUS, 7-SBUS, 12-SBUS, and 17-SBUS backplane layers.

· Cabinet Environment: Integrates into centralized steel safety enclosures under standard operating temperatures from 0°C to 60°C and a relative humidity limit of 95%.

Alternative Model & Differences

· Alternative Model: Vertical Bus Driver Module (Part Number 10001/1/1 or 10001/R/1).

· Key Differences:

o Redundancy Support: The 10001/A/1 variant is physically or logically tailored as an optimized accessory interface card within specific hardware revisions, whereas the 10001/R/1 is engineered directly for high-availability redundant vertical bus configurations.

o Key Coding Assignments: The 10001/A/1 follows specific positioning slots in the CP rack to prevent accidental cross-insertion with standard non plug-and-play input/output modules.

o Data Throughput Pathing: While standard bus drivers address primary vertical tracks, this revision provides optimized signal conditioning for long-distance multi-drop vertical bus terminations within modern TotalPlant safety layouts.

Installation & Troubleshooting FAQ

Q1: What environmental parameters must be guaranteed during the field commissioning of the 10001/A/1 module?

A: The 10001/A/1 is built for indoor environments like air-conditioned control rooms. Field engineers must ensure the operating temperature at the Central Part rack stays between 0°C and 60°C, and the relative humidity remains below 95% non-condensing. If the system cabinet is positioned in an outdoor enclosure, strict IP grading metrics must be verified to fully shield the vertical bus logic against water and dust ingress.

Q2: Why is the Central Processor Unit displaying a vertical bus communication timeout fault on the 10001/A/1 track?

A: A bus timeout typically points to an open circuit or improper loading along the multi-rack connection. Check that the physical vertical bus cables running from the Central Part chassis to the I/O racks are fully seated into their card connectors. Additionally, verify that a dedicated Vertical Bus Terminator (Part Number 10307/1/1) is properly installed at the final physical drop on the vertical bus line to prevent signal reflection.

Q3: Can the 10001/A/1 card be hot-swapped while the safety system backplane is fully energized?

A: While specific components within the Honeywell FSC infrastructure support online maintenance, hot-swapping a core bus module can disrupt active communications across all linked remote I/O chassis. Field engineers must refer to their safety manager runtime configuration guidelines before extraction. Ensure the system is placed into a safe state or the corresponding bus leg is bypassed to prevent triggering an inadvertent emergency shutdown (ESD) pulse across the network.
