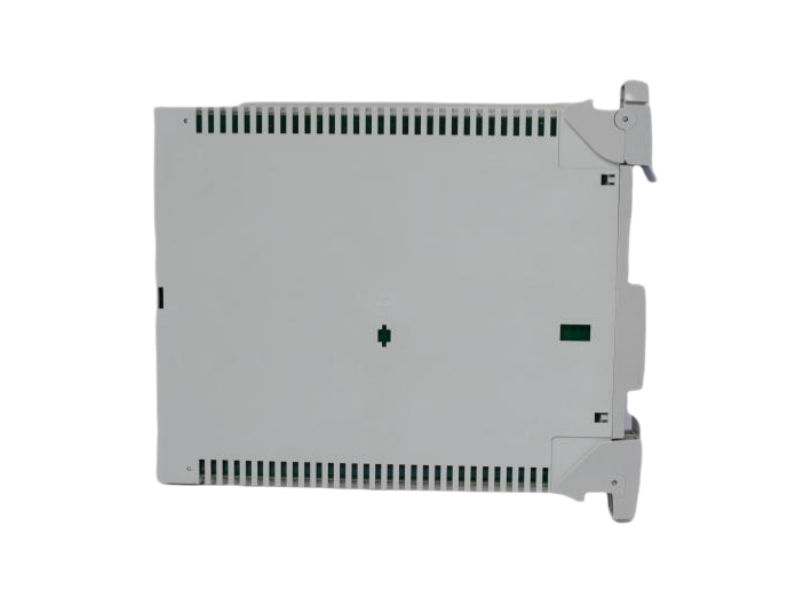

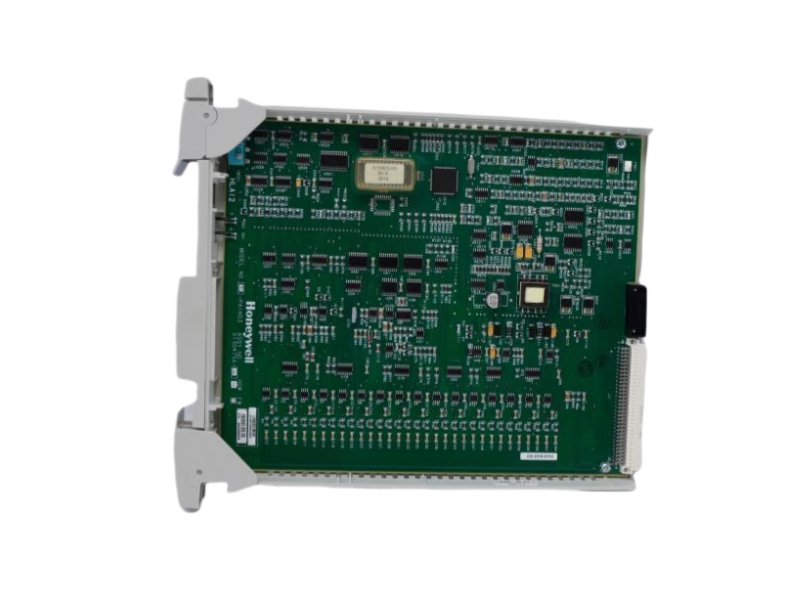

51304754-150 MC-PAIH03 Honeywell High Level Analog Input Processor Conformally Coated 16-Channel

51304754-150 MC-PAIH03 High Level Analog Input Processor

Inquiry now

General Information

Model number	51304754-150 MC-PAIH03
Country of origin	USA
Condition	Brand New
Dimension	3x31.3x27.8cm
Weight	0.58kg
Lead time Warranty	in stock
MOQ	1 pcs

Feature & Value-Driven

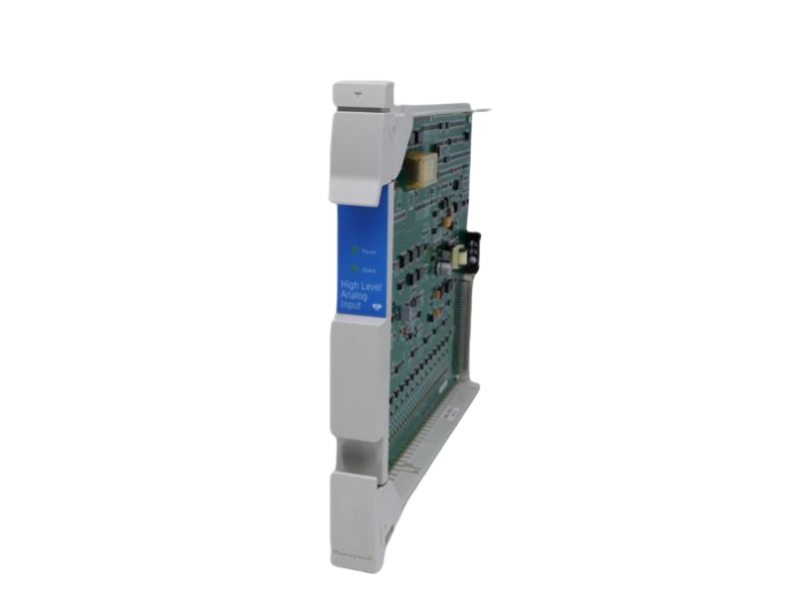

The MC-PAIH03 is a Honeywell conformally coated high-level analog input application module featuring 16 differential input channels. Fully compatible with the TPS Process Manager I/O link, this unit works seamlessly with PM, APM, and HPM controllers to deliver flexible software configuration and stable industrial process monitoring in corrosive environments.

Specific Application

Harsh Industrial Monitoring: High-accuracy voltage and 4-20 mA loop monitoring in corrosive atmospheres such as offshore oil platforms and chemical plants.
Process Variable Acquisition: Interfacing with 2-wire or self-powered transmitters to capture critical flow, level, and pressure data for control processor loading.

Ordering Information

Part Number	Model Number	Description	Coating Status	Number of Channels
51304754-150	MC-PAIH03	High Level Analog Input Processor	Conformally Coated (G3 Hardened)	16 Differential Inputs
Alternative	MU-PAIH03	High Level Analog Input Processor	Uncoated (Standard G1)	16 Differential Inputs

System Compatibility

· Fully compatible with Honeywell TotalPlant Solution (TPS) system control architectures.
· Works seamlessly with Process Manager (PM), Advanced Process Manager (APM), and High Performance Process Manager (HPM) controllers.
· Interfaces directly with field wiring via compatible Field Termination Assemblies (FTAs) like the MU-TAIH02 or MC-TAIH62.
Alternative Model & Differences
· Alternative Model: MU-PAIH03
· Key Differences:
o Environmental Hardening: The MC-PAIH03 features a specialized plastic film conformal coating providing G3 "Harsh" atmosphere resistance, indicated by a distinctive "C" diamond faceplate symbol. The MU-PAIH03 is uncoated and restricted to mild G1 environments.
o Model Nomenclature: The coated version substitutes "MU" with "MC" in its primary model designation and utilizes the specific 51304754-150 part number.

Installation & Troubleshooting FAQ

Q1: What input types can be connected to the MC-PAIH03 module?

A: The module accepts differential voltage and current inputs. Supported ranges include 0 to 5 V, 1 to 5 V, 0.4 to 2 V, and standard 4-20 mA loops passed through a 250 \(\Omega \) resistor on the associated Field Termination Assembly (FTA).

Q2: How do you identify if an MC-PAIH03 module has conformal coating when inspecting it in the field?

A: Coated modules feature a distinctive "C" symbol surrounded by a solid diamond (the universal symbol of hardness) directly on their faceplate. Additionally, the model number on the side label will begin with an "MC" prefix instead of "MU".

Q3: Will an IOP failure affect the scan rate or performance of the main control processor?

A: No. I/O processing on the MC-PAIH03 is executed separately from control processing functions. This physical partitioning ensures that I/O scan rates remain completely independent of the controller loading, alarming, or total physical I/O quantity.

Q4: What happens to the process signals during a redundant module failover?

A: When configured as a redundant pair with a compatible redundancy option FTA, control automatically and instantly transfers to the backup I/O processor. Failover diagnostics guarantee that no input scan cycles are missed or delayed during the swap.

Q5: Can I mix this analog input module with other digital or serial communication modules in the same card file?

A: Yes. Any mix of high-level analog, low-level analog, digital, pulse, or serial interface processors can be selected and combined up to a total of 40 logical IOPs per controller without degrading communication or control performance.
