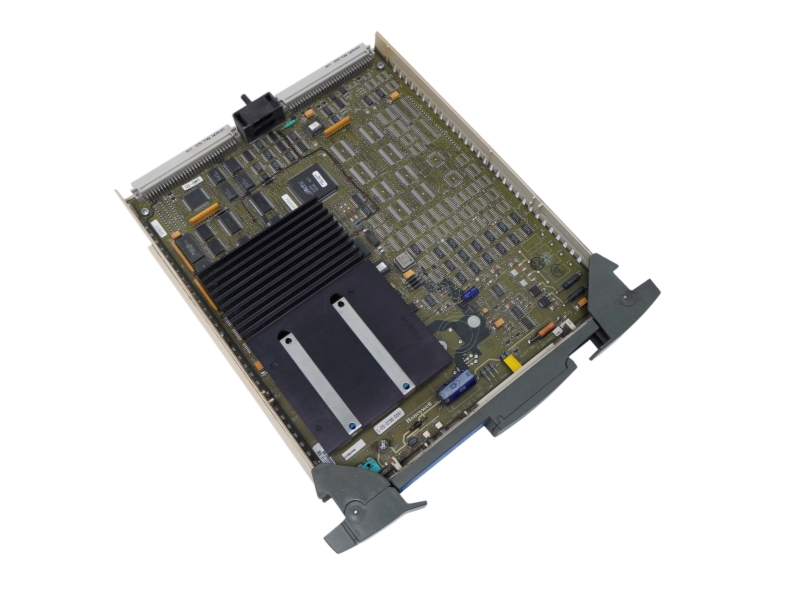

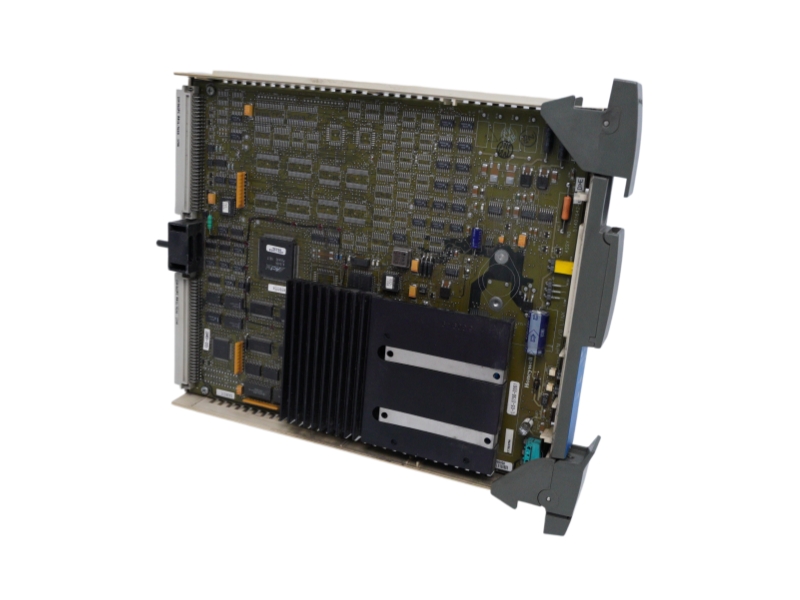

Q1: What is the correct procedure for setting the network address (Node ID) on the 51401642-150 board?
A: Before inserting the board into the rack, you must manually configure the hardware dip switches located on the side of the PCB to match your assigned UCN Node ID. Ensure the system is powered down or follow hot-swap guidelines if applicable, and verify that no two boards on the same UCN segment share the same address to prevent token-passing collisions.

Q2: The "ERR" or "FAIL" LED on the front panel is solid red. How do I troubleshoot this?
A: A solid red failure LED usually indicates an onboard self-diagnostic error or a fatal hardware initialization failure. First, try reseating the card firmly into the chassis slot. If the error persists after a reboot, it indicates damaged onboard components or memory corruption, and the module must be replaced.

Q3: What causes intermittent "UCN Cable A/B Drop" alarms associated with this module?
A: This is typically caused by loose coaxial BNC connections or faulty impedance terminators (75-ohm) at the end of the UCN segment. Check the physical drop cables connected to the transceiver associated with the 51401642-150 board. Ensure the connections are clean, free of moisture, and tightly locked.

Q4: Can I hot-swap the 51401642-150 board while the process is running?
A: Hot-swapping is only safe if the board is configured in a fully redundant pair (Primary/Backup). If a redundant partner card is actively controlling the network, you can extract the failed board using the ejector levers and insert the replacement. If it is a non-redundant standalone node, pulling the board will immediately drop the associated controllers off the network, which may trigger a process upset.

Q5: The board passes self-test but fails to establish communication with the Experion or TDC 3000 console. What is the issue?
A: Check for a firmware mismatch between the 51401642-150 board and the system software release. If the board's onboard EPROM contains a firmware version incompatible with your specific TDC 3000 system version, the server clock and system alarms will fail to synchronize, preventing data from cascading to the console display.
