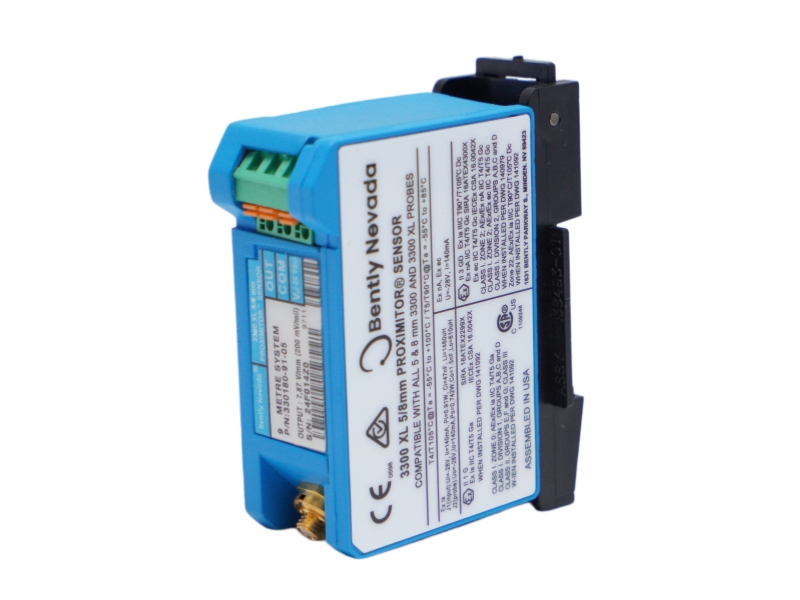

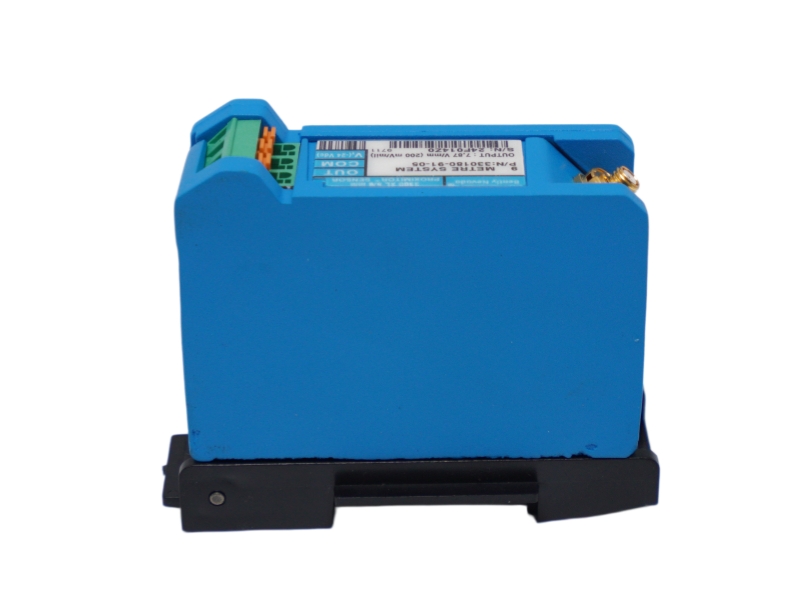

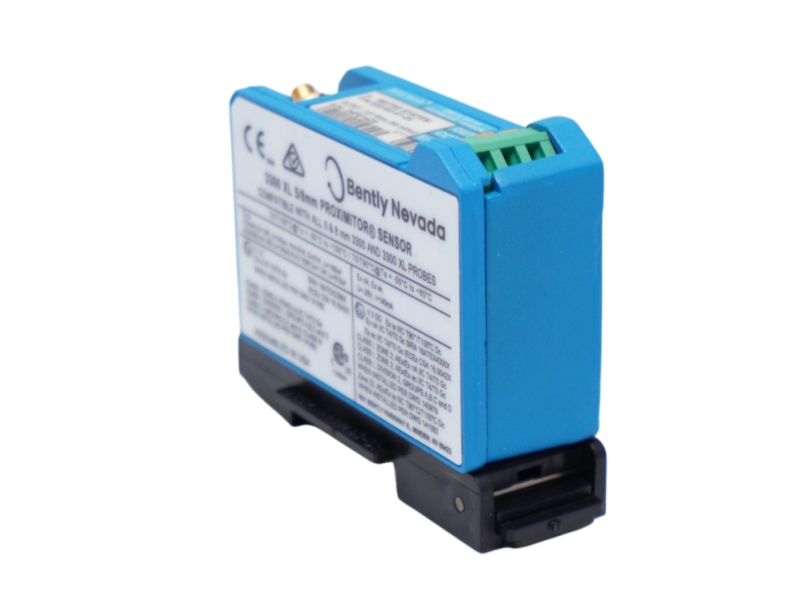

Q1: Can I mix an extended temperature range (ETR) cable with this standard 330180-91-05 Proximitor sensor?

A: Yes, the standard 330180-91-05 Proximitor sensor is fully compatible with extended temperature range components. You can land an ETR probe or an ETR extension cable onto this sensor loop. However, you must ensure the total combined length of the probe and cable equals exactly 9.0 meters. Crucially, introducing any ETR component into the loop will automatically downscale the overall tracking performance, restricting the final system accuracy limits to the wider bounds defined for ETR systems.

Q2: Why is the Incremental Scale Factor (ISF) output drifting out of spec on my small-diameter shaft assembly?

A: This is an electrical target sizing limitation. The calibrated scale factor of 200 mV/mil assumes a flat target area or a shaft diameter measuring at least 76.2 mm (3 inches). If you are gapping the sensor against a small-diameter shaft under 76.2 mm down to the absolute physical limit of 50.8 mm (2 inches), the curvature of the steel alters the return eddy current density. This change warps the calibration slope and alters the scale factor, requiring specialized target correction calibrations or custom monitor scaling overrides.

Q3: What do I check if my multimeter reads a stable voltage but the protection panel reports a "NOT OK" fault status?

A: First, disconnect the system loops and audit the DC resistance from the center conductor to the outer shield shell on your extension line. For a 9.0-meter total loop pairing, the nominal probe resistance parameters must measure between 7.45 and 9.87 depending on the integrated leading length, while the extension cable core resistance must track around 1.76 for an 8.0m line. If your multimeter shows an infinite impedance, it indicates a broken center core wire, whereas a 0 reading confirms a pinched short circuit across the triaxial jacket.

Q4: How does operating the 330180-91-05 at a voltage more positive than -23.5 Vdc affect loop accuracy?

A: The power network input must be maintained within the standard operating window. While the Proximitor sensor can accept supply power down to -17.5 Vdc when installed with certified non-incendive circuits, operating the hardware at a voltage more positive than -23.5 Vdc will physically restrict the available linear measurement range. The circuit will lack the necessary voltage headroom to drive the full -17 Vdc output curve, leading to early signal saturation before reaching the upper 80 mil gap threshold.

Q5: Why am I experiencing signal spikes when routing the sensor coaxial cable near high-voltage motor lines?

A: While the aluminum housing provides RFI/EMI immunity satisfying CE mark criteria, the flexible field wiring remains vulnerable to magnetic field induction. To prevent data corruption from 60 Hz magnetic fields (which can induce up to 0.0348 mils pp per Gauss on a 9m system), you must ensure that all field lines are run using shielded twisted-pair or triad cables and isolated within grounded steel conduits away from parallel high-voltage AC electrical distribution runs.
