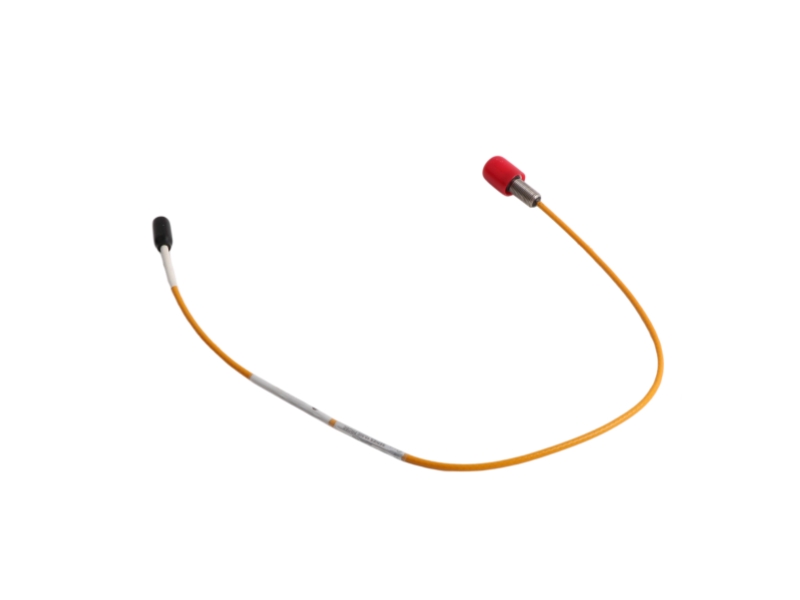

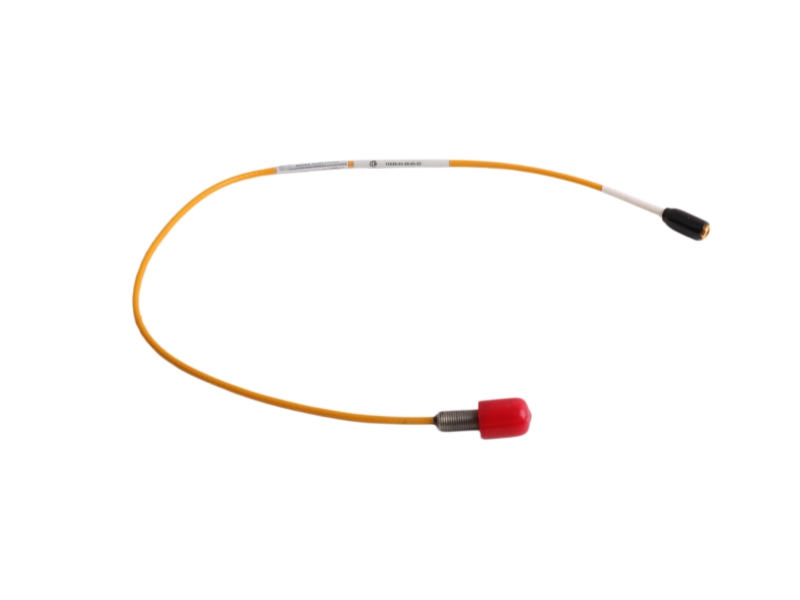

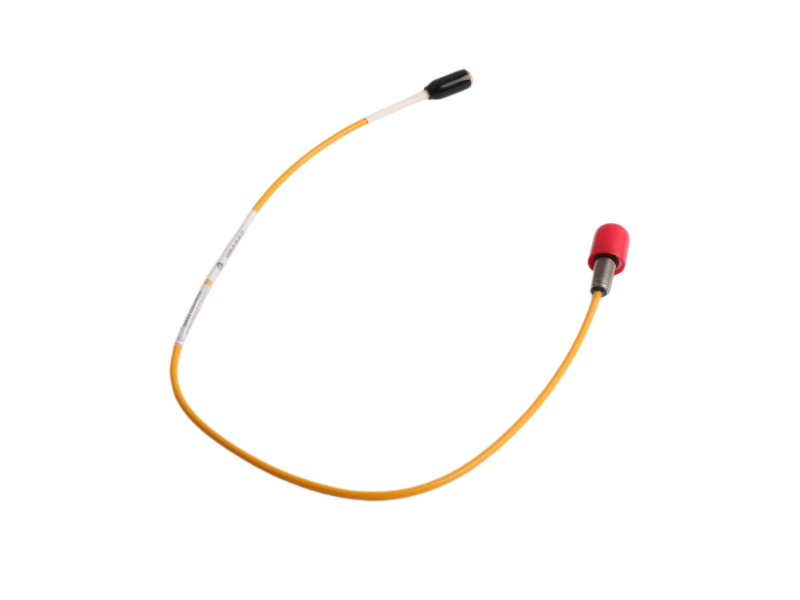

Bently Nevada 10030-05-30-05-02 Metrix 10000 Series 8mm Reverse Mount Proximity Probe 5mm Unthreaded 30mm Case 0.5m Cable

Inquiry now

General Information

Model number	10030-05-30-05-02
Manufacture	BENTLY NEVADA
Country of origin	USA
Condition	Brand New
Dimension	55.5x1.5x1.5cm
Weight	0.04kg
Lead time Warranty	in stock
MOQ	1 pcs

Core Description

The 10030-05-30-05-02 is a high-reliability Metrix 10000 series proximity probe featuring an 8mm tip diameter and M10X1 case threads. Fully compatible with legacy 7200 series rack monitors and extension cables, this reverse-mount unit works seamlessly in tight machinery housings to deliver stable shaft displacement tracking, robust ProxMatch component coding, and dependable functional safety under strict API 670 standards.

Specific Application

Radial vibration and axial thrust position measurement on machinery currently utilizing legacy 7200 series rack monitoring systems.
Reverse-mount proximity sensor installations requiring an internal housing arrangement paired with a Model 5499 mounting assembly.
Space-constrained machinery housings where an ultra-short 0.5-meter integrated probe lead connects directly to nearby junction boxes.

Ordering Information

Model Number	Tip Diameter	Case Threads	Unthreaded Length (AA)	Case Length (BB)	Probe Length (CC)	Armor Option
10030-05-30-05-02	8 mm	M10X1	05 = 5 mm	30 = 30 mm	05 = 0.5 m	02 = No Armor

System Compatibility

Monitor Compatibility: Fully interchangeable with legacy 7200 series 8mm proximity transducer systems.
Extension Cable Link: Interfaces with the same series extension cables to achieve a matched 5-meter or 9-meter total system length.
Target Material Standard: Factory-calibrated for high-precision tracking against standard AISI 4140 steel target tracks.

Alternative Models & Functional Differences

Metrix 10030-05-30-10-02: Shares the identical 8mm tip diameter, M10X1 housing thread, 5mm unthreaded portion, and 30mm case length, but features an extended 1.0-meter integrated cable instead of the short 0.5-meter cable.
Metrix 10026* Series: Designed as an 8mm reverse-mount equivalent but utilizes English 3/8"-24 case threads, a 0.2-inch unthreaded length, and a 1.2-inch case length instead of metric dimensions.
Standard Forward-Mount Probes: Threaded into machine casings from the outside and secured with a standard jam nut, whereas the 10030* reverse-mount probe requires rear insertion and an external Model 5499 mounting housing.

Installation & Troubleshooting FAQ

Q1: What unique installation accessory is mandatory to install this reverse-mount probe?

A: Installing this reverse-mount probe requires a Metrix Model 5499 mounting assembly to correctly position and hold the sensor cartridge inside the machine casing.

Q2: What is the correct protocol for tightening the coaxial electrical connectors during field installation?

A: Connect a standard miniature hex connector to a companion click-type extension cable connector finger-tight, then execute an additional 1/8 turn utilizing a wrench and pliers to establish a reliable, vibration-resistant bond.

Q3: Why is my monitoring system displaying erratic or false vibration readings during slow roll operation?

A: This issue is typically caused by mechanical or electrical runout on the shaft track. Eddy current sensors are highly sensitive to surface defects like scratches, rust, residual magnetism, or heat-treatment variations, which they misread as actual dynamic shaft movement.

Q4: How do tight counterbore clearances or nearby metallic shoulders distort the calibration?

A: If the counterbore surrounding the 8mm probe head is too narrow, a side effect occurs where the electromagnetic field couples with the adjacent casing walls. This tracking error results in reduced sensitivity and a distorted calibration curve.

Q5: What sealing practices should be followed to prevent data glitches during liquid washdowns?

A: The standard probe features a built-in seal between the Ryton tip and the stainless steel case, but it is not submersible. To prevent fluid ingress, you must ensure that all coaxial cable connection junctions are fully covered with protective connector sleeves or waterproof self-fusing tape.
