General Information

Core Description

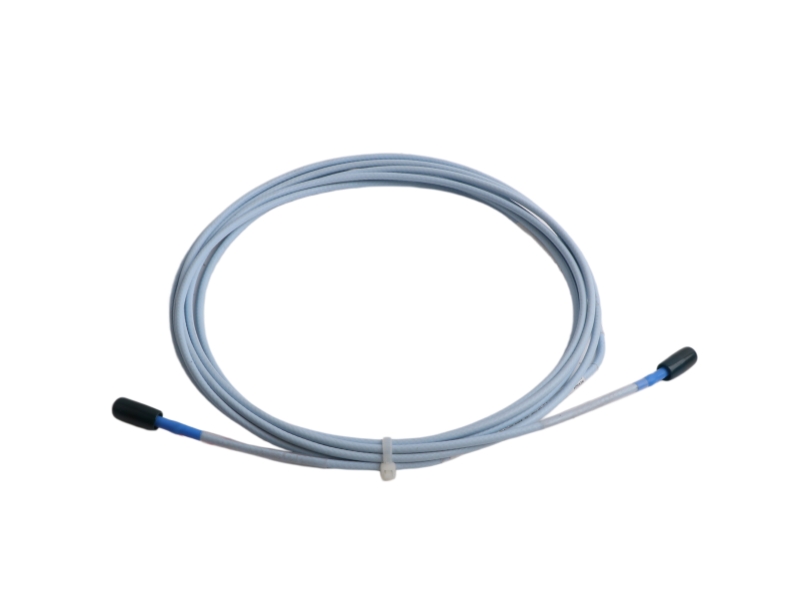

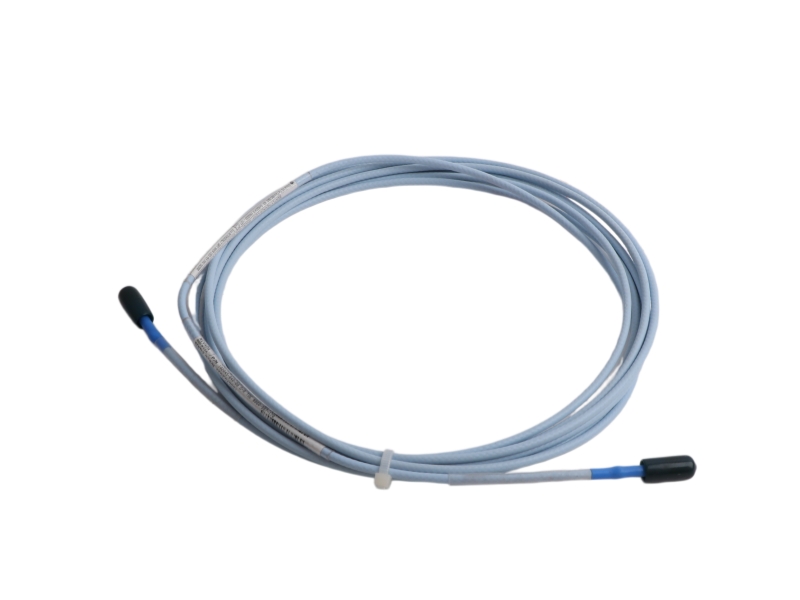

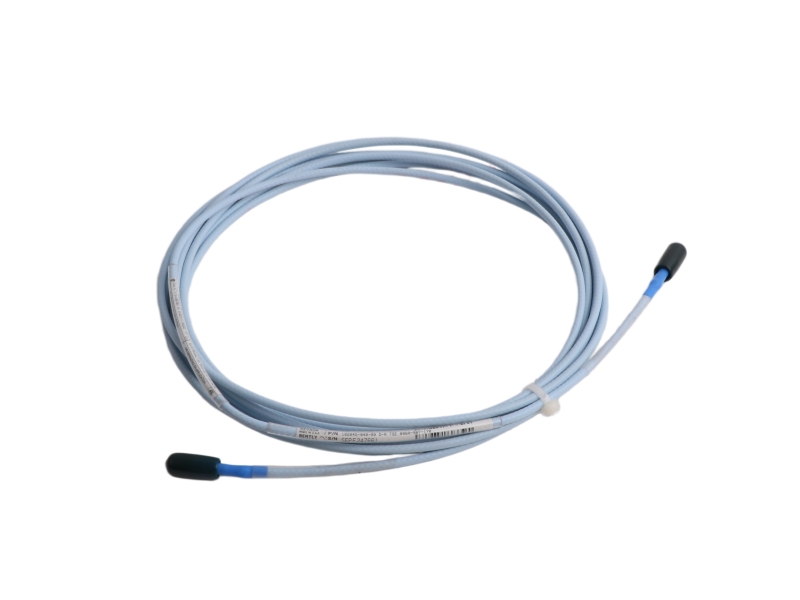

The 102045-040-00 is a high-performance industrial signal transmission line from the Bently Nevada Trendmaster system series. Engineered specifically for automated asset condition tracking networks, this premium 4.0-meter extension cable features a specialized low-noise coaxial design with gold-plated connectors, working seamlessly with dynamic eddy current sensors to deliver stable, high-fidelity waveform transmission without signal loss.

Specific Application

• Connecting Trendmaster-compatible proximity sensors to localized multi-channel data collection modules or scanning manifolds.
• Routing dynamic machine vibration and axial position waveform signals through clean conduit systems behind thick bearing housings.
• Implementing cost-effective distributed machinery health surveillance links where physical environmental layout allows for unarmored cabling infrastructure.

Ordering Information

System Compatibility

Transducer Integration: Natively matches specific Bently Nevada Trendmaster automated scanning series proximity probes and companion driver electronics.

Network Nodes: Interfaces directly with Trendmaster DSM or asset condition tracking input modules.

·arget Material Standard: Fully compatible with high-frequency RF transmission matching factory-calibrated AISI 4140 steel target setups.

Alternative Models & Functional Differences

Bently Nevada 102045-040-01 (Armored Variant): Shares the identical 4.0-meter length and underlying coaxial design, but adds flexible stainless steel armor cladding over the outer sheath for harsh environments prone to crushing or sharp mechanical cuts.

Bently Nevada 330130 Series (3300 XL Extension Cables): Designed for the premium 3300 XL 8mm system. They feature integrated ClickLoc gold-plated connectors and specific capacitance parameters optimized exclusively for 3300 XL Proximitor sensors, rendering them incompatible with legacy Trendmaster hardware grids.

Alternative Length Variants (e.g., 102045-045-00 / 102045-080-00): Deliver alternative physical cable spans (4.5 meters or 8.0 meters) to complete specific 5-meter or 9-meter overall system configuration budgets depending on field installation layouts.

Installation & Troubleshooting FAQ

Q1: What does the specific "-040-00" suffix signify in the component configuration code?

A: The configuration string breaks down to specify unique hardware options: the middle segment "-040" designates a physical length of exactly 4.0 meters (13.1 feet), and the trailing "-00" specifies the unarmored outer jacket format.

Q2: What is the correct protocol for tightening the miniature coaxial connectors in the field?

A: Connect the male hex fitting to the matching female connector finger-tight, then execute an additional 1/8 turn using an open-ended wrench to secure the coupling against machine vibration without stripping the threads.

Q3: Why is my condition monitoring platform registering erratic signal swings or a high noise floor?

A: This interference pattern is frequently caused by a loose connection junction or conductive moisture ingress. Ensure the terminal junctions are completely bone-dry and sealed using original silicone connector protectors or self-fusing waterproof rubber tape.

Q4: How should technicians handle the minimum bend radius constraint during routing?

A: For this unarmored coaxial line, ensure the bend trajectory maintains a minimum radius of 1.0 inch (25.4 mm). Forcing the cable into sharp kinks or tighter corners will distort the internal impedance profiles and degrade sensor signal accuracy.

Q5: Can this extension cable layout be safely routed adjacent to high-voltage equipment conduits?

A: No. Coaxial transducer leads carry high-frequency low-voltage signals and must never be routed parallel to heavy AC power infrastructure lines. To prevent electromagnetic cross-talk or data distortions, run the lines inside dedicated isolated low-voltage instrumentation trays.
