General Information

Core Description

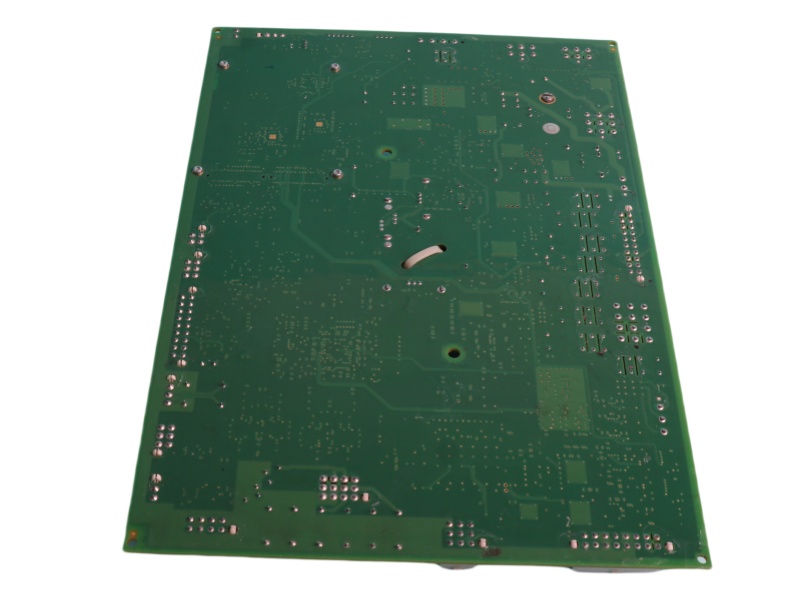

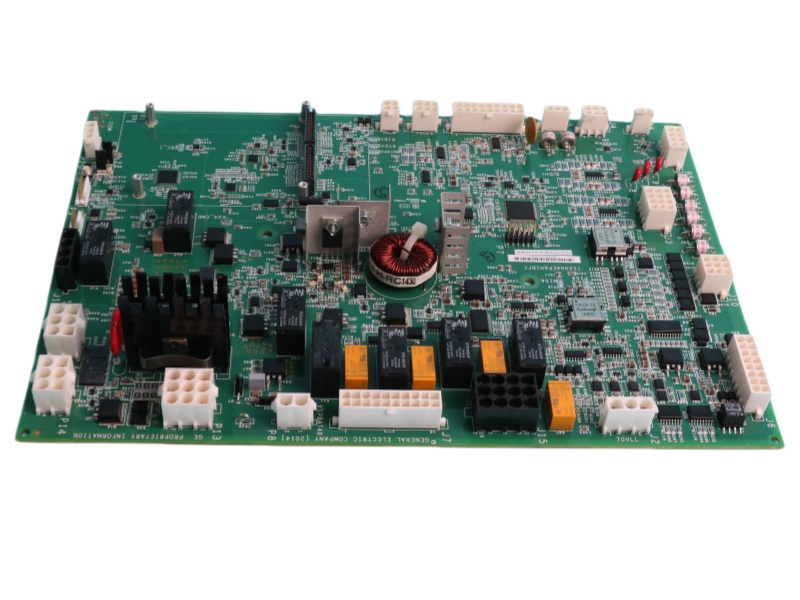

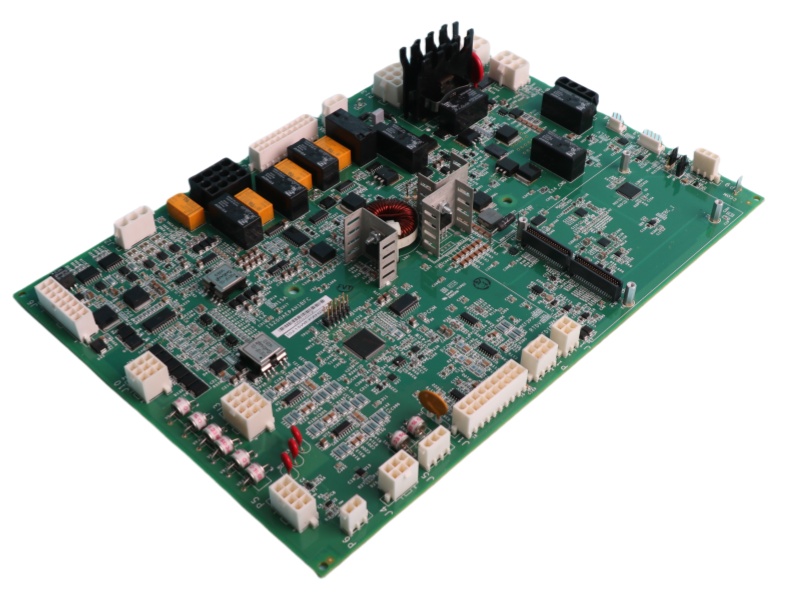

IS215WETAH1C is a GE Speedtronic Mark VIe WETA (Wind Energy Top Box A) control and communication module featuring VME bus architecture and IONet/UDH high-speed redundant backplane connectivity. Fully compatible with Mark VIe turbine control systems, this unit works seamlessly with UCSB/UCCA controllers and UCV processors to deliver deterministic control algorithms, advanced signal conditioning, and ruggedized performance for harsh wind turbine and steam turbine environments.

Specific Application

• Wind turbine nacelle auxiliary system control – serving as the central I/O hub for hydraulic, lubrication, cooling, and yaw subsystem management in 1.5–10 MW wind turbines
• Steam and water turbine control assemblies – providing speed control (0–6000 rpm), load regulation, protection logic (overspeed, vibration, axial displacement), and startup sequencing for power generation turbines
• Remote I/O concentration in harsh nacelle/hub environments – operating at Purdue Model Level 1, concentrating field signals from pitch limit switches, blade position encoders, vibration sensors, and drive status relays for transmission over the IONet backplane
• Turbine Ethernet communication and power distribution hub – converting system power to isolated 28 VDC outputs for field instrumentation while serving as a gateway feeding real-time turbine performance data to SCADA and DCS systems

Alternative Models and Differences

System Compatibility

The IS215WETAH1C is designed for the GE Speedtronic Mark VIe control platform . It integrates with:

• Mark VIe UCSB and UCCA controllers
• Mark VIe UCSA/UCSB controller family
• IONet/UDH high-speed redundant backplane networks
• Mark VIeS Safety Management System (IEC 61508 compliant)
• ControlST software suite for programming, configuration, and diagnostics

Features

1. Core Auxiliary Control Hub for Wind Turbine Systems
Serves as the WETA (Wind Energy Top Box A) interface module, providing centralized logic control, status monitoring, and safety interlocking for hydraulic, lubrication, cooling, and yaw subsystems within the wind turbine nacelle.

2. Extensive I/O and Communication Capabilities
Features 32× 24V DC discrete inputs, 16× isolated relay outputs, and 2× differential RS-422 incremental encoder channels. Communicates via IONet/UDH high-speed backplane, Ethernet, and RS-485 for seamless integration with the Mark VIe controller and SCADA systems.

3. High Galvanic Isolation and Industrial-Grade Protection
Provides 2500V AC channel-to-backplane galvanic isolation to block high-voltage transients, VFD EMI, and lightning-induced surges. Designed with full conformal coating and IP65 sealing for harsh offshore and high-humidity environments.

4. Extended Temperature Range and Ruggedized Design
Engineered for extreme conditions with an operating temperature range of -40°C to +70°C, 10G peak vibration resistance (5–2000Hz), and wide humidity tolerance (5–95% non-condensing), ensuring reliable performance in rotating nacelle environments.

5. Hot-Swap Capability and TMR Redundancy Support
Supports online replacement in redundant system configurations and is compatible with Simplex, Dual, and Triple Modular Redundant (TMR) setups, maximizing turbine uptime and minimizing unplanned maintenance climbs.

Theory of operation

The IS215WETAH1C operates as a field signal conditioning and I/O concentration hub at Purdue Model Level 1, installed in the wind turbine nacelle or hub top box.

Downstream, it directly interfaces with harsh field devices such as pitch limit switches, blade position encoders, vibration sensors, and drive status relays . The module performs local signal debouncing, level conversion, over-current protection, and analog-to-digital conversion on these inputs.

Upstream, it transmits conditioned and digitized data to the main Mark VIe controller (e.g., UCV) over the high-speed IONet/UDH backplane . It simultaneously receives configuration and command data from the controller for execution . Full channel-to-backplane galvanic isolation blocks high-voltage transients and EMI, while its ruggedized design withstands extreme vibration, temperature cycling, and moisture in rotating nacelle environments.
