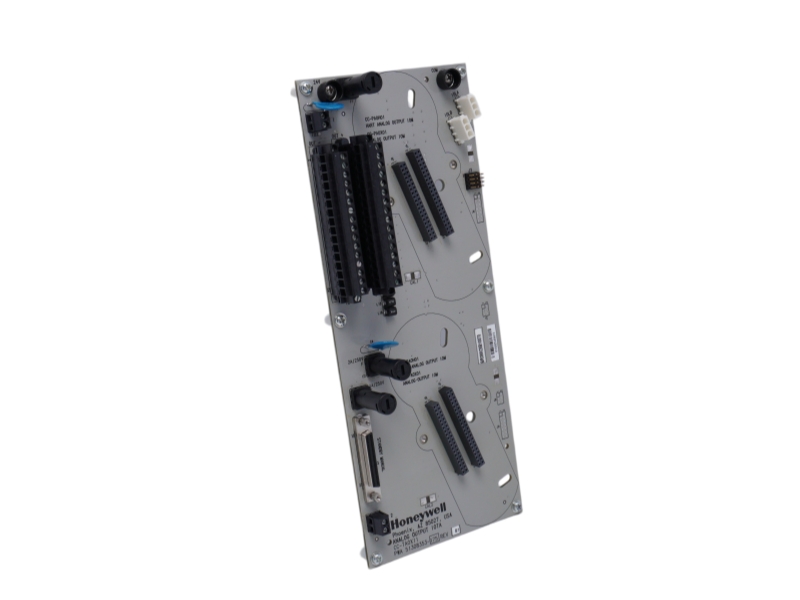

Q1: Does the CC-TAOX11 assembly support removing or replacing an analog output module while the chassis is powered?

A: Yes, the CC-TAOX11 architecture is fully engineered to support Removal and Installation Under Power (RIUP). You can safely extract or seat a Series C AO module without dropping power to the terminal assembly backplane or causing packet loss over the main IOTA communications bus. However, you must exercise extreme caution and verify that the control strategy configuration inside Control Builder is set up correctly before downloading data to a newly replaced module.

Q2: The upper Analog Output Module on my CC-TAOX11 base lost power, but the field valves remain operational. What caused this?

A: This points to a blown F1 fuse on the redundant IOTA board. The CC-TAOX11 splits module logic protection across separate components: fuse F1 covers the upper IOM slot, while fuse F2 covers the lower IOM slot. If one of these fuses blows, power is immediately interrupted to that specific module kernel, but the field wiring loop continues to receive uninterrupted power and active drive commands from the remaining healthy module.

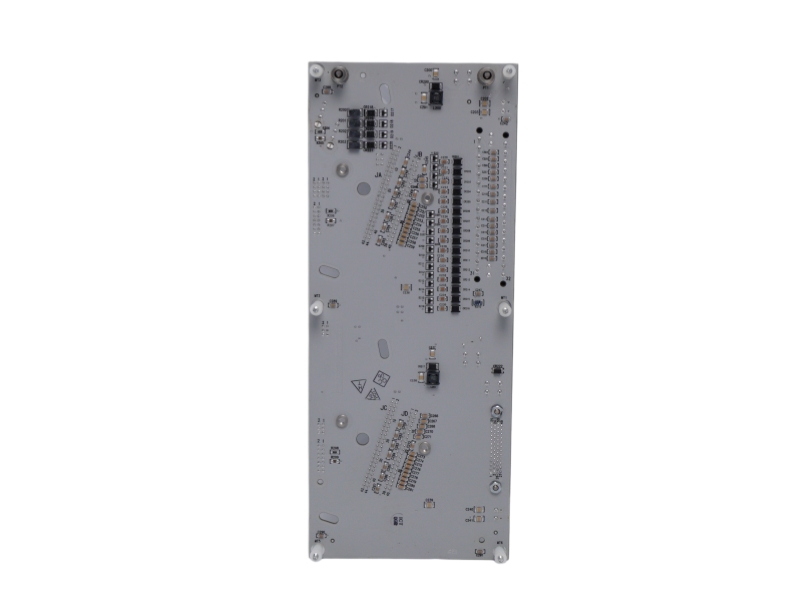

Q3: What are the exact structural electrical specs and locations for the auxiliary fuses on the CC-TAOX11?

A: The assembly houses two distinct classes of fast-acting 5x20mm glass fuses on its backplane layer. The main module protection lines (Reference Designators F1 and F2) require 2A fast-acting fuses (Part Number 51190582-220). The standby manual connector loop protection line (Reference Designator F3) requires a smaller 1A fast-acting fuse (Part Number 51190582-210). Replacing these lines with slow-blow or incorrectly rated alternatives will compromise module safety and void industrial certifications.

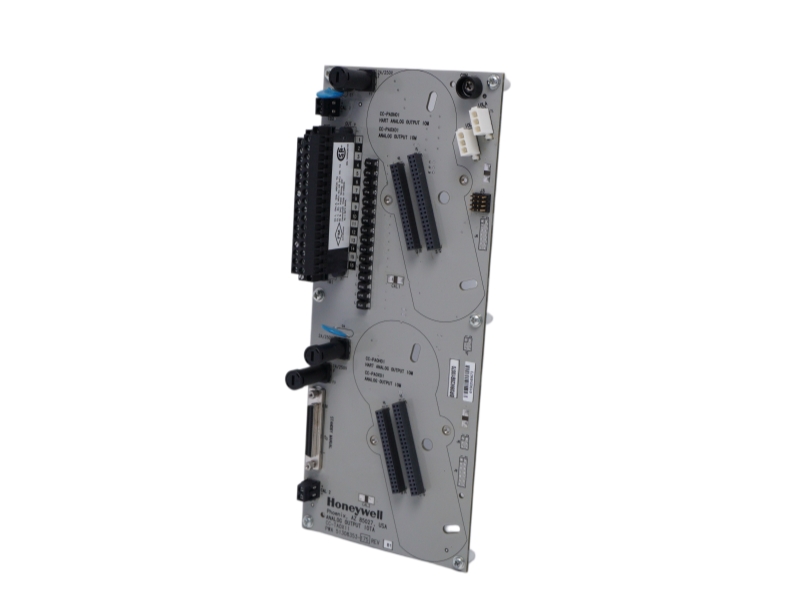

Q4: Why am I experiencing signal drops or terminal looseness on a newly deployed CC-TAOX11 assembly?

A: This usually indicates a torque or wiring retention fault on the terminal plugs. The field lines do not land directly onto fixed chassis terminals; instead, they route through two removable 16-pin terminal plug-in assemblies. Ensure that the plug units are fully snapped into their matching IOTA receptacles and that the terminal screws are snug to prevent structural vibrations from backing out individual conductors.

Q5: What system validation steps must be completed inside the Honeywell software environment after swapping an IOM on this IOTA?

A: Seating a replacement module onto the active CC-TAOX11 backplane is only the first step. To fully link the new hardware into your process tree, you must open the Honeywell Control Builder software utility. From the project explorer, navigate to your I/O block, update the hardware serial registry mapping if prompted, and complete a full configuration download to ensure the card’s internal parameters line up with your active control strategy.
