General Information

Core Description

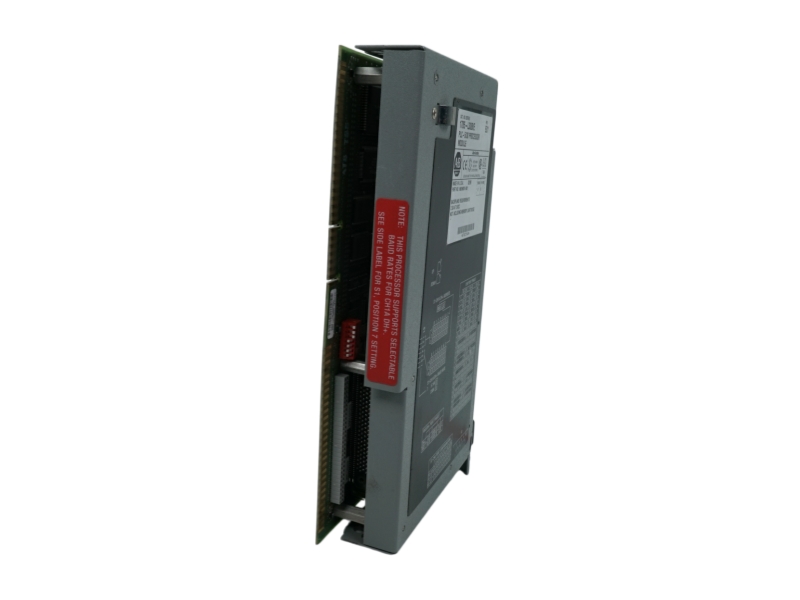

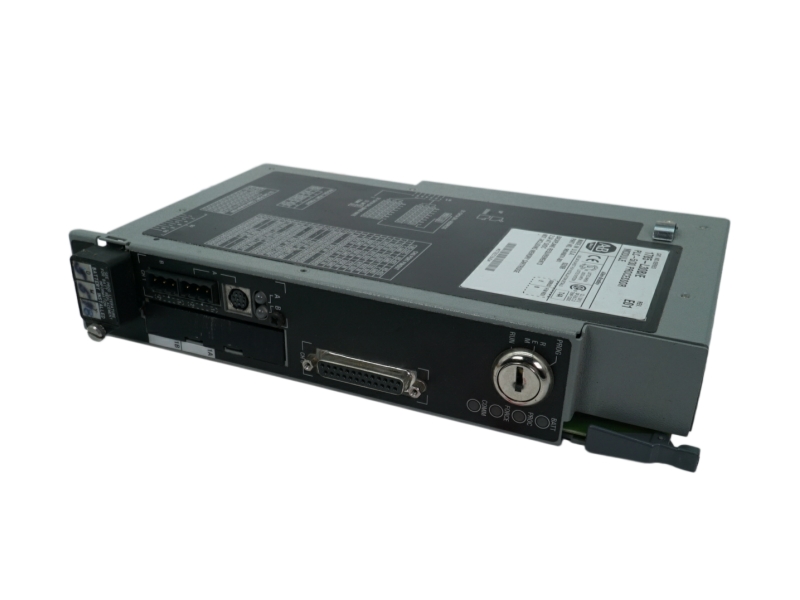

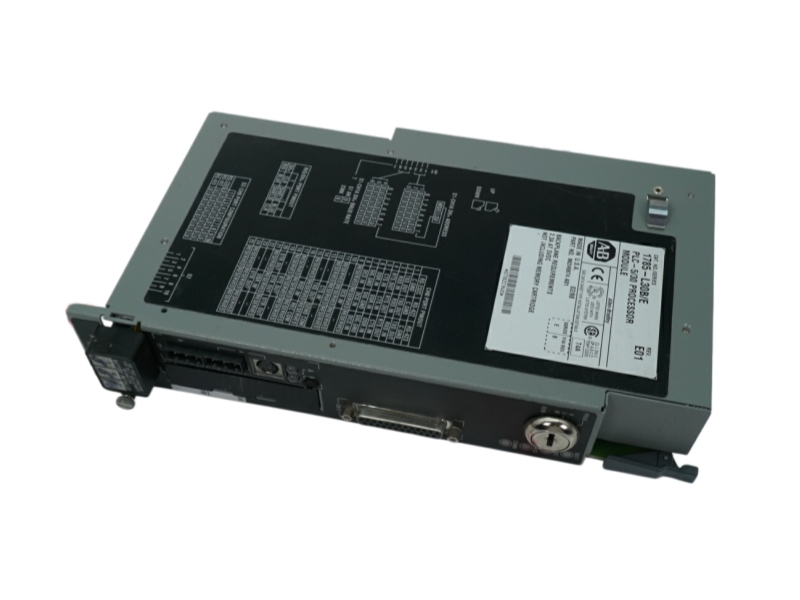

Designed for large sequential and complex regulatory control applications, the 1785-L30B is an Allen-Bradley PLC-5/30 enhanced programmable automation controller featuring 32K words of maximum user memory. This single-slot chassis-resident processor handles a total capacity of up to 1,024 complementary industrial I/O points across diverse multi-platform networks. Built for high-reliability factory floor deployments, the module features dual integrated channels configurable for Data Highway Plus (DH+) or Universal Remote I/O links, eliminating heavy localized computing overhead while maintaining a robust mean time between failures (MTBF) rating.

Specific Application

• Plant-Wide Process Regulation: Managing multi-tasking ladder logic, sequential function charts (SFCs), structured text, and function block loops in continuous processing plants.
• Supervisory SCADA Network Hubs: Coordinating remote station telemetry (e.g., oil wells, gas pipelines, tank farms) using point-to-point, master, or slave DF1 serial protocols.

Ordering Information

Enhanced PLC-5 controllers

System Compatibility

• System Compatibility: The 1785-L30B controller requires a dedicated 1771 universal I/O chassis and seats directly into the left-most slot, compatible with chassis sizes 1771-A1B (4-slot), 1771-A2B (8-slot), 1771-A3B (12-slot), and 1771-A4B (16-slot). Backplane power is pulled directly via slot-mounted or standalone 1771 power supplies, including the standard AC/DC 1771-P4S, 1771-P5, 1771-P6S, and 1771-P7 units. The processor seamlessly manages native 1771 digital/analog modules, while extending network connectivity across 1746 SLC I/O, 1734 POINT I/O, 1794 FLEX I/O, and 1769 Compact I/O via field adapter bridges.
• Direct Network & Software Alternates: 1785-L20E (Ethernet PLC-5/20) and 1785-L20C15 (ControlNet PLC-5/20).
• Key Differences from Alternates (1785-L30B vs. Ethernet / ControlNet Models):
• Network Topology & Ports: The Enhanced 1785-L30B provides 2 DH+/Remote I/O channels alongside a configurable RS-232/422A/423A serial port, but lacks onboard modern network layers. In contrast, the 1785-L20E trades memory size (16K words) to provide a built-in standard TCP/IP Ethernet port with an embedded web diagnostics server. Similarly, the 1785-L20C15 features an onboard 5Mbps deterministic ControlNet port with media redundancy capabilities.
• Memory Limits: The 1785-L30B offers a superior 32K word memory footprint, providing double the logic execution space of the 16K word 1785-L20E or 1785-L20C15 units, making it better optimized for legacy code migrations that do not require plant-office network integration.

Installation & Troubleshooting FAQ

Q1: What are the serial connection options for a 1785-L30B, and how do I match them to my SCADA infrastructure?

A1: The front-panel serial port on the 1785-L30B can be configured for RS-232, RS-423, or RS-422A electrical standards. When running in System Mode, it utilizes the industrial DF1 protocol. You must match the DF1 sub-mode to your architecture: select Point-to-Point (Full-Duplex) for a direct link to an HMI or programming laptop; select DF1 Master (Half-Duplex) if this controller is polling a multi-node remote telemetry network; or select DF1 Slave if the 1785-L30B acts as a local node responding to a main supervisory computer.

Q2: How can I add high-speed EtherNet/IP connectivity to my existing 1785-L30B without replacing the entire processor?

A2: You can expand the module by purchasing and sliding in a 1785-ENET Ethernet Interface Sidecar Module. This single-slot expansion component attaches directly to the left side of any Series B or later Enhanced 1785-L30B controller. It adds full TCP/IP Ethernet and industrial EtherNet/IP protocols for data exchange with host computers and custom web browser diagnostics, without sacrificing or consuming your original DH+ or Universal Remote I/O ports.

Q3: What nonvolatile memory options are available to safeguard my 1785-L30B logic profile against a total backplane power loss?

A3: To permanently back up your program files and data tables against battery drainage or backplane dropouts, you should install an external EEPROM plug-in cartridge. For the 32K word capacity of the PLC-5/30, order catalog number 1785-ME32 (32K words memory size). If you plan to downsize or upscale your logic profile in the future, the architecture also supports the 1785-ME16, 1785-ME64, and 1785-ME100 modules.

Q4: My 1785-L30B system requires higher availability and fault tolerance. How is a hot backup configuration achieved?

A4: The Enhanced 1785-L30B processor family natively supports hot backup configurations through specialized 1771 infrastructure. For a robust, high-availability control layer, you must pair the controllers with a ControlNet Backup Module (1785-CHBM cartridge). In this layout, a primary and a secondary 1785-L30B continuously read remote field inputs and mirror program execution simultaneously. If the primary processor shuts down, the secondary controller locks onto the active output lines instantly without needing to slow-load data tables across the bus.

 For modern 32-bit Windows environments, the standard software tool is the RSLogix 5 family. RSLogix 5 supports free-form ladder logic, sequential function charts (SFCs), and structured text editors compliant with IEC 1131-3 requirements. If you have older programming files created in legacy DOS or non-32-bit Windows A.I. Series software, your capital investment is completely protected; those historical database structures can be imported directly into RSLogix 5 without rewriting the system code.
