General Information

Core Description

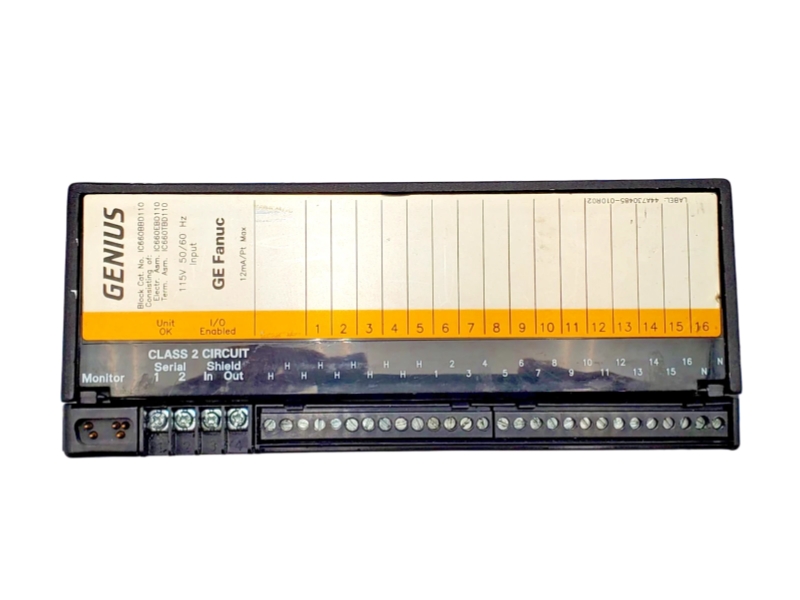

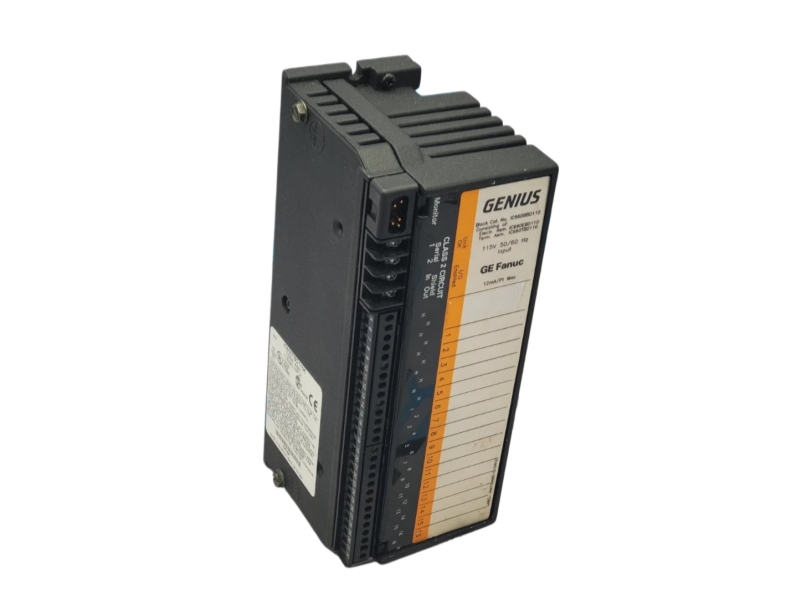

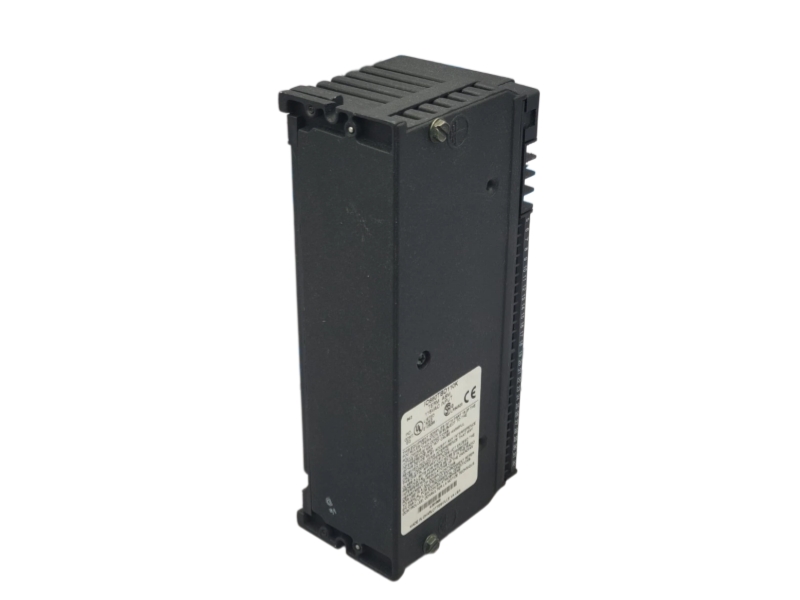

The IC660BBD110 is an intelligent, standalone GE Fanuc Genius I/O discrete input block featuring sixteen 115VAC circuits split into two independent banks. Fully compatible with standard industrial serial buses, this unit works seamlessly with line-powered binary sensors to deliver software-configurable On/Off thresholds, advanced Open Wire detection, and stable short-circuit diagnostics without external power supplies.

Specific Application

• Monitoring heavy-duty alternating current field status signals from contact closures, pushbuttons, and industrial limit switches on standard 115VAC power grids.
• Integrating solid-state two-wire or three-wire proximity sensors that mandate configurable input filter times to suppress transient electrical contact bounce.
• Establishing isolated distributed input networks across processing plants where diagnostic reporting for broken sensor wiring is required on an individual channel basis.

Ordering Information

System Compatibility

Serial Bus Interface: Interfaces seamlessly with standard host controllers and distributed networks over the multi-drop Genius serial bus via terminals 1 to 4.

Configuration Devices: Fully compatible with the legacy Hand-held Monitor model IC660HHM501 for setting bus addresses and operational profiles.

Input Infrastructure: Connects natively to alternating current logic loops operating within an active voltage range of 93 to 132 VAC at 47 to 63 Hz.

Alternative Models & Functional Differences

IC660BBD110 (Complete Block Assembly): Combines both the removable processing electronics assembly and the stationary terminal base with physical field wiring connectors into a single complete factory order.

IC660EBD110 (Electronics Assembly Only): Represents the internal processing component alone. It allows quick field hot-swapping via a block puller tool to update the module brain without disturbing active field wiring structures or losing pre-saved software profiles.

IC660TBD110 (Terminal Assembly Only): The base passive structural frame and terminal strip containing the physical terminal screws rated up to 5.0 Amps, purchased strictly to replace damaged field wire connection points.

Installation & Troubleshooting FAQ

Q1: What specific wiring constraints apply when using the additional H and N block terminals?

A: The extra H and N connection terminals are provided solely for local loop wiring convenience. You must never daisy-chain the main incoming power bus through these terminal points to cross-feed separate physical blocks, as this configuration can cause localized terminal overheating or permanent destruction of the base block assembly.

Q2: Why is it vital to link the circuit power disconnect mechanism concurrently with the block line source?

A: Because the internal block power circuitry is derived directly from the same input lines that feed the active field sensors. If you isolate block power but leave field-side circuit loops live, the internal logic rail can inadvertently back-power and reboot itself when multiple field inputs activate concurrently.

Q3: What supplemental hardware components are mandatory to reliably execute Open Wire diagnostics on standard dry contacts?

A: To track Open Wire fault occurrences on a non-powered dry contact loop, you must install a 22K ohm external resistor directly across the terminal contacts of the field input switch. This resistor provides a tiny, continuous tracking current that allows the internal voltage sensing processor to verify path continuity while the main switch rests open.

Q4: How do the primary front-panel diagnostic LED indicators behave when a channel fault is active?

A: The main unit status block features two primary LEDs: Unit OK and I/O Enabled. If a specialized channel diagnostic fault triggers while the master central processing unit is actively scanning the serial bus network, the Unit OK LED will blink while the I/O Enabled LED remains constantly illuminated.

Q5: What grounding practices must be followed during installation to avoid hazardous electrical shock conditions?

A: Mounting the base frame using standard 8-32 screws alone is never sufficient to establish a safe ground path. You must link the dedicated green ground screw terminal directly to a verified earth ground system using a short copper lead with a minimum wire size of AWG #12.
