General Information

Core Description

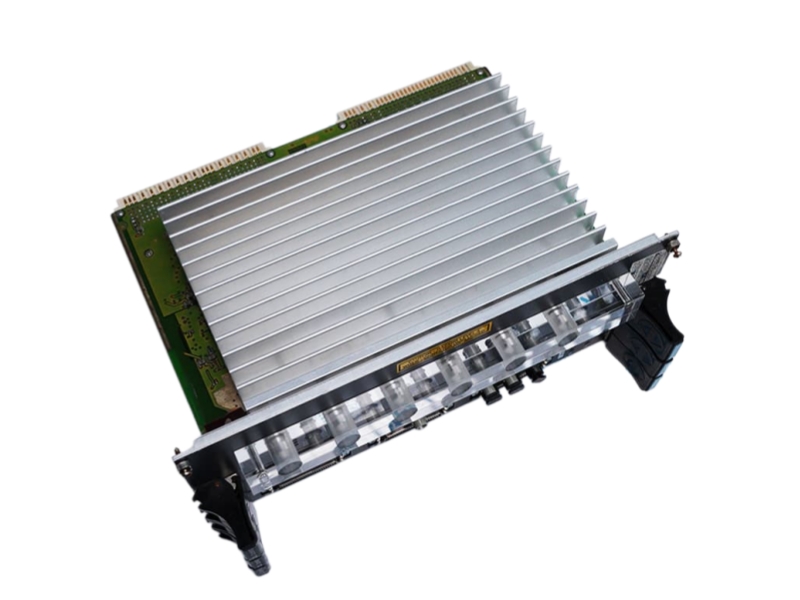

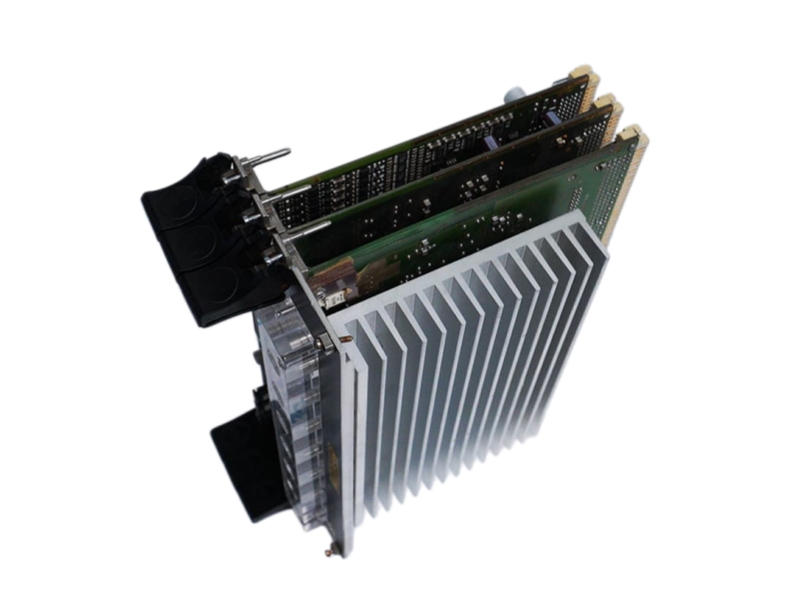

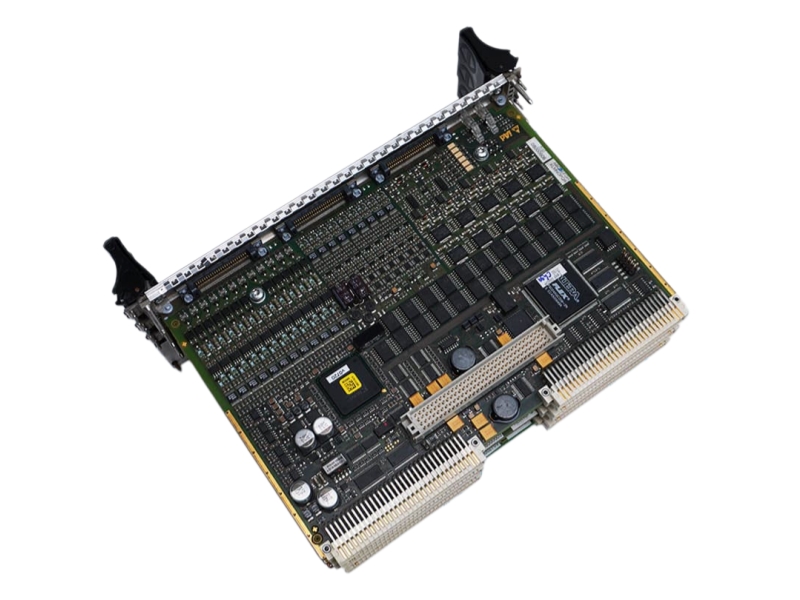

The 6DD7060-1AA06 is a high-performance SIMATIC TDC SM500 storage expansion component configured specifically for deterministic, real-time closed-loop control tasks. Engineered for direct deployment within advanced multi-processor backplanes, this module dramatically scales up data buffing capabilities to ensure steady signal processing across high-velocity machinery. It mitigates latency bottlenecks in processing intensive algorithmic operations, enabling synchronous automation across complex rolling mills and large-scale industrial drives.

Specific Application

• High-Dynamic Drive Vector Control: Expands the real-time parameter storage required for sub-millisecond calculation loops in complex multi-axis motor systems.
• Continuous Industrial Process Logging: Serves as a localized high-speed buffer for data trending and fault recording during high-velocity production cycles in steel plant cold-rolling sectors.
• Large-Scale System Automation: Optimizes control processing capacity inside multi-rack SIMATIC TDC control schemes governing power generation turbines and massive paper mills.

Ordering Information

System Compatibility

Host Control Platforms: Exclusively operational within the Siemens SIMATIC TDC hardware framework and works in tandem with CPU modules (such as the CPU551 or CPU555).

Software Tooling: Fully configurable using the SIMATIC STEP 7 environment bundled with CFC (Continuous Function Chart) programming extensions.

Bus Architecture: Utilizes proprietary high-speed internal bus interlinks to establish parallel multi-processor communications with negligible access delays.

Alternative Variations & Structural Differences

6DD1600-0AH0 (SIMATIC TDC CPU551): This is a dedicated central processing unit card running full user-logic automation code. The 6DD7060-1AA06 operates purely as a hardware-level storage auxiliary to hold large calculation matrix arrays for the host CPU.

6DD1640-0AH0 (SIMATIC TDC Global Memory Card): Designed for global system-wide variables accessed across multiple racks. In contrast, the 6DD7060-1AA06 functions as a localized, high-speed slot-bound extension optimized for tight sub-loop calculations on a single rack segment.

Installation & Troubleshooting FAQ

Q1: What mechanical orientation rules must be followed when seating the module into the subrack?

A: Turn off all system power supplies entirely prior to inserting the unit. Gently align the upper and lower guide tracks of the target rack slot before sliding the module backward. Push firmly to ensure the multi-pin rear connectors seat completely into the active backplane bus, then secure the retention screw assemblies tightly to counteract machinery vibrations.

Q2: How can a configuration engineer assign user tasks to this expanded memory allocation?

A: You must run the CFC engineering utility within the SIMATIC STEP 7 framework to designate the memory space. The expanded blocks are addressed using specific physical system parameters, allowing you to route intensive algorithm tracking arrays or extensive fault buffers directly onto this module.

Q3: What steps should be taken if the main CPU reports an access timeout or addressing conflict error?

A: This behavior typically implies either physical pin misalignment or incorrect bus addressing variables in your STEP 7 hardware manager configuration. Extract the module and check for bent backplane interface pins. Verify that the hardware firmware configuration matches your offline project file precisely, then execute a complete system rack restart.

Q4: Does this module demand specialized localized cooling structures in packed control cabinets?

A: The board is engineered to function under typical ambient subrack air currents. However, because it handles intensive high-speed data exchanges alongside high-heat processor cards, you must maintain clean air filters and ensure operational ventilation fans are active to prevent localized thermal accumulation.
