General Information

Core Description

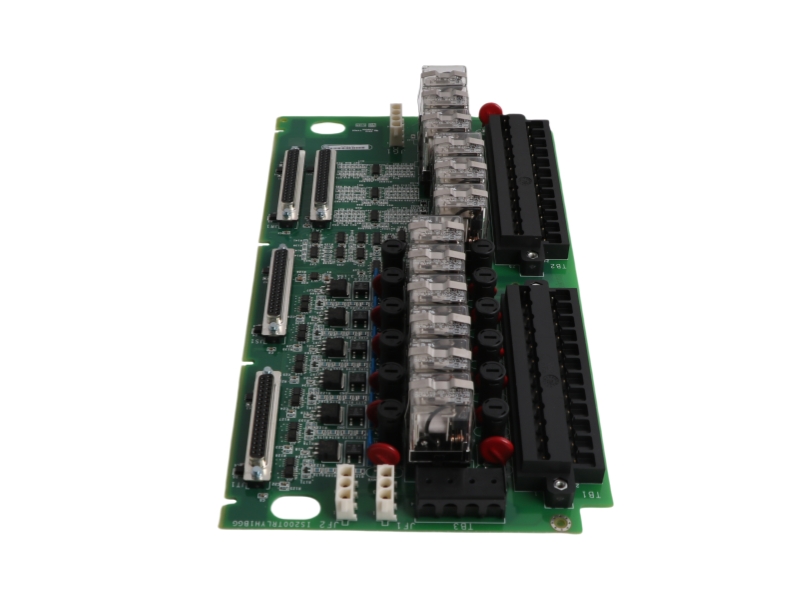

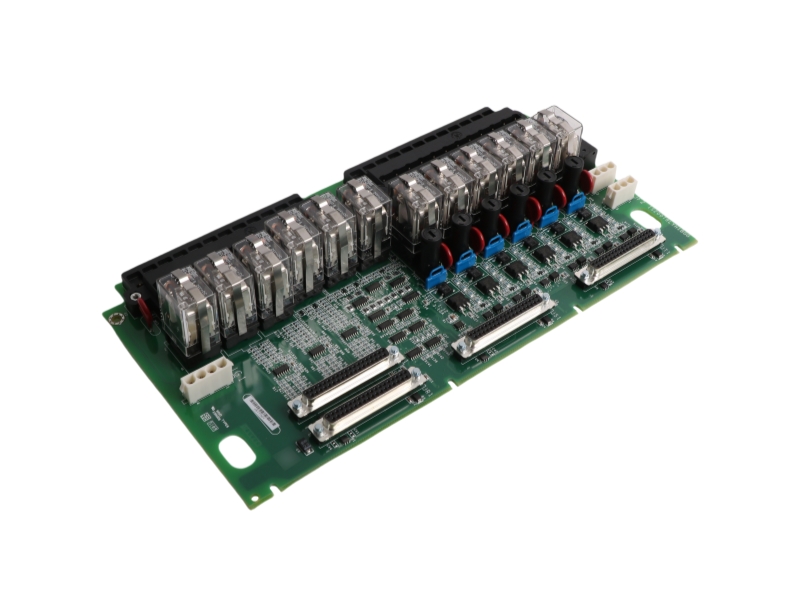

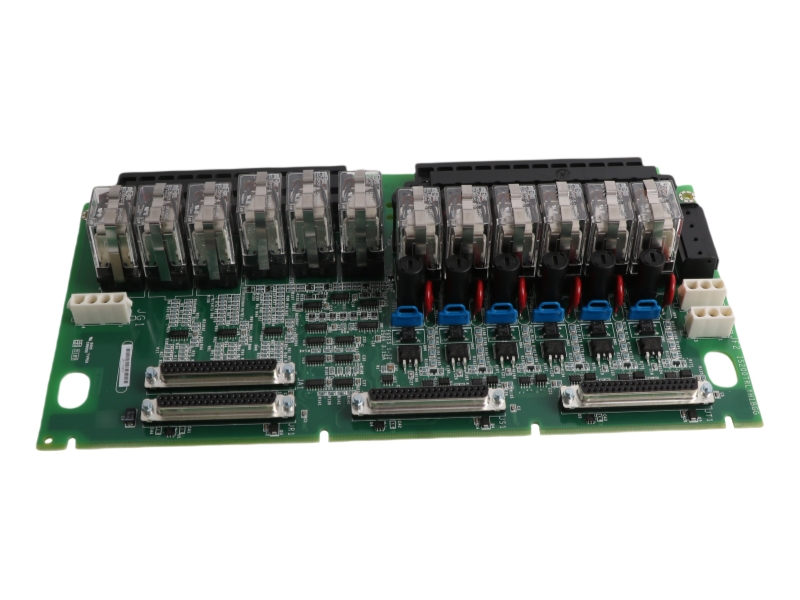

The IS200TRLYH1BGG is a high-reliability GE Mark VIe relay output terminal board featuring 12 plug-in magnetic relays with integrated coil sensing. Fully compatible with Mark VIe controllers, this board works seamlessly with field solenoids to deliver advanced loop tracking, real-time current disagreement alarms, and flexible jumper-configurable circuitry for safe industrial signaling.

Specific Application

• Driving industrial field solenoids using jumper-selectable 125 V DC, 115/230 V AC, or optional 24 V DC power sources with individual on-board suppression.
• Facilitating unpowered isolated Form-C contact signaling for auxiliary turbine control loops and high-current ignition transformer applications up to 7 A.
• Executing critical safety interlocks where protective automation logic demands real-time monitoring of relay coil current to identify downstream wire breaks.

Ordering Information

System Compatibility

Control System Link: Interfaces natively with the General Electric Mark VIe platform via specialized multi-drop communication I/O processor boards.

Solenoid Voltage Networks: Integrates safely with external 125 V DC or 115/230 V AC grid setups, as well as 24 V DC auxiliary field circuits.

Safety Isolation: Provides galvanic barrier protections up to Transorb limits when connected to standard grounded-neutral power infrastructures.

Alternative Models & Functional Differences

IS200TRLYH1BGG (This Board): Features a dedicated high-capacity 12-channel architecture containing six configurable solenoid/dry contact loops, five isolated dry-only loops, and one heavy-duty 7 A rated relay channel.

Standard Non-Coil Sensing Boards: Act as simple passive termination strips that only switch the output contact state without active feedback. They lack the diagnostic electronics needed to monitor relay excitation current or trigger frame-rate discrepancies.

DC-Only Solenoid Driver Boards: Tailored strictly for low-voltage DC industrial loops, omitting the specialized layout spacing, heavy AC voltage path traces, and AC Transorb protection networks built into the BGG variant.

Installation & Troubleshooting FAQ

Q1: What unique precaution must be taken when wiring this board for 240 V AC applications?

A: You must avoid any inadvertent cross-connections between the 240 V AC lines and local DC control circuits. Cross-wiring these paths will generate high-voltage surges that exceed the built-in Transorb component thresholds, causing immediate terminal board damage.

Q2: How does the monitoring loop detect a fault or mismatch within a single relay block?

A: The board continuously captures the actual coil current and compares it directly to the active control command at the exact system frame rate. If a disagreement persists for four consecutive frames, the processor automatically triggers a localized system alarm.

Q3: What safety action occurs automatically if an I/O cable becomes unplugged?

A: If the interconnecting cable is unplugged or if communication with the host I/O processor drops, the internal fail-safe logic automatically de-energizes all relays tied to that specific communication path to prevent unintended field equipment operation.

Q4: At what exact voltage threshold will the solenoid excitation monitoring network log a system error?

A: The hardware monitors supply lines downstream of the individual circuit fuses. If the detected excitation potential drops below a minimum threshold of 12 V DC, the controller instantly registers and latches a diagnostic warning code.

Q5: What diagnostic code indicates that a relay channel has become nonoperational?

A: When a channel fails to respond correctly to a logic switch command or drops below feedback limits, the controller generates a dedicated composite diagnostics code designated as L3DIAG_xxxx to indicate an operational anomaly.
