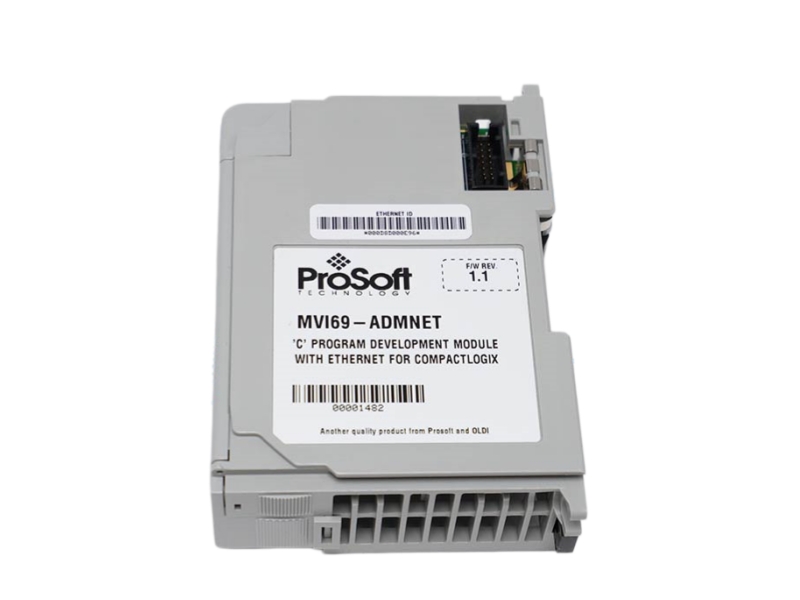

Q1: Which compilers are officially supported for building applications on the MVI69-ADMNET?

A: The module’s API library functions are specified using standard 'C' programming language syntax and are validated for 16-bit DOS targets. Software developers must utilize either Digital Mars C++ V8.49 (which is included in the ProSoft SDK bundle) or Borland C++ V5.02 to ensure proper runtime compatibility and code execution under the DOS 6-XL operating system.

Q2: How is data shared between the CompactLogix processor and the MVI69-ADMNET module?

A: The module is automatically recognized as a standard Input/Output module by the 1769 backplane, giving it direct slot-based access to the processor’s memory spaces. Field technicians and system integrators must implement standard Ladder Logic routines within the Rockwell controller programming software to manage and trigger the periodic data transfers between the processor and the module.

Q3: What are the backplane power limitations and slot placement rules for this module?

A: The MVI69-ADMNET draws a maximum current load of 800 mA at 5 VDC directly from the 1769 backplane bus. Due to this power requirement, it carries a strict power supply distance rating of 2. When installing the module alongside CompactLogix L43 and L45 processors, it must be mounted within the first two physical slots immediately adjacent to the system power supply to prevent bus voltage drops.

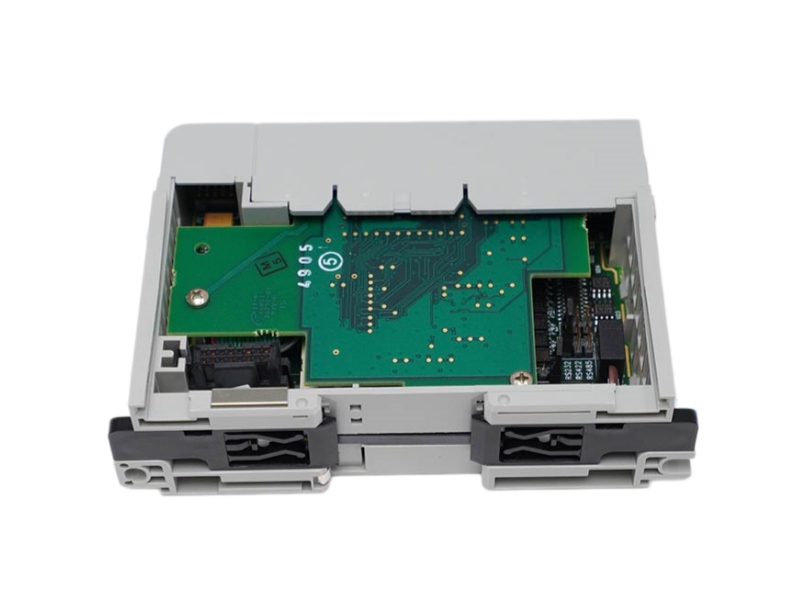

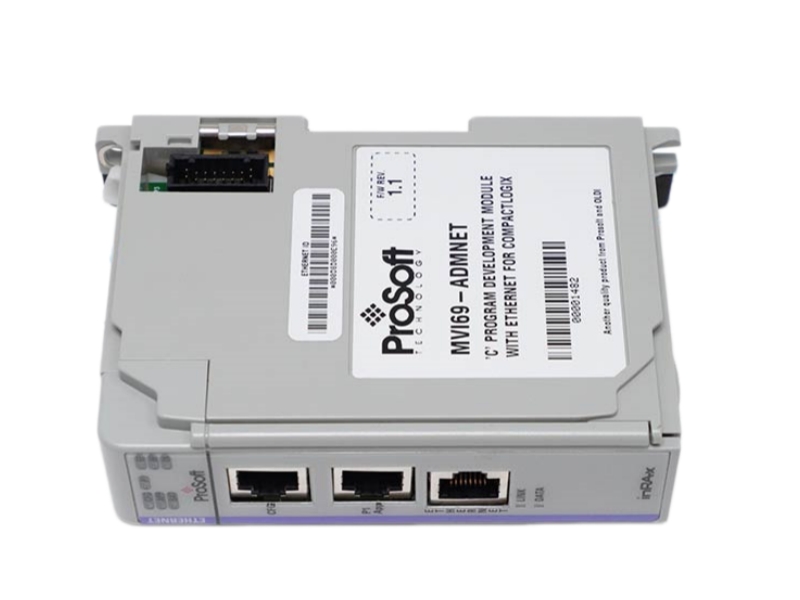

Q4: How should the application port PRT1 be configured for multi-drop field networking?

A: Hardware Port 1 (PRT1) is physically isolated and must be manually jumper-configured on the module's circuit board prior to slot insertion depending on the field electrical standard. It can be set for direct point-to-point RS-232 loops, or multi-drop RS-422 and RS-485 plant networks. Once set, the compiled custom application program can govern the application ports independently for maximum routing layout flexibility.

Q5: What electrical isolation and environment protection levels does the Ethernet port provide

A: The 10/100 Base-T Ethernet interface provides an electrical isolation safety barrier rated for 1500 Vrms at 50 Hz to 60 Hz for a duration of 60 seconds, following IEC 60950 guidelines. Furthermore, the port is built with network resilience, featuring integrated broadcast storm protection capable of dampening extreme traffic spikes up to 5000 Address Resolution Protocol (ARP) frames-per-second lasting up to 5 minutes.
