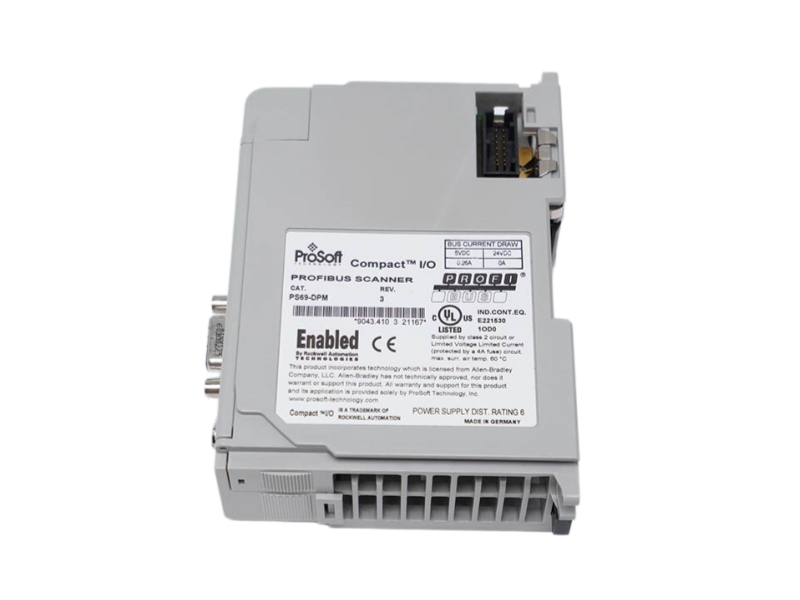

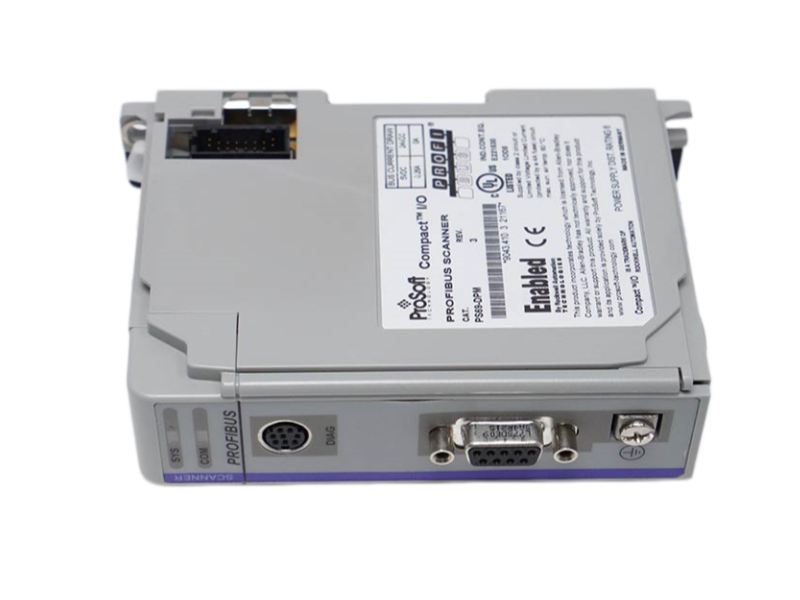

Q1: What are the fundamental steps required to commission a new PROFIBUS network layout using the PS69-DPM?

A: Network setup is managed through three clear developmental phases. First, configure the module properties inside an RSLogix 5000 or RSLogix 500 project. Second, configure the baud rate, station address, and slave parameters within the PROSOFT.fdt (SYCON.net) software tool. Third, map the necessary I/O data arrays and add the standard Add-On Instruction or ladder logic rungs inside your controller program to start cyclic data transfers.

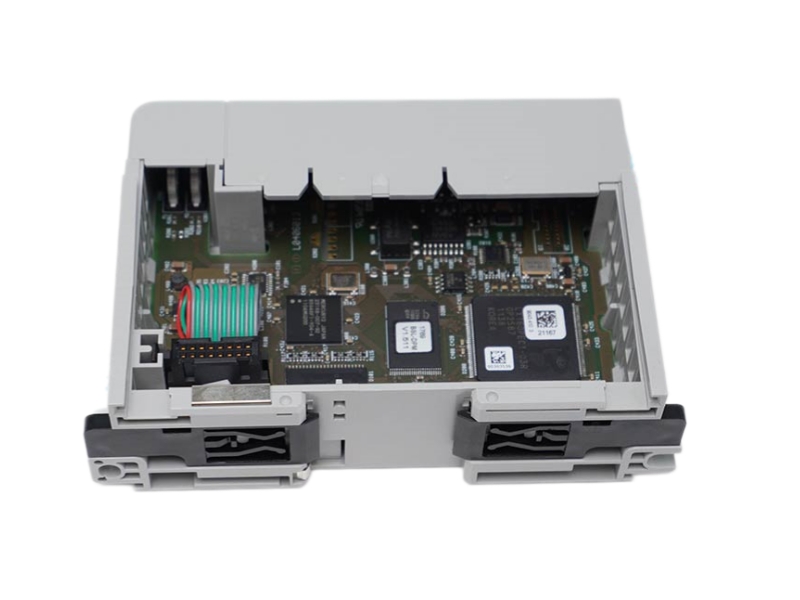

Q2: What is the rule for hot-swapping a module, and how should it be positioned relative to adjacent hardware?

A: The PS69-DPM is strictly not hot-swapped. Always disconnect power from the sub-rack before inserting or removing the card to prevent catastrophic hardware damage to the processor or connected field devices. Before pushing the module forward, ensure the bus lever of the adjacent module is unlocked (fully right), slide the card along the upper and lower tongue-and-groove slots, line up the connectors, and lock the bus lever firmly to the left until it clicks.

Q3: Why is my PLC failing to communicate with the module, and what processor-specific functional limitations exist?

A: First, ensure a right-handed or left-handed termination end cap is properly secured to the 1769 rack assembly. Second, verify your controller model fits your application criteria. While all compatible processors (such as the 1769-L20, L30, L31, L32E, L35E, and 1764-LRP/LSP) fully support core cyclic I/O communication over the backplane, advanced acyclic CIP messaging is strictly restricted to the 1769-L31, 1769-L32E, and 1769-L35E controller models.
