Q1: What are the data exchange limits and backplane interface characteristics of the PS69-DPS module?

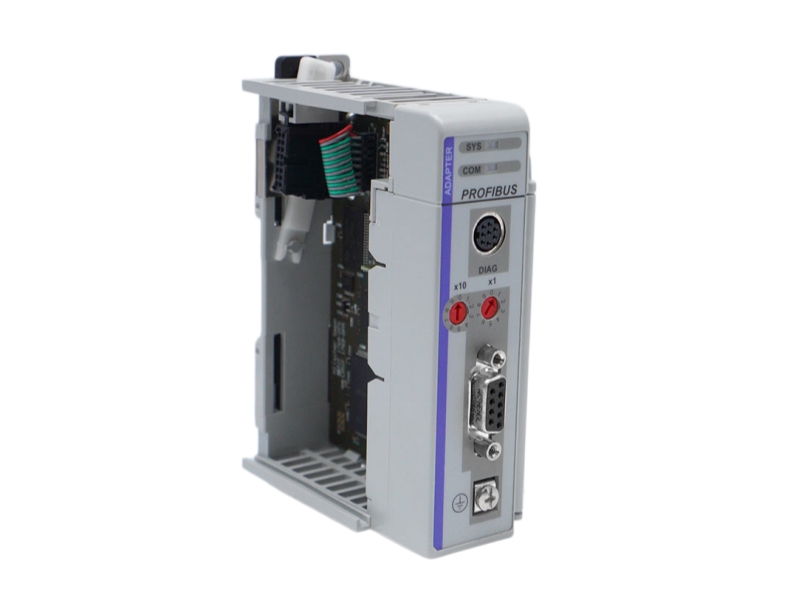

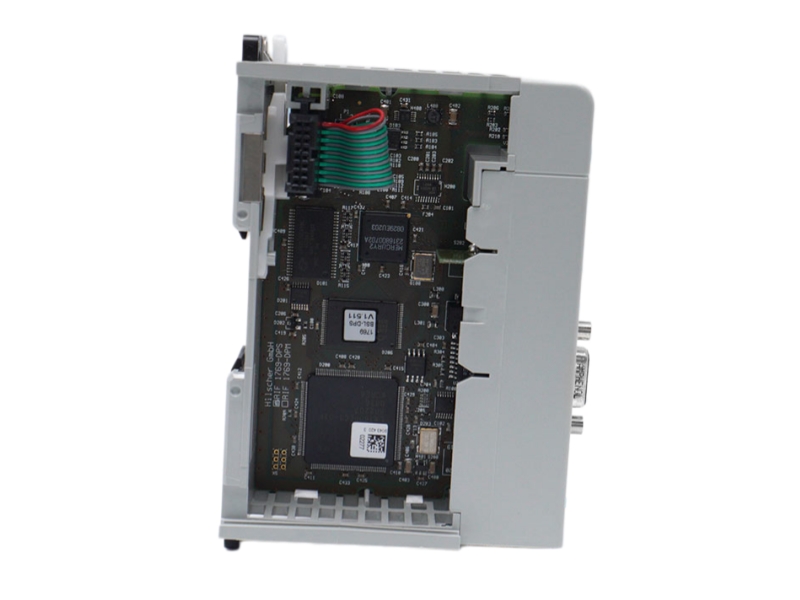

A: The PS69-DPS installs as a standard single-slot module fully compatible with the 1769 backplane. The CompactLogix system automatically recognizes the module as a native Input/Output card, allowing the module to access processor memory directly. For cyclic data exchange, it supports a high capacity of up to 244 Bytes of input data and 244 Bytes of output data simultaneously.

Q2: Which Rockwell Automation controllers are supported, and are there any module installation layout limits?

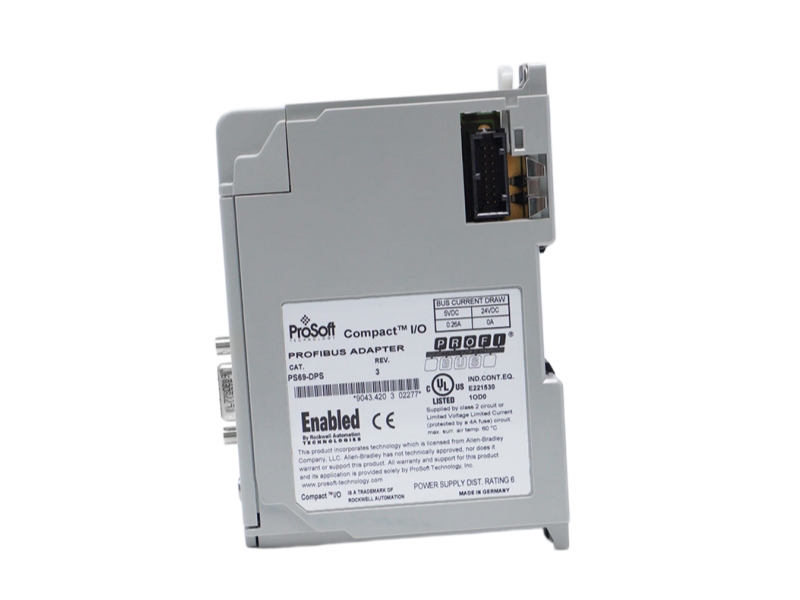

A: The module fully supports Rockwell CompactLogix and MicroLogix 1500 LRP controllers. However, it strictly does not support the 1769-QBFC1B, 1769-L16x, and 1769-L18x series. When engineering the physical rack power layout, the card must be placed within a maximum distance rating of 6 modules from the system power supply module.

Q3: How do I run initial commissioning and gather operational slave node diagnostic data in the field?

A: For a quick start-up, complete program examples and sample ladder files are available to handle the data transfer between the module and processor via ladder logic. Once running, explicit ladder logic CIP message blocks provide real-time slave status diagnostic logs and manage acyclic messaging. Additionally, the module faceplate is equipped with dedicated diagnostic LEDs to display active communication and device status.
