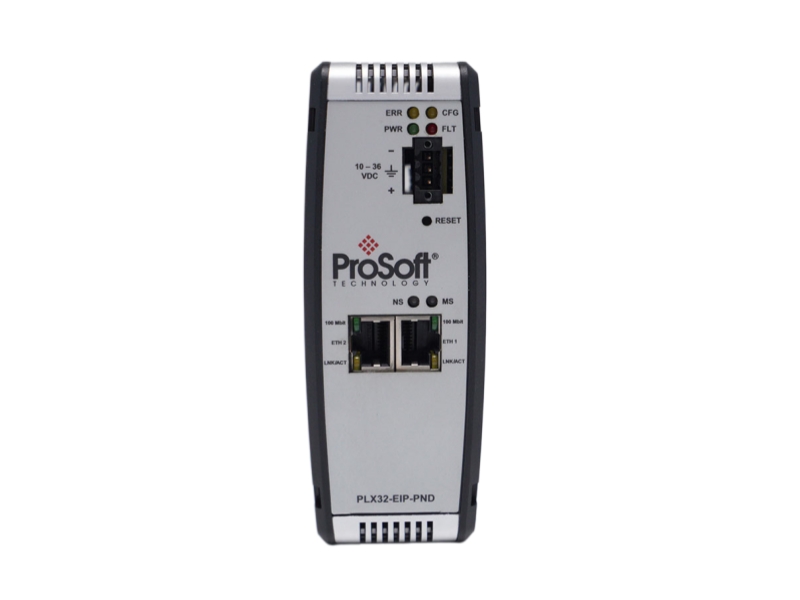

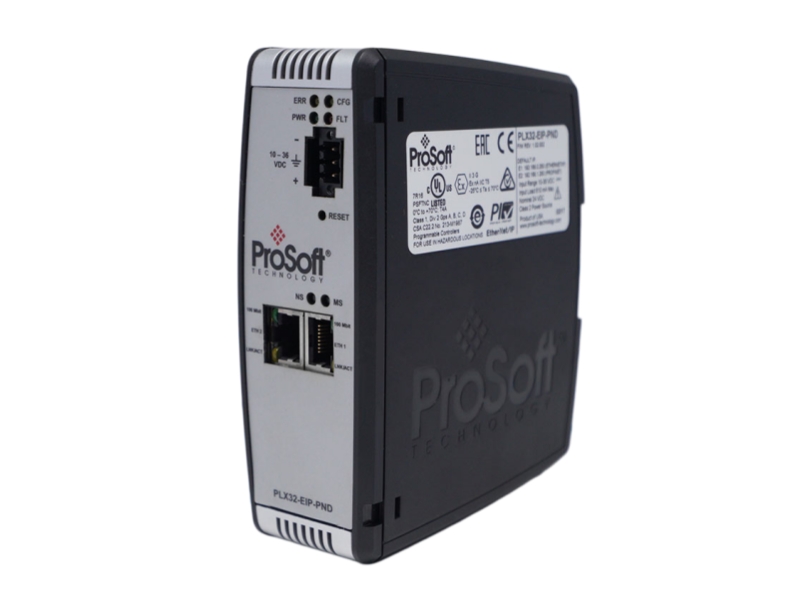

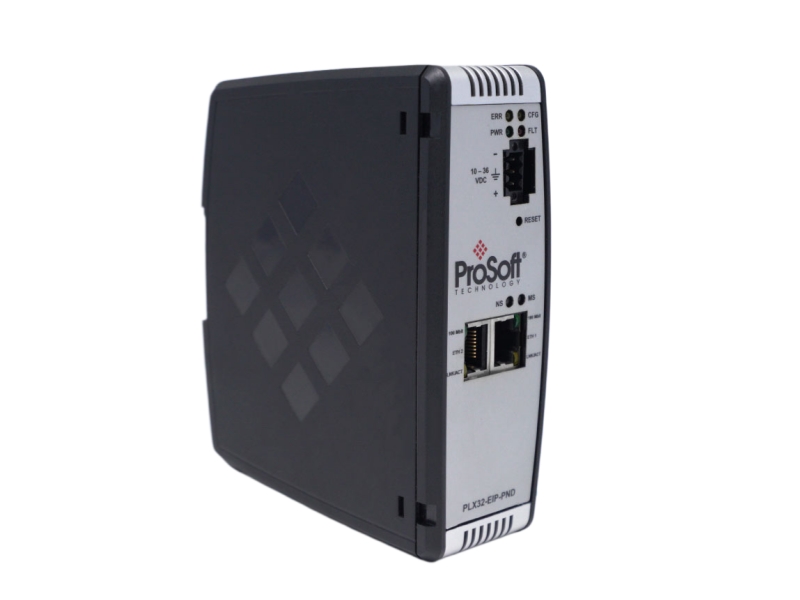

PLX32-EIP-PND ProSoft Technology EtherNet/IP to PROFINET Device Gateway

PLX32-EIP-PND EtherNet/IP to PROFINET Gateway for dual subnets

Inquiry now

General Information

Model number	PLX32-EIP-PND
Manufacturer	Prosoft
Country of origin	USA
Condition	Brand New
Dimension	13.6x5.0x11.1cm
Weight	0.34kg
Lead time Warranty	in stock
MOQ	1 pcs

Core Description

The PLX32-EIP-PND is a ProSoft Technology industrial device gateway featuring bi-directional data transfers between EtherNet/IP and PROFINET networks. Fully compatible with dual subnets, this stand-alone unit works seamlessly with various PAC and PLC controllers to deliver flexible I/O connections and stable industrial network communication.

Configuration

Embedded EDS AOP Software: Utilizes an embedded Electronic Data Sheet (EDS) Add-On Profile (AOP) to allow for seamless drag-and-drop hardware integration within Rockwell Automation Studio 5000 or RSLogix 5000 environments.
Onboard SD Storage Card Slot: Features a dedicated hardware slot for an optional SD card to store system configuration files, enabling rapid disaster recovery, instant hardware cloning, or routine backup retention.
Dual Isolated Subnet Mapping: Connects two physical networks via independent Ethernet ports running on completely unique subnets, completely isolating PROFINET traffic fields from the EtherNet/IP highway.
Secure Local Module Switch: Incorporates a built-in module protection switch (on firmware versions v1.04 and greater) to physically lock out unauthorized or accidental network configuration rewrites.

Ordering Information

Part Number	Item Description	Network Subnet Profile	Shipped Accessories / Contents
PLX32-EIP-PND	EtherNet/IP to PROFINET Device Gateway	Dual Subnets (2 Isolated Ports)	Contains 1 Stand-alone Gateway, 1 J180 Power Plug, and 1 2.5 mm Terminal Screwdriver.

Features and Benefits

Certified Multi-Protocol Compliance: Holds official ODVA approval alongside a PROFINET v2 certification conforming directly to strict PROFINET Class A device driver requirements.
Multi-Vendor Interoperability: Thoroughly field-tested with multiple PROFINET controllers across diverse automation platforms to guarantee robust plant-floor link stability.
Zero Ladder Logic Programming: Eliminates the need for tedious controller ladder coding or messaging routines by utilizing native EtherNet/IP Class 1 I/O connections.
High-Density Data Bandwidth: Supports a grand scale of up to 10,000 internal 16-bit registers, unlocking rapid data exchanges for huge multi-channel industrial processing layouts.
Optimized Network Throughput: Manages up to 8 concurrent Class 1 I/O connections (sized up to 496 bytes in/out each) alongside 5 concurrent Class 3 server connections for unmatched response rates.

Installation & Troubleshooting FAQ

Q1: What are the strict physical environment and mounting parameters for installing this gateway?

A: The PLX32-EIP-PND is built as a standalone unit designed exclusively for secure 35mm DIN-rail mounting inside an industrial enclosure. Its internal circuitry handles wide operating temperatures ranging from -25°C to 70°C and a non-condensing relative humidity envelope of 5% to 95%. It has been ruggedized to withstand mechanical operational shocks up to 15G (11ms) and 5G of continuous vibration across a 10Hz to 150Hz frequency sweep.

Q2: What are the exact input voltage requirements and maximum electrical power loads for this module?

A: The gateway utilizes a removable J180 terminal block supporting Positive, Negative, and Ground terminals. It accepts a wide input voltage range from 10 to 36 VDC, with a nominal operating reference point of 24 VDC. Under a standard 24 VDC load, the card draws a nominal current of 300 mA. However, if your supply line swings down to 10 VDC, you must size your source power loop to manage a maximum current draw of 610 mA.

Q3: How do I trace data bottlenecks or map non-cyclic diagnostic strings across the two field interfaces?

A: The gateway provides multi-layered analysis paths. For real-time scheduling, the EtherNet/IP driver can process Class 1 cyclic connections at a lightning-fast maximum Requested Packet Interval (RPI) of 5 ms per link, while the PROFINET side streams up to 1440 bytes of cyclic data. For explicit or troubleshooting purposes, the system handles acyclic RT data packages on PROFINET alongside Class 3 CIP Data Table Read/Write services (0x4C / 0x4D) on EtherNet/IP, allowing maintenance teams to remotely view and diagnose both subnets.
