General Information

Core Description

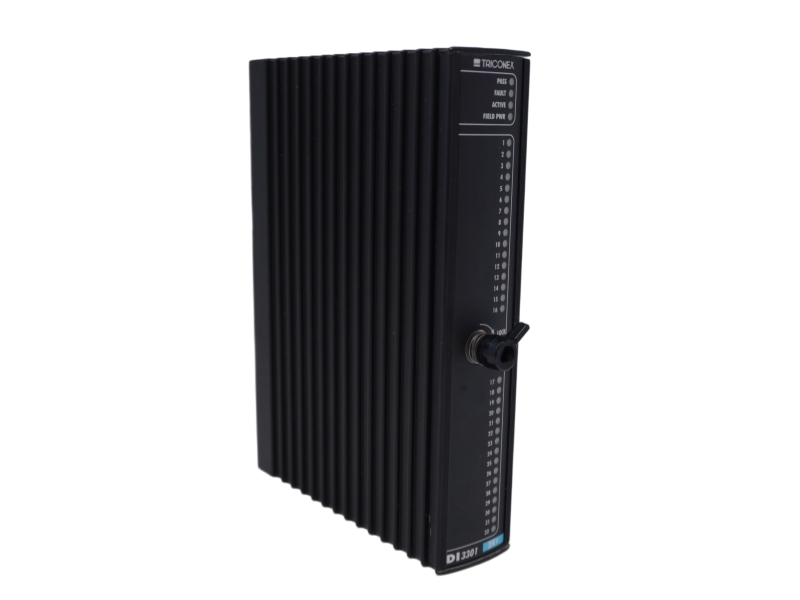

The 3301 is a high-availability discrete input module featuring 32 commoned channels and triplicated hardware processing, working seamlessly with Trident systems and Main Processors to deliver real-time Force-to-Value Diagnostics and fault-tolerant signal integrity for critical industrial interlocking.

Specific Application

• Safety-Critical Process Interlocking: Monitoring field contact inputs, limit switches, and safety pushbuttons across petrochemical, oil and gas, and refining safety loops.
• High-Integrity Machinery Protection: Integrating discrete control sequences and trip sensors where uncompromised signal availability is mandatory.
• Substation Fault-Tolerant Automation: Processing 24 VDC digital statuses within dual-redundant or hot-spared configuration frameworks to prevent nuisance plant trips.

Ordering Information

System Compatibility

The 3301 digital input module installs directly into dedicated logical slot positions on compatible Trident baseplates. It communicates natively over the triplicated backplane I/O bus with Trident Main Processors. The card interfaces with field wiring via the 2301 Direct Termination Digital Input Baseplate.

Alternative Model: 3503E / Next-Generation Trident DI

Within the broader Triconex safety control environment, modules like the 3503E or specialized high-density variants provide functional alternatives depending on the specific chassis family used.

Key Technical Differences

Chassis Form Factor and System Architecture
The 3301 is optimized for the compact, modular Trident baseplate footprint, whereas the 3503E is built for larger, rack-mounted 19-inch Tricon main and expansion chassis layouts.

Diagnostic Test Implementation
The 3301 utilizes an automated Force-to-Value Diagnostic routine running in less than 2 ms per test with a brief Off-state glitch profile, while the 3503E incorporates optical-isolation switch circuits to run a dedicated stuck-ON hardware self-test routine.

Input Impedance Parameters
The 3301 exhibits a nominal input impedance of approximately 30 k bare and drops to 3 k when seated onto its matching baseplate, whereas the larger 3503E maintains a constant nominal input impedance of 1.25 k

Isolation Boundary Metrics
The 3301 provides a minimum functional-to-protective-earth isolation barrier of 500 VDC and a functional-to-functional-earth logic isolation of 800 VDC, while the larger 3503E is rated for a uniform 1,500 VDC point isolation across channels.

Installation & Troubleshooting FAQ

Q1: How does the 3604E resolve and vote on commanded output states?

A: The module receives three parallel instruction paths from the main processors. It passes these commands through an onboard parallel-series path switch configuration that votes on individual output signals. Power will pass to the field load only when at least two out of the three leg drivers command a closed state.

Q2: What is the purpose of the ongoing Output Voter Diagnostic routine?

A: The module executes automatic, transparent Output Voter Diagnostic (OVD) loops on every active switch element. By reading internal circuit voltage states through a dedicated loopback layout, it identifies latent component glitches inside the switch logic before an active process demand occurs, without disturbing the live state of the field load.

Q3: What does the illumination of the front panel LOAD/FUSE indicator signify?

A: This alarm indicates a mismatch condition where the measured field-side terminal voltage fails to align with the commanded logic state issued by the processor core. This symptom usually points to a blown circuit protection fuse on the accompanying external termination panel or a total loss of external field loop power supply lines.

Q4: Can a field technician hot-swap a faulty 3604E module while the system is online?

A: Yes. The system logical slot structure accommodates hot-swapping through a vacant twin physical space. The technician can insert a healthy spare card into the adjacent slot profile. Once the module passes its automated power-on diagnostics, control swings seamlessly to the new hardware, allowing the operator to pull out the failed module.

Q5: Are there any specific environment or safety certification modifications available for the 3604E?

A: Yes. For maritime deployments, the module can be ordered with conformal coating by specifying the 3604EC variant. For high-integrity nuclear facility tasks, the 3625N or similar specialized builds must be investigated, as standard un-coated variants do not meet nuclear 1E regulatory direct line testing scopes.
