General Information

Core Description

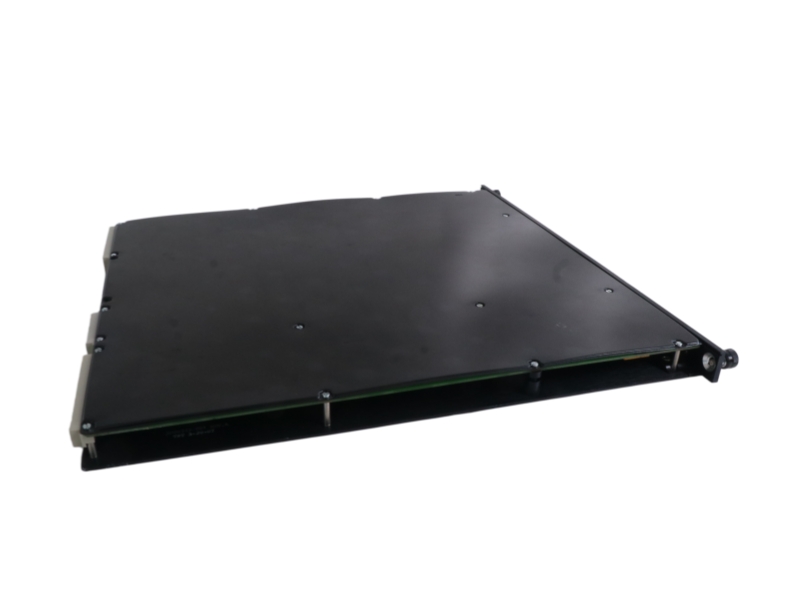

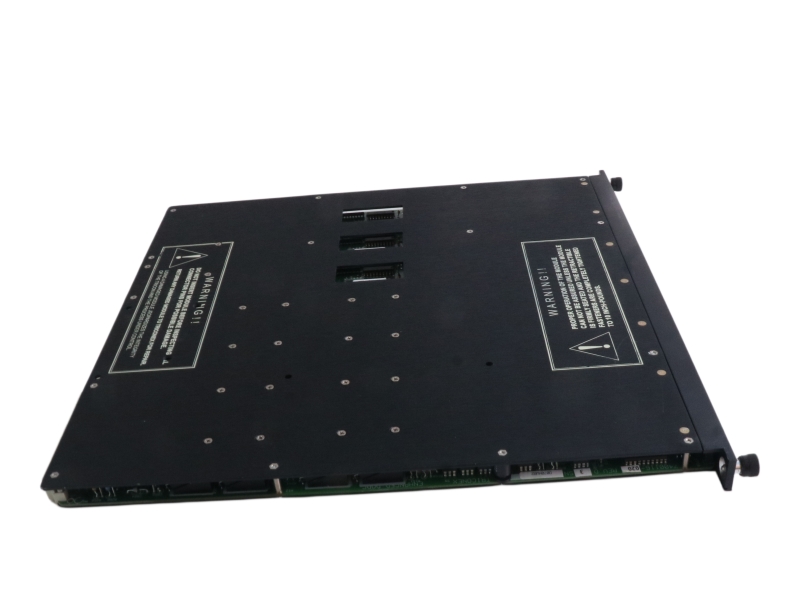

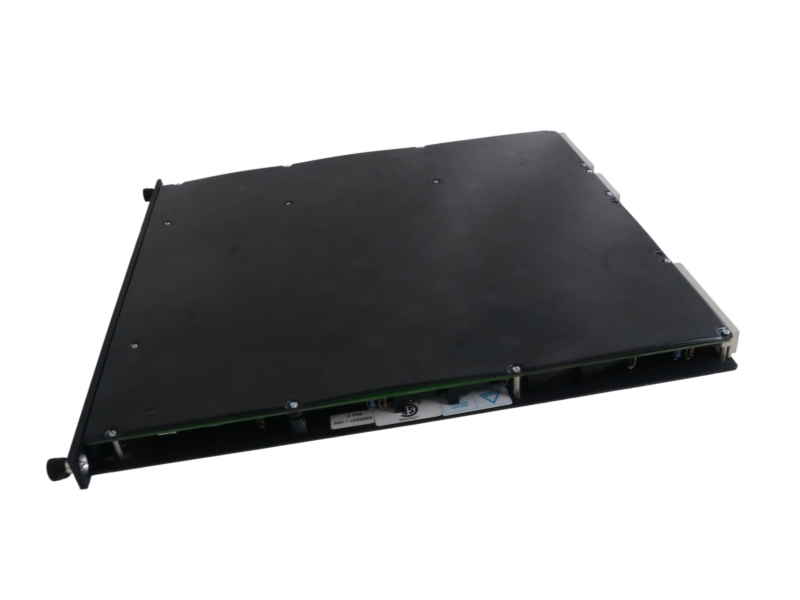

The 3604E is a high-availability digital output module featuring 16 non-commoned channels and a quadruplicated switch matrix, working seamlessly with Tricon v9-v10 systems to deliver native two-out-of-three hardware voting and comprehensive loopback fault diagnostic coverage for safety-critical plant field actuators.

Specific Application

Emergency Safety Shutdown Systems: Driving high-availability discrete interlocks, safety-critical trip solenoids, and emergency ventilation valves in hazardous process units.

Refinery Burner Management Systems: Regulating automated fuel gas isolation valves and safety blocking manifests requiring fail-safe 24 VDC control lines.

Critical Machinery Overpressure Protection: Actuating high-speed deluge equipment, fire suppression triggers, and process venting mechanisms without passing single points of failure.

Ordering Information

System Compatibility

The 3604E digital output module seats into standard logical slots within Tricon Main Chassis, Expansion Chassis, or Remote Expansion Chassis architectures. It communicates natively over the triplicated backplane I/O bus with 3008 Main Processors. The card links to field hardware through external termination panels using standard interface cable sets.

Alternative Model: 3624 / 3664

Within the Triconex 24 VDC discrete output matrix, the 3624 (16-channel Supervised Digital Output) and the 3664 (32-channel Dual Digital Output) serve as functional alternatives.

Key Technical Differences

Output Voting Circuit Architecture
The 3604E incorporates a quadruplicated output switch (Quad Voter configuration) providing multiple redundancy for all channels, whereas the 3664 dual module features a lower redundancy dual-switch profile optimized for lower cost rather than highest availability.

Field Problem Loop Supervision
The 3604E utilizes a standard voltage-loopback circuit to capture output switch logic state errors, while the 3624 supervised alternative adds secondary active current sensing to diagnose external line faults such as open loads or field shorts.

Point Density and Channel Boundaries
The 3604E offers 16 entirely independent, non-commoned isolated output points, whereas the 3624 supervised module bundles 16 commoned channels, and the 3664 dual module expands packing density to 32 commoned loops per slot grid.

Surge Current Handling Profiles
The 3604E delivers a high peak current profile capable of sinking up to 2 A per point with a maximum 10 A surge threshold for 10 milliseconds, whereas the 3624 supervised variant is limited to 0.7 A per point with a 4.8 A peak surge boundary.

Installation & Troubleshooting FAQ

Q1: How does the 3604E resolve and vote on commanded output states?

A: The module receives three parallel instruction paths from the main processors. It passes these commands through an onboard parallel-series path switch configuration that votes on individual output signals. Power will pass to the field load only when at least two out of the three leg drivers command a closed state.

Q2: What is the purpose of the ongoing Output Voter Diagnostic routine?

A: The module executes automatic, transparent Output Voter Diagnostic (OVD) loops on every active switch element. By reading internal circuit voltage states through a dedicated loopback layout, it identifies latent component glitches inside the switch logic before an active process demand occurs, without disturbing the live state of the field load.

Q3: What does the illumination of the front panel LOAD/FUSE indicator signify?

A: This alarm indicates a mismatch condition where the measured field-side terminal voltage fails to align with the commanded logic state issued by the processor core. This symptom usually points to a blown circuit protection fuse on the accompanying external termination panel or a total loss of external field loop power supply lines.

Q4: Can a field technician hot-swap a faulty 3604E module while the system is online?

A: Yes. The system logical slot structure accommodates hot-swapping through a vacant twin physical space. The technician can insert a healthy spare card into the adjacent slot profile. Once the module passes its automated power-on diagnostics, control swings seamlessly to the new hardware, allowing the operator to pull out the failed module.

Q5: Are there any specific environment or safety certification modifications available for the 3604E?

A: Yes. For maritime deployments, the module can be ordered with conformal coating by specifying the 3604EC variant. For high-integrity nuclear facility tasks, the 3625N or similar specialized builds must be investigated, as standard un-coated variants do not meet nuclear 1E regulatory direct line testing scopes.
