General Information

Core Description

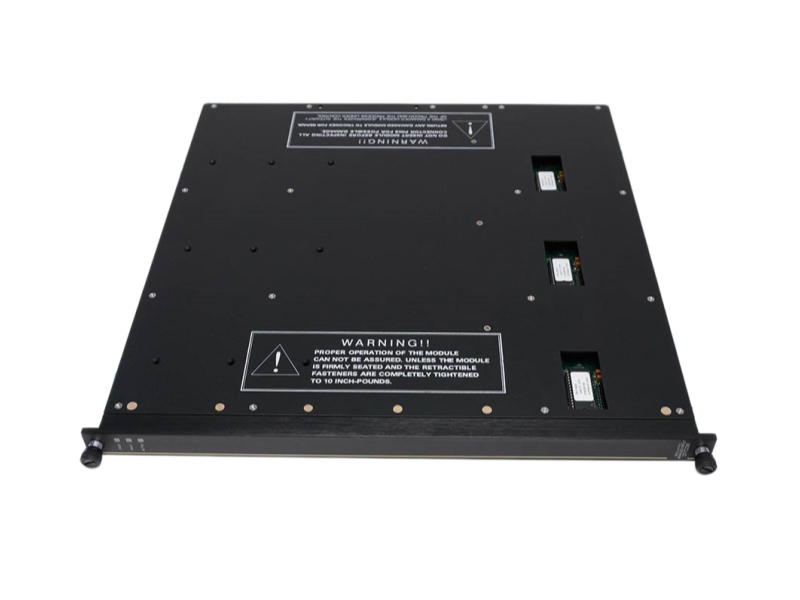

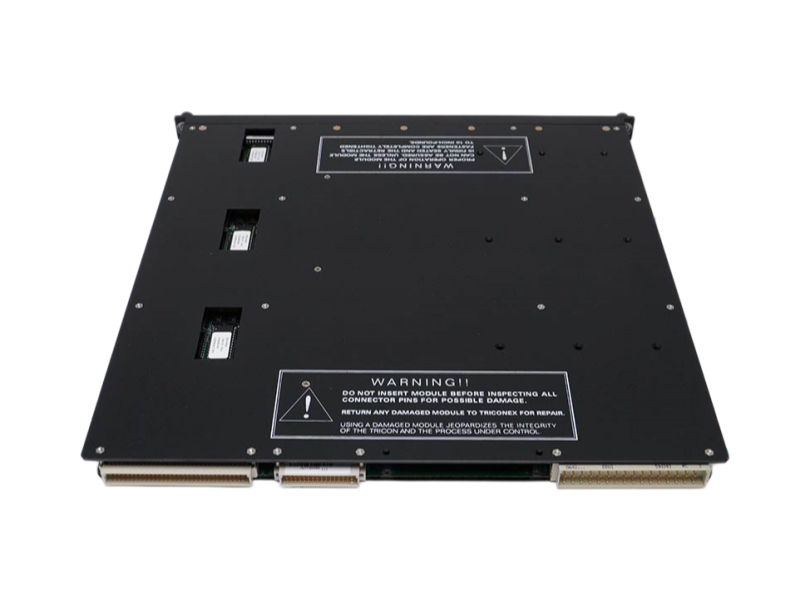

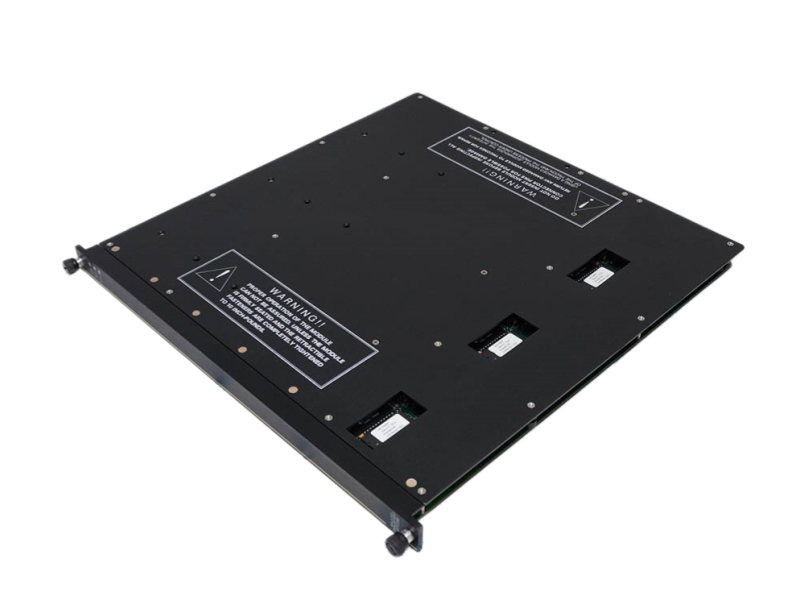

The 3703E is a high-reliability analog input module featuring 16 galvanically isolated differential channels, working seamlessly with Tricon v9-v10 control systems to deliver a fault-tolerant mid-value selection architecture and continuous field-to-logic electrical protection for critical process variables.

Specific Application

• High-Isolation Transmitter Interfacing: Monitoring 0-5 VDC or 0-10 VDC analog loops connected to remote field transmitters subjected to potential ground loop voltage differentials.
• Safety Critical Emergency Shutdown Loops: Processing continuous pressure, product feed rates, or expander temperature data streams inside high-availability refinery or petrochemical units.
• Redundant Distributed Control Networking: Operating as an isolated data acquisition node within triplicated architectures to pass verified analog inputs to supervisory controllers.

Ordering Information

System Compatibility

The 3703E differential analog input module plugs directly into standard logical slots within Tricon Main Chassis, Expansion Chassis, or Remote Extender Module Chassis environments. It communicates via the internal backplane with 3008 Main Processors and interfaces with external wiring networks through designated termination options like the 9771-210F external termination panel.

Alternative Model: 3700A / 3704E

Within the Tricon family, non-isolated options such as the 3700A or high-density models like the 3704E serve as layout alternatives.

Key Technical Differences

Channel Electrical Isolation Protection
The 3703E incorporates complete galvanic channel-to-logic isolation matching up to 200V peak common-mode environments, whereas the 3700A and 3704E are direct DC-coupled modules lacking isolated channel inputs.

Input Density and Allocation Limits
The 3703E provides 16 differential entry points, while the alternative 3700A doubles capacity to 32 differential points and the 3704E provides up to 64 high-density differential loops per card slot.

Update Timing and Resolution Filters
The 3703E processes all channel tables over a 50 ms loop execution cycle, whereas the DC-coupled 3700A and 3701 variants operate on a slightly slower 55 ms sample frequency.

System Component Space and Weight Profiles
While matching identical physical slot sizes across the 19-inch chassis grid, the lower channel density of the 16-point 3703E shifts optimization targets toward application robustness rather than tight loop footprint packing.

Installation & Troubleshooting FAQ

Q1: How do I select between 0-5 VDC and 0-10 VDC voltage spans for the 3703E?

A: The hardware voltage spectrum is configured strictly through software parameters. Field integration engineers must designate the intended channel input range using TriStation software configurations prior to compiling and executing the project logic down to the processors.

Q2: How does the 3703E validate and vote on incoming continuous field readings?

A: The module contains three isolated channels that measure field values asynchronously. These three parallel tables are broadcast to the main processors via the I/O bus, where a specialized mid-value selection routine qualifies the middle value to ensure error-free data logic.

Q3: What diagnostic behavior occurs if an internal converter component drifts or fails?

A: The module runs continuous onboard calibration diagnostics against precision hardware voltage references to adjust gain and bias. If an internal loop fallback or diagnostic check breaks down on any of the leg paths, the front panel FAULT light illuminates. Because of the triplicated layout, the card maintains accurate operation with up to two faulty legs.

Q4: Which interface cable and terminal panel combination handles the 3703E module?

A: The 3703E module requires an external termination panel to route field sensor loops safely. Substation engineers must combine the 3703E with the 9771-210F external termination panel coupled via standard interface cabling models to complete the loop termination grid.

Q5: Can the 3703E handle standard 4-20 mA current loops originating from field devices?

A: Yes. While built natively to process differential voltage limits, the 3703E can accommodate industrial 4-20 mA signals by utilizing external terminal links pre-configured with a 250-ohm precision shunt resistor to convert current into a 1-5 VDC signal profile or a 500-ohm shunt for 10V spans.
