General Information

Core Description

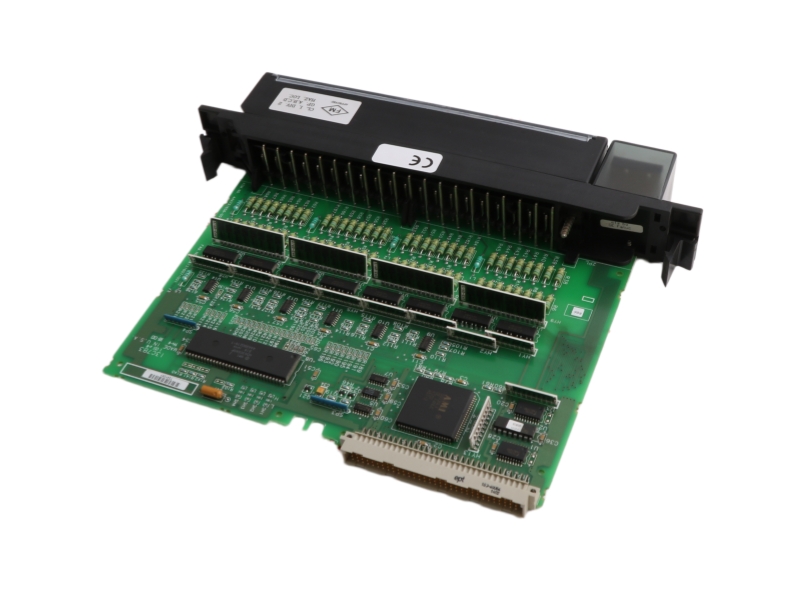

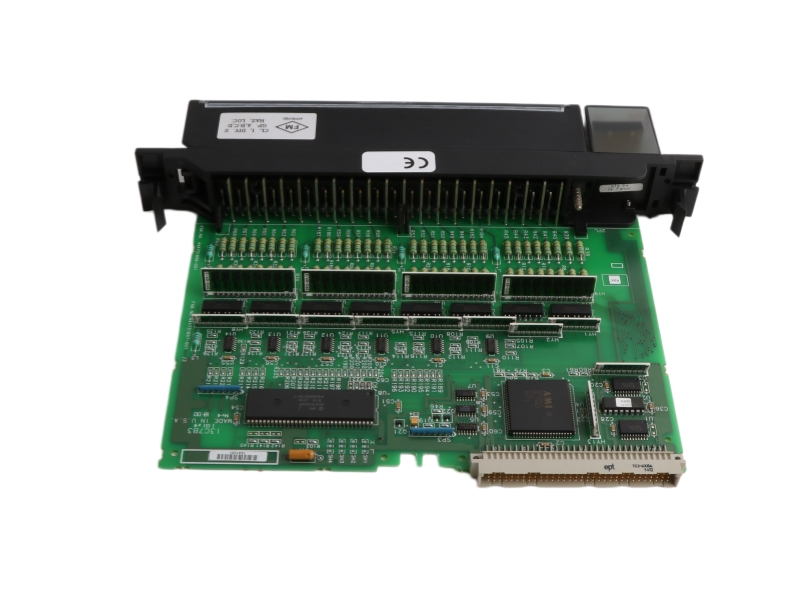

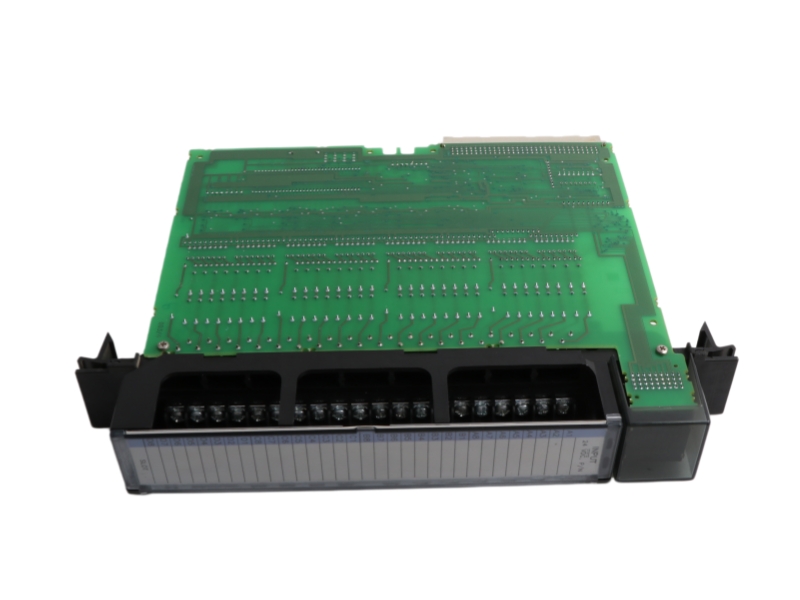

The IC697MDL653 is a high-density GE Fanuc discrete input module featuring 32 points segmented into four isolated groups of eight. Fully compatible with the Series 90-70 backplane, this unit handles either positive or negative logic thresholds and works seamlessly with proximity switches to deliver selectable filtering and an edge-triggered processor interrupt channel.

Specific Application

• Integrating electronic proximity switches and industrial pushbuttons where electrical isolation is mandatory across distinct machine zones.
• Executing high-speed event capture through edge-triggered hardware interrupts that bypass normal input filter delays.
• Consolidating high-density binary signal wiring into a single chassis slot to minimize mechanical enclosure space requirements.

Ordering Information

System Compatibility

Chassis Integration: Mounts into any standard I/O slot of a Series 90-70 PLC baseplate or VME Integrator rack.

Logic-Side Interface: Interfaces natively over the backplane bus, drawing a nominal current of 0.30 amps from the 5 volt power rail.

Software Tools: Fully configured using standard software environments over TCP/IP Ethernet networks or serial port interfaces.

Alternative Models & Functional Differences

IC697MDL653 (This Module): Delivers 32 total channels distributed over four separate electrical isolated common groups to support mix-and-match sinking or sourcing configurations.

Single-Common 32-Point Modules: Require all 32 external field devices to share an identical electrical common potential, sacrificing block-to-block channel group isolation.

Low-Density 16-Point Input Modules: Halve the hardware channel capacity per slot, requiring more baseplate real estate to achieve the same I/O count.

Installation & Troubleshooting FAQ

Q1: What specific wiring configuration allows this module to operate with both positive and negative logic?

A: The module internal design sinks or sources current between the active input pin and the corresponding group common. Wiring positive logic routes external power through the field switch into the module pin, while negative logic links the device from the pin back to the common line.

Q2: What parameter checks ensure a two-wire proximity switch is fully compatible with the channel electronics?

A: The proximity switch must exhibit an on-state voltage drop that plots to the left of the internal input load line curve. Additionally, the off-state leakage current must remain below 2mA at a maximum threshold of 5 volts to avoid false activation.

Q3: How can high-frequency contact bounce or severe field line noise be filtered out?

A: Operating parameters allow users to apply a software-configured input filter time of either 1 millisecond or 10 milliseconds. This selection applies to the module as a single cohesive unit, meaning all 32 channels inherit the identical filter delay.

Q4: Which specific channel can trigger a direct hardware interrupt to the central processor?

A: Input terminal point A1 can be software-configured to execute a direct CPU interrupt. This hardware function can be set to react to either the rising edge or the falling edge of the signal transition, completely independent of the selected filter time.

Q5: How do field technicians ensure a wired terminal board is never paired with an incorrect slot type?

A: Each unit includes a unique mechanical key that locks onto the center rail of the backplane during the initial installation. When the module is extracted, this key stays behind to physically block dissimilar module types from occupying that specific slot.
