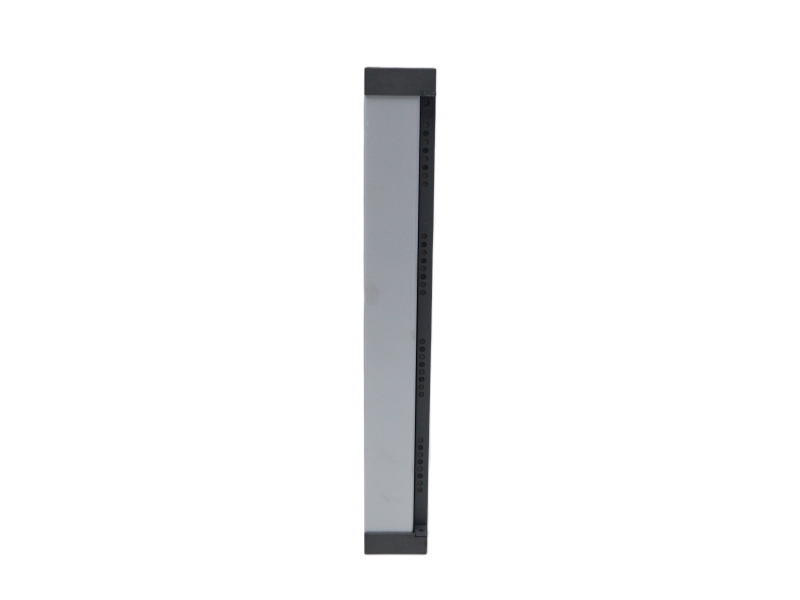

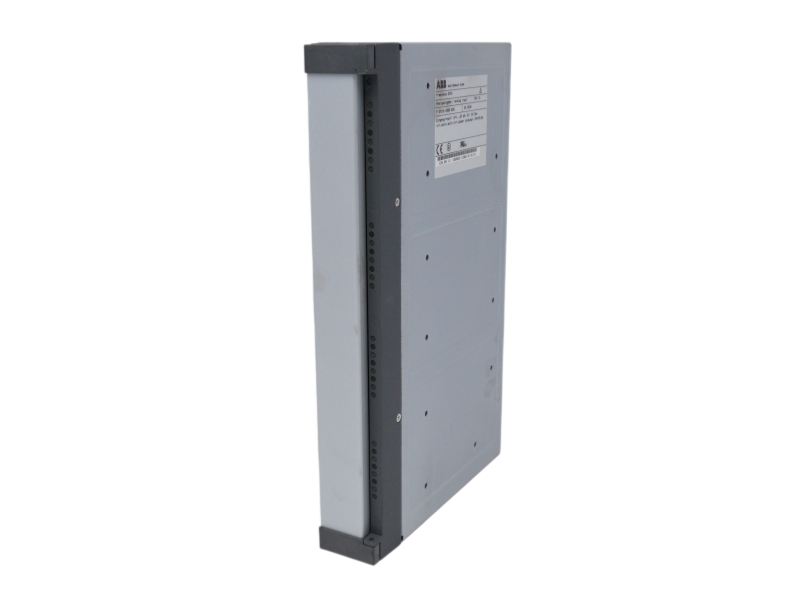

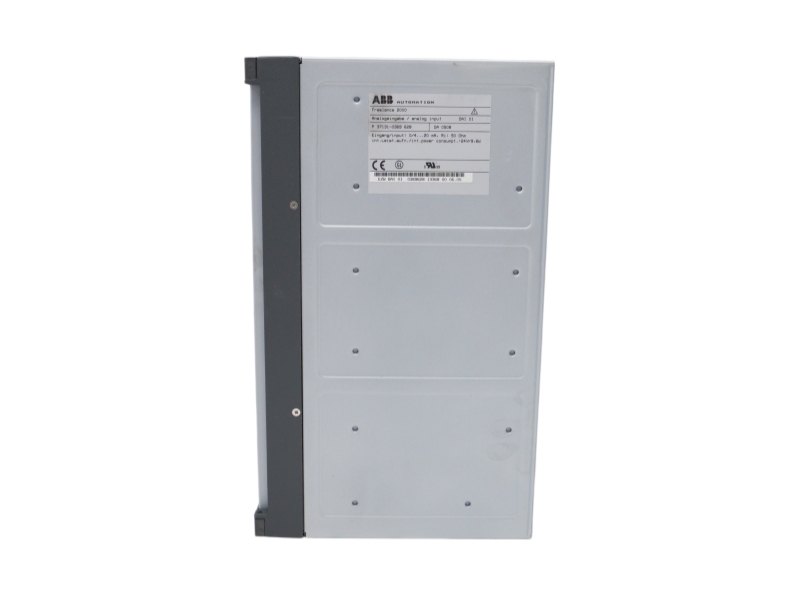

DAI 01 ABB Freelance 2000 16-Channel Analogue Input Board

Inquiry now

General Information

Product ID:	Y0369628M
ABB Type Designation:	DAI 01, ANALOG INPUT V3
Catalog Description:	DAI 01, ANALOG INPUT V3
Long Description:	DAI 01, ANALOG INPUT V3
Dimensions:	4.2x18.5x31cm
Weight:	1.66kg

Specific Application

Process Variable Monitoring: Interfacing with field transmitters to capture continuous analogue inputs such as temperature (RTD/TC) and pressure/flow (4...20 mA) loops in automated industrial plants.
Redundant Sensor Topologies: Deploying in dual-board safety setups where field sensor inputs must be safely distributed to two separate processing paths to prevent loss of critical plant data.
Intrinsically Safe Environments: Working in conjunction with blue Ex-isolated Contrans I backplanes to safely process field data coming from hazardous areas.

Ordering Information

Board Model	Compatible System Cable	Associated Backplane Options	Supported Input Types (Via Modules)
DAI 01	Part No. 0336333 (Analogue Input Cable 1)Part No. 0336334 (Analogue Input Cable 2)	V17111-320 (Spring cage terminal)V17111-321 (Screw terminal, grey)V17111-322 (Pluggable terminal, grey)V17111-351 (Screw terminal, blue Ex)	4...20 mA Current LoopsRTD SensorsThermocouple (TC) Inputs-25...+25mA / -12.5...+12.5V Signals

System Compatibility

DCS Platform: Native hardware component for the ABB Freelance 2000 system architecture.
Interface Hardware: Fully compatible with Contrans I 16-way backplanes (including models V17111-320, V17111-321, V17111-322, and V17111-351).
System Cabling: Interfaces via pre-plugged system cables with part numbers 0336333 and 0336334.
Function Modules: Broadly compatible with active/passive, system-powered, or field-powered Contrans I modules (such as V17151-11, V17151-210, V17152-310, and V17151-820).

Alternative Models

DDI 01: 16/32-Channel Digital Input Board.
DAO 01: 16/32-Channel Analogue Output Board.

Differences with Alternative Models

DAI 01 vs. DDI 01: The DAI 01 is dedicated exclusively to processing continuous variables like 4...20 mA current loops, resistance temperature detectors (RTDs), and thermocouples (TCs). The DDI 01 is designed for discrete binary signals (on/off states, limit switches, and fault signals). They use completely separate, pin-specific system cables (DAI 01 uses cable 0336333/0336334, while DDI 01 uses cable 0336331).
DAI 01 vs. DAO 01: The DAI 01 acts as an input channel that brings continuous analog monitoring data from field instruments back into the Freelance 2000 controller. The DAO 01 performs the opposite function, working as an output channel that pushes control loop signals from the controller out to active field elements like modulating valves and variable frequency drives.

Installation & Troubleshooting FAQ

Q1: How do I choose between System Cable 0336333 and 0336334 when installing a 32-channel analog input setup?

When configuring a 32-channel system across a single Contrans I backplane, two separate DAI 01 boards are utilized to split the load. System Cable 0336333 must be plugged into the first DAI 01 board to route Channel 1 signals from the backplane connectors. System Cable 0336334 must be routed to the second DAI 01 board to manage Channel 2 signals.

Q2: Why are the analog input values flickering or reading absolute zero after connecting a new field loop?

This is typically caused by a mismatch between system-powered and field-powered wiring configurations. If you are using a field-powered module like the V17133-11 or V17151-413, you must ensure that external 24 VDC auxiliary power is explicitly routed to field terminals 11 and 14 to close the circuit loop. Verify your wiring aligns precisely with the active or passive matching specifications of your chosen Contrans I plug-in module.

Q3: Can I replace a faulty Contrans I module connected to the DAI 01 board while the system is live?

Yes, the separate design of the standard connection base and the electronic function module enables a "plug & safe" maintenance model. You can hot-swap the individual plug-in function module without shutting down power or disconnecting any physical field screws. Simply pull the module straight out of its slot and press the replacement module firmly into the pre-wired base, eliminating the risk of human wiring errors during field servicing.
