General Information

Core Description

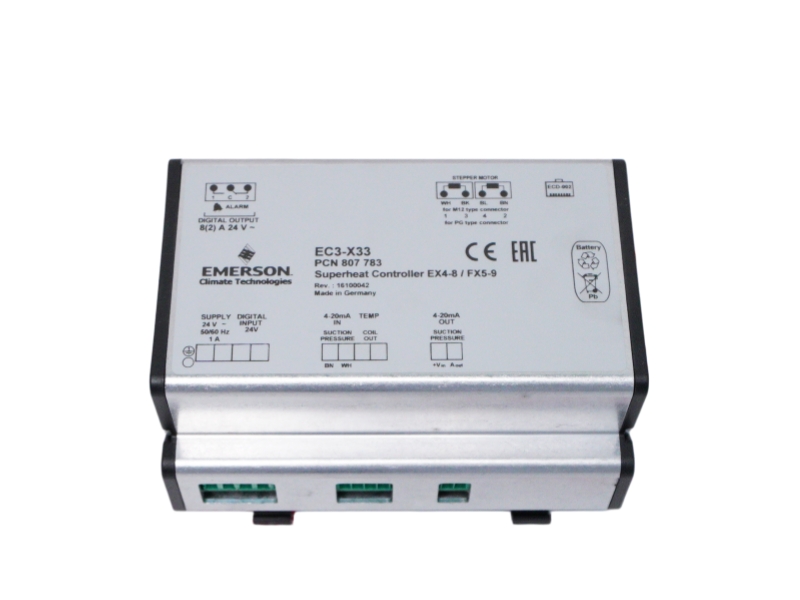

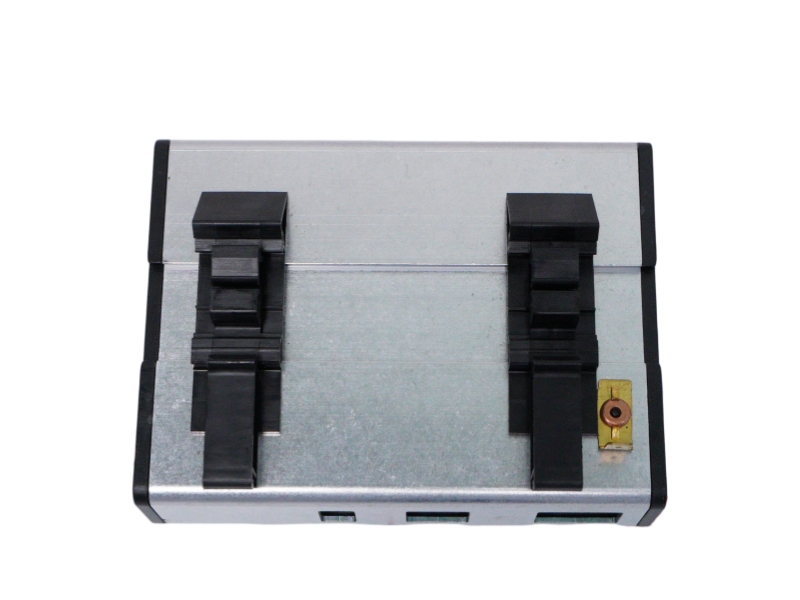

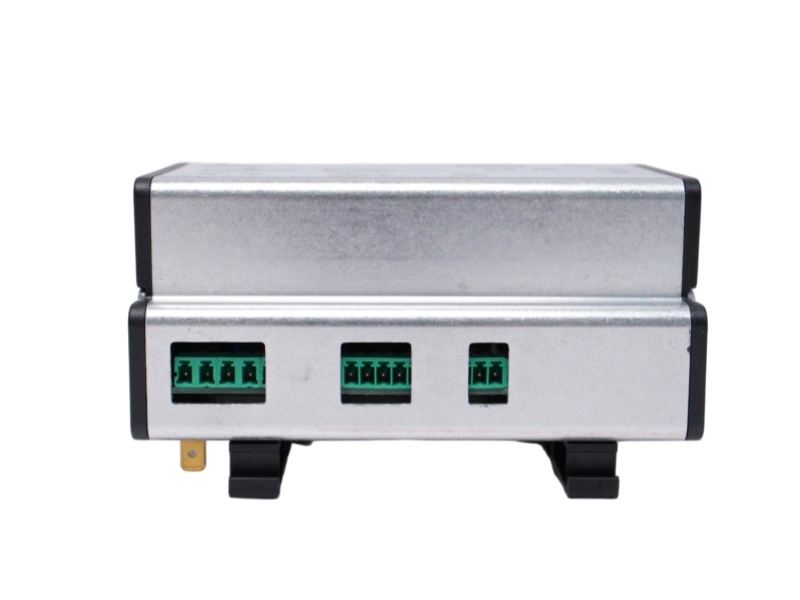

The EC3-X33 is an Alco Controls microprocessor-based universal electronic controller featuring an integrated stepper motor drive and ECD-002 display connectivity. Fully compatible with standard industrial sensors and EX4-EX8 electrical control valves, this unit works seamlessly with refrigeration and HVAC systems to deliver precise superheat control, stable suction pressure regulation, and secure alarm handling via network communications.

Specific Application

• Superheat Control in Commercial Chillers: Regulating electrical expansion valves (EX4/EX5/EX6/EX7/EX8) to manage liquid refrigerant flow into shell-and-tube or plate evaporators.
•  Precision Air Conditioning Units: Maintaining exact cooling parameters in data center precision climate systems and telecommunication equipment shelters.
•  Low-Temperature Industrial Cold Chains: Controlling industrial freezing loops and walk-in cold rooms by adjusting mass flow rate based on real-time pressure and temperature feedback.

Ordering Information

Features

• Advanced Stepper Motor Driving: Delivers high-torque micro-stepping control to operate Alco EX series valves smoothly across all load changes.
• Universal Sensor Interface: Supports simultaneous connection of 4-20mA pressure transmitters and high-accuracy NTC temperature sensors.
• Integrated Communication Connectivity: Features a built-in Modbus RTU interface for remote monitoring, parameter programming, and diagnostic data export.
• Smart Safety Functionality: Built-in Low Pressure (LP) switch tracking, Maximum Operating Pressure (MOP) restriction, and a dedicated battery backup input for safe valve closure during power failures.

Installation & Troubleshooting FAQ

Q1: How do I read, view, or modify the operational control parameters on an EC3-X33 module?
A: Connect an external ECD-002 display unit to the dedicated RJ45 interface on the front panel. This terminal lets you visually navigate the parameter menus, review active sensor data, reset stored alarm logs, and enter new setpoints.

Q2: What is the correct way to protect the system if the main factory AC power line drops out completely?
A: Wire a separate 12V DC rechargeable battery pack or an external uninterruptible power block to the dedicated emergency power pins. This layout ensures the controller retains enough power to drive the attached EX expansion valve completely shut, preventing liquid slugging in the compressor.

Q3: The controller display shows a "Sensor Fault" alarm. What steps should I take to troubleshoot the loop?
A: Use a standard digital multimeter tool to check line continuity and electrical values. For the PT5 pressure transmitter, verify that the 4-20mA loop current scales with the pressure. For the ECN temperature probe, measure the raw resistance value and match it against the factory NTC resistance-temperature chart.

Q4: Can I run multiple EC3-X33 units on a shared network bus to link into a centralized PLC system?
A: Yes. Every individual EC3-X33 controller has built-in RS485 Modbus RTU communication traces. You must assign a distinct network slave address to each module using the configuration menu to prevent signal collisions and data errors on the network line.

Q5: Why is the expansion valve hunting or fluctuating rapidly instead of stabilizing the superheat?
A: Rapid valve hunting points to mismatched proportional-integral (PI) software loops or an oversized valve body size. Access the internal advanced programming configuration menu and modify the proportional gain factor and integration time constant to dampen the mechanical valve action.
