General Information
| Model number | F3330 |
| Country of origin | GERANY |
| Condition | Brand New |
| Dimension | 2.5 × 12.7 × 20.3 cm |
| Weight | 0.1kg |
| Lead time Warranty | in stock |
| MOQ | 1 pcs |
Core Description

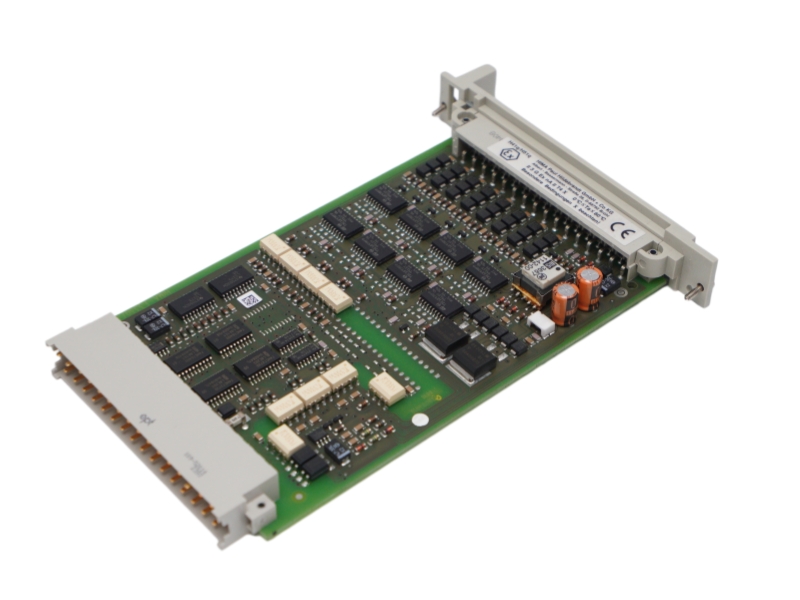

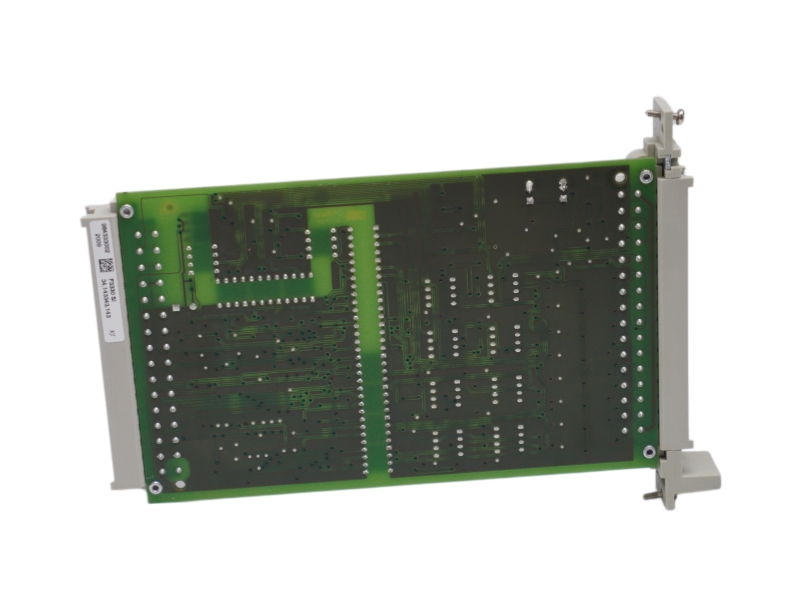

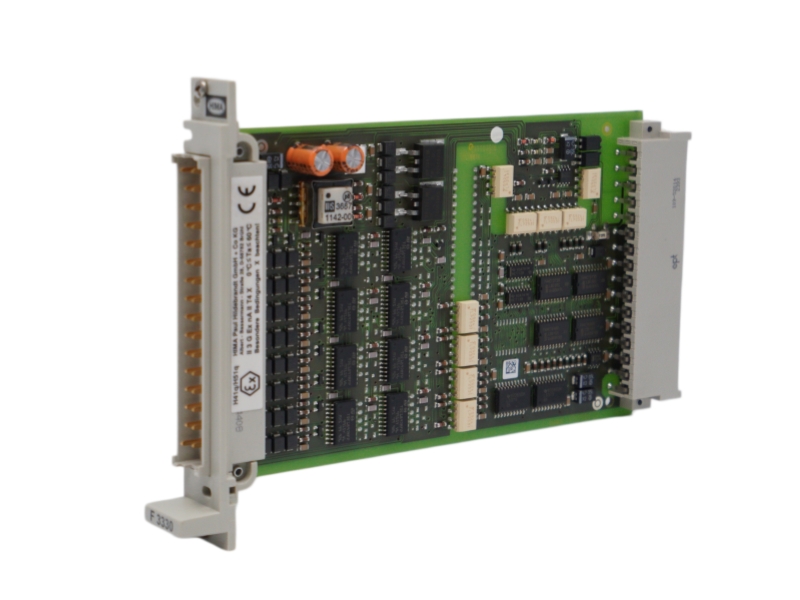

HIMA F 3330 is a safety-related 8-channel digital output module designed for high-integrity industrial automation applications. Supporting AK 1 to AK 6 safety classes, it provides reliable load switching, galvanic isolation, integrated shutdown protection, and automatic self-diagnostics for stable and secure system operation.
Specification
|
Parameter |
Technical Specification |
|
Number of Channels |
8 output channels, safely isolated |
|
Safety Requirement Class |
AK 1 ... 6 |
|
Nominal Output Current |
500 mA (12 W) per channel, short-circuit proof |
|
Lamp Connection Load |
Up to 4 W maximum (extendable to 10 W with external resistor) |
|
Internal Voltage Drop |
Max. 2 V at 500 mA load |
|
Admissible Line Resistance |
Max. 11 Ohm (input + output loop) |
|
Undervoltage Tripping |
Triggers at
16 V |
|
Short-Circuit Operating Point |
0.75 ... 1.5 A current thresholds |
|
Output Leakage Current |
Max. 350
A |
|
Reset Output Voltage |
Max. 1.5 V when channel is turned off |
|
Diagnostic Test Pulse Duration |
Max. 200
s |
|
Onboard Power Consumption |
5 V DC: 110 mA |
|
Module Width / Space |
4 TE (Rack Units) |
Ordering Information
|
Part Number |
Item Model Code |
Description |
|
F 3330 |
F 3330 Module |
8-Fold Safety Output Module (AK 1...6, 500mA, 4 TE) |
|
268104004 |
Diode 1N4007 |
Free-wheeling diode required for inductive load layouts |
|
201104448 |
Diode 1N4448 |
High-speed alternative diode option for inductive loads |
|
171112104 |
Capacitor 0.1
F |
Snubber component (included only up to hardware release AS01) |
|
010685479 |
Resistor 4.7
/ 1W |
Series power resistor for 4W to 10W indicator lamp loads |
|
Z 7138 / 3330 / C.. |
Front Plug Assembly |
Standard pre-wired cable plug with LiYY 8 x 0.5 mm² cable |
|
Z 7138 / 3330 / C.. / P2 |
2-Pole Front Plug |
Specialized 2-pole connection plug with LiYY 16 x 0.5 mm² cable |
System Compatibility
System Compatibility
The F 3330 module is fully compatible with HIMA H41q and H51q safety subrack systems, plugging directly into the dedicated I/O rack backplanes. It interfaces with external field instrumentation via the Z 7138 front cable plug connectors using LiYY 8x0.5 mm² or 16x0.5 mm² pre-wired cable assemblies.
Alternative Model: F 3334
Within the HIMA safety family, the F 3334 acts as a common alternative or upgrade path for driving higher-density or higher-current safety digital output loads.
Key Technical Differences
|
Technical Attribute |
F 3330 (Current Model) |
F 3334 (Alternative Model) |
|
Channel Load Sizing |
Rated for medium-duty field loads up to 500 mA (12 W) maximum. |
Engineered for higher current thresholds or alternate channel distributions. |
|
Diagnostic Readback Threshold |
Signal readback low level operating threshold is bound at
6.5 V. |
Optimized readback voltage windows for modern high-impedance loads. |
|
Inductive Load Suppression |
Mandates external free-wheeling diodes (1N4007/1N4448) on the rack. |
Features integrated electronic clamp structures reducing external wiring. |
|
Rack Packing Density |
Up to 10 modules under nominal load can be packed into a single subrack. |
Modified cooling and load metrics allow different configuration counts. |
Installation & Troubleshooting FAQ
Q1: What are the main self-test diagnostic routines executed by the F 3330 module?
A: The module runs automatic internal diagnostic tests continuously during live operation. The primary test routines consist of a readback loop monitoring output states (where a healthy logic '0' signal readback must stay 6.5 V to ensure component safety) and a "walking-bit" test sequence that pulses individual outputs for less than 200 · s to verify active switching capability and cross-talk isolation.
Q2: How do I connect a high-power indicator lamp exceeding the standard 4 W limit?
A: For driving indicator lamps rated between 4 W and 10 W, you must wire a 4.7 / 1 W power resistor (HIMA Part No. 010685479) in series with the lamp load. This prevents the high initial cold-filament inrush current from false-tripping the module's 0.75 ... 1.5 A short-circuit protection circuits.
Q3: What causes an unexpected output channel trip while driving an inductive solenoid?
A: Inductive loads create high-voltage transient spikes upon de-energization. If an inductive load is connected without an external flywheel diode (such as a 1N4007 or 1N4448 diode connected across terminals L+ and the channel), the reverse EMF voltage will trigger the short-circuit current limiters or undervoltage tripping (16 V), turning off the channel.
Q4: Can F 3330 channels be paralleled to drive a single high-current field device?
A: Yes. F 3330 output channels can be safely wired in parallel to increase current capacity without requiring external isolation or balancing diodes.
Q5: Are there any subrack layout limitations when engineering a new system?
A: Yes. To ensure adequate heat dissipation and power stability across the backplane, a maximum of 10 F 3330 output modules operating under full nominal load may be installed together inside a single HIMA I/O rack.
