Q1: What are the distinct wiring parameters and terminal requirements for connecting a load to the F3422 relay?

A: Land your external field lines onto the designated plug-in terminal block slots. Ensure all connections adhere strictly to the maximum voltage limit of 60V DC/AC and do not exceed the nominal 4A per-channel rating.

Q2: Can I hot-swap a faulty F3422 relay module while the rest of the safety system is active?
A: Yes, the module supports online replacement. You can safely pull the front format card assembly out of its sub-rack frame slot without shutting off the main chassis power or risking data interruptions on adjacent I/O loops.

Q3: The red system fault LED is illuminated on the front of the F3422 card. What step should I execute first?
A: Cross-reference the channel fault flags using your HIMA engineering software tool. A localized diagnostic trip usually points to a physical field loop failure, an overcurrent event, or an open coil path inside one of the safety relays.

Q4: Does the F3422 module support millisecond-level Sequence of Events (SOE) historical logging?
A: Yes, when integrated into a standard H41q/H51q architecture, the system records channel state transitions at a millisecond resolution. This data is pushed directly to the SOE buffer log for fault tracing.

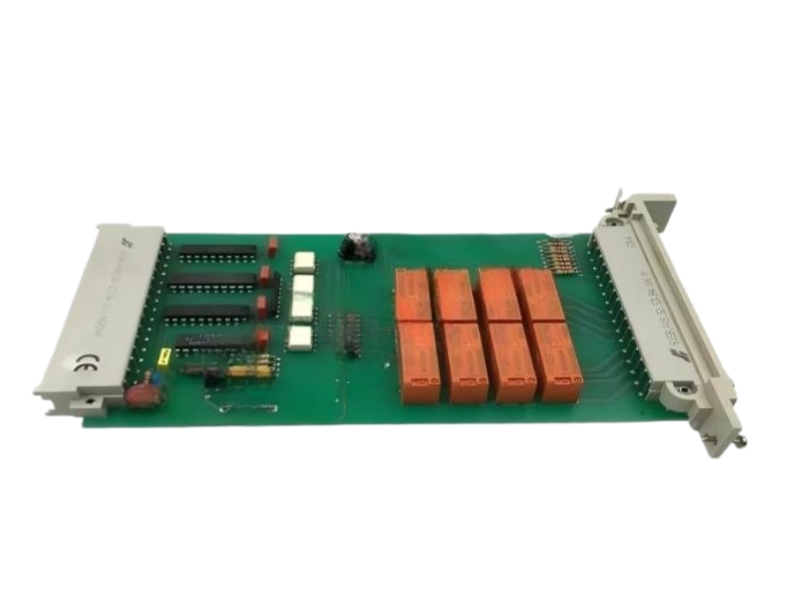

Q5: Why are the mechanical relay contacts on the F3422 card hard gold-plated?
A: The hard gold coating on the AgNi contacts prevents oxidation and layer degradation. This design guarantees reliable electrical contact even when the safety loops are kept de-energized over long periods.
