General Information

Core Description

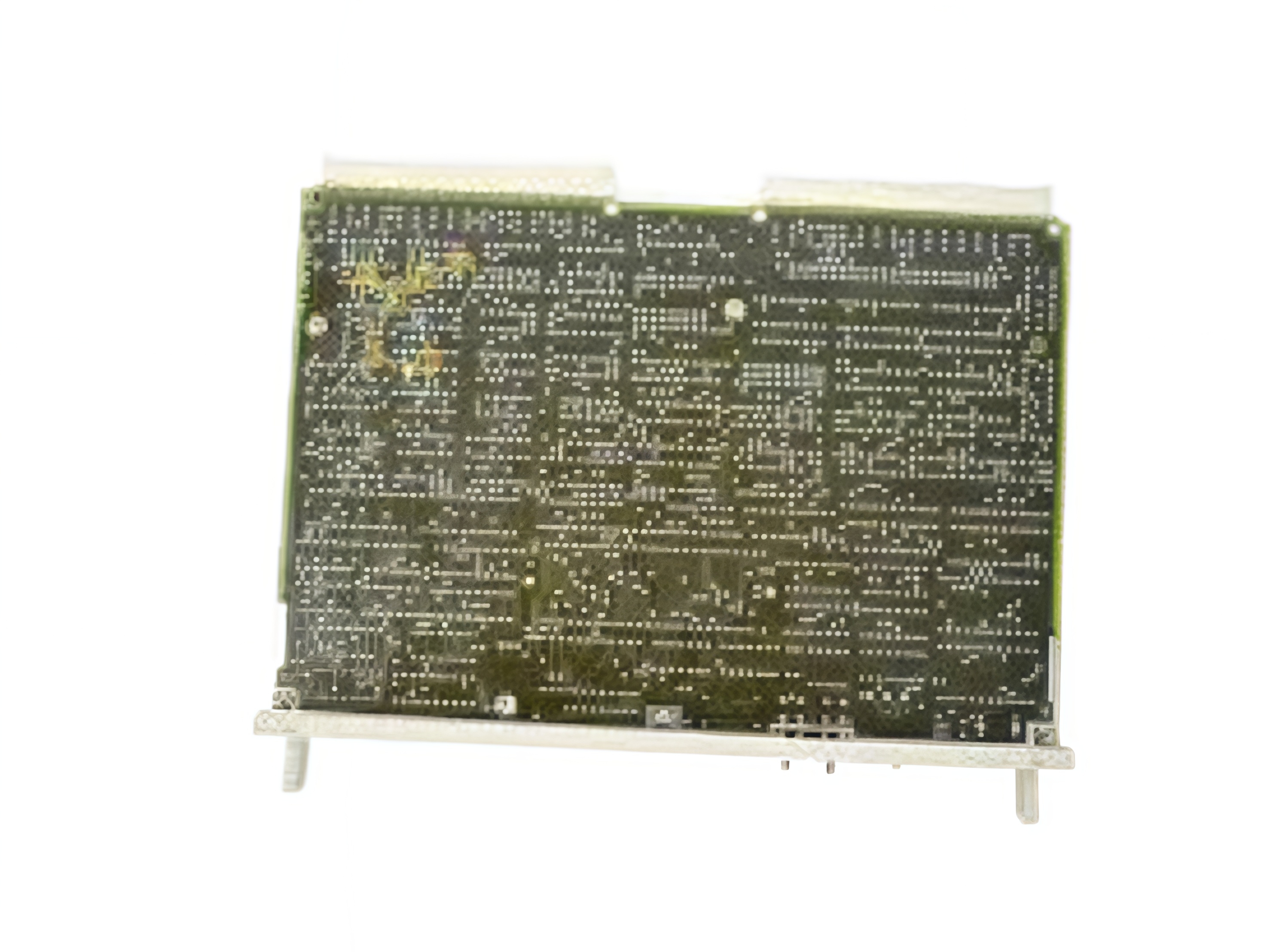

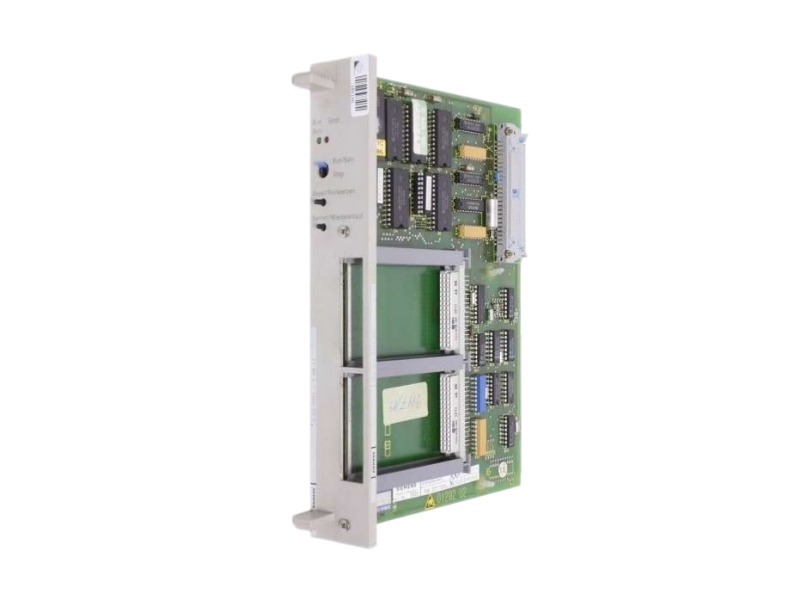

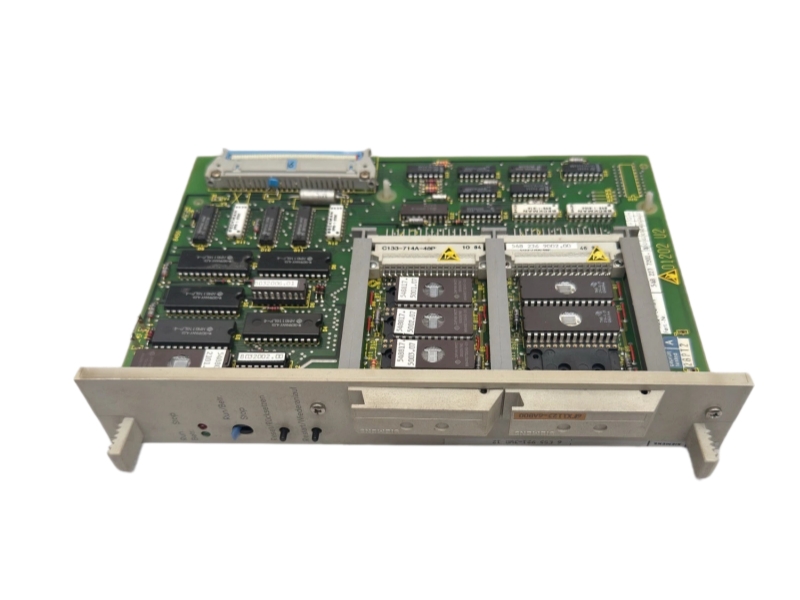

The 6ES5921-3WB12 is a dedicated Siemens SIMATIC S5 central processing unit 921 engineered for legacy industrial automation control. Fully compatible with ZG 130WB subracks, this computing unit integrates seamlessly with internal PLC 130WB processing systems to deliver robust machine coordination and highly dependable logic control across vintage industrial production networks.

Specific Application

• Legacy Subrack Processing: Acts as the primary central processing unit inside the Siemens ZG 130WB expansion housing to handle coordinated machine commands.
• Integrated PLC System Hosting: Executes dedicated control loops and logic algorithms assigned to the onboard PLC 130WB field installation framework.
• Factory Retrofit Management: Serves as a direct-replacement system controller for maintaining continuous operation in legacy plant sub-assemblies.

Ordering Information

System Compatibility

Chassis Platforms: Native interface alignment for direct slotting into Siemens ZG 130WB subracks.

Integrated Controllers: Purpose-built to link directly with built-in PLC 130WB architecture segments.

Peripheral Hardware: Interoperable with classic SIMATIC S5 communication links, dedicated EPROM storage components, and remote subrack configuration expansions.

Alternative Models & Functional Differences

6ES5921-3WB15 (Official Successor Type): This is the recommended drop-in migration replacement module designated by the manufacturer. It provides identical form-factor fitment while integrating modernized electronic components to deliver enhanced system longevity.

SIMATIC F-System Controllers: Contemporary failsafe platforms designed for high-availability safety networks. Unlike the standard logic control processing of the legacy 6ES5921-3WB12, modern F-systems incorporate redundant safety-certified shutdown loops.

Installation & Troubleshooting FAQ

Q1: What critical steps must be taken when upgrading a failed module to its designated successor?

A: Turn off all electrical power routing to the ZG 130WB subrack frame before removal. Carefully unseat the legacy unit and replace it with the updated successor version (model number 6ES5921-3WB15), ensuring the multi-pin backplane interfaces track perfectly into the bus slots to prevent connector damage.

Q2: Why is the controller failing to recognize an older user project during a system swap-out?

A: This behavior typically occurs due to strict formatting constraints or data block differences between varied generations of hardware memory. To correct this, ensure that your existing user code blocks have been adapted properly to standard SIMATIC S5 notation or implement specialized format translation routines to align data blocks with the target CPU configuration.

Q3: What should be verified if communication timing discrepancies arise between the host rack and expansion subracks?

A: Check the physical link distances and the exact interface combinations deployed across your distributed subrack network. Distributed S5 configurations expanding up to 200 meters rely on specific CC-EU interface links that must match configuration rules precisely to eliminate transmission delays.
