General Information

Description

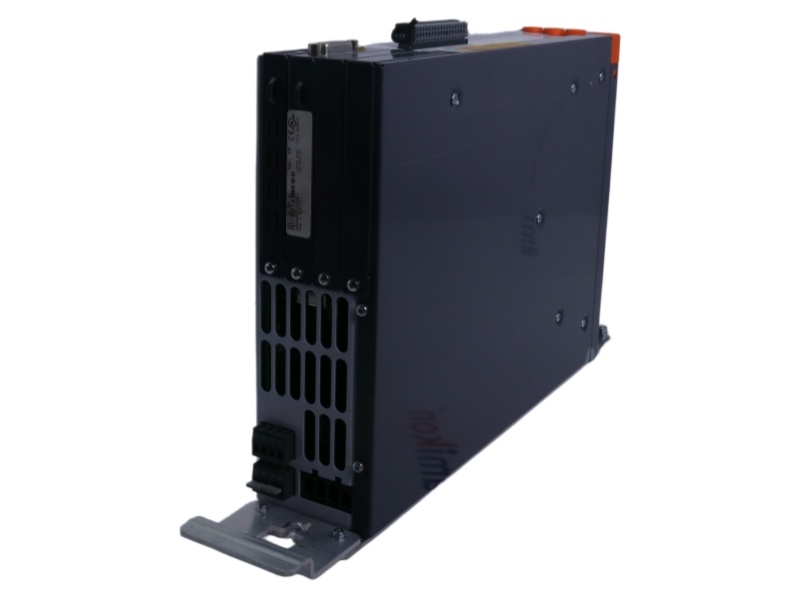

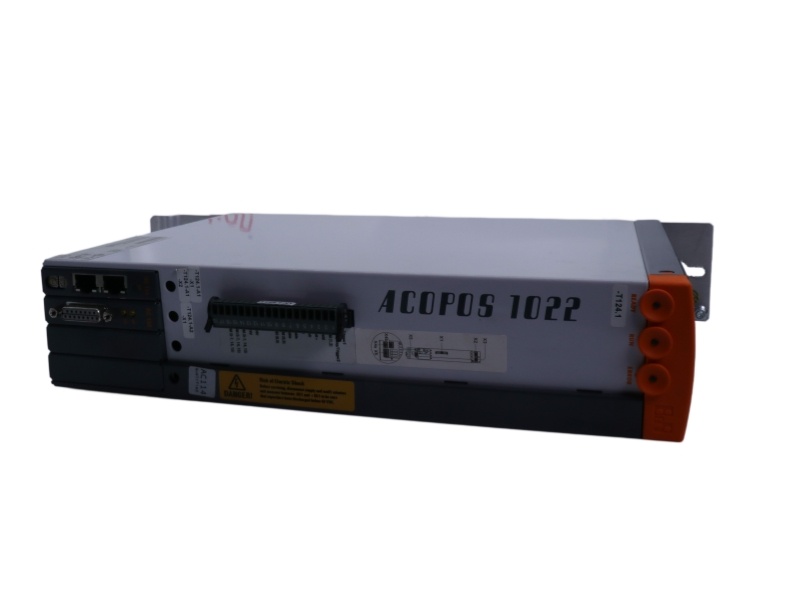

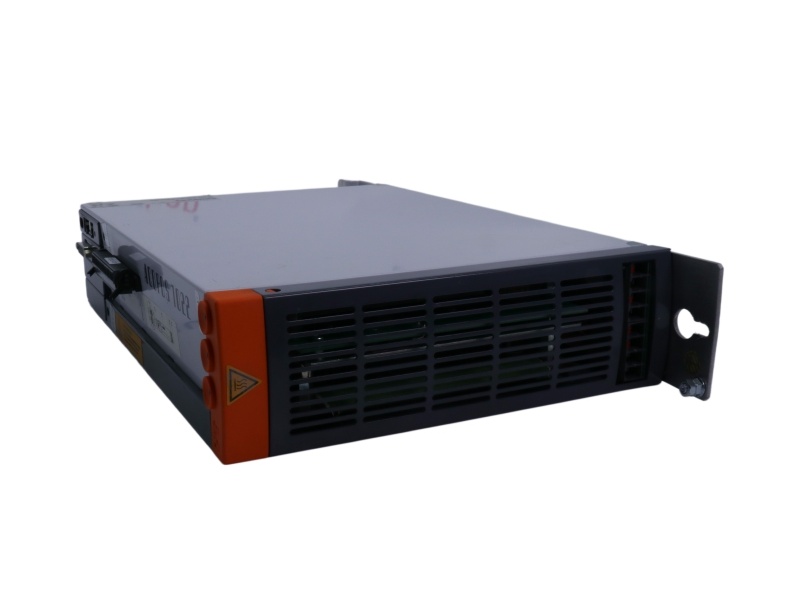

8V1022.001-2 is a B&R ACOPOS servo drive featuring partially-coated circuit boards for superior environmental robustness. Fully compatible with various plug-in modules, this unit works seamlessly with industrial motors to deliver flexible automation control, integrated braking resilience, and stable machine-level communication.

Specific Application

• High-precision multi-axis positioning control in packaging machinery requiring integrated electronic safe restart protection.
• Dynamic motion profile execution in harsh industrial environments prone to non-conductive pollution and moisture.
• Compact control cabinet builds where an integrated line filter and built-in braking resistor eliminate external component footprints.

Status Indicators

• READY LED (Green): Displays solid green when the module is fully operational and the power stage can be enabled. It switches to blinking green if a temporary fault blocks operation, such as a missing enable signal, DC bus out-of-bounds, or overtemperature.
• RUN LED (Orange): Displays solid orange when the base module's power stage is actively enabled and delivering power.
• ERROR LED (Red): Displays solid red when a permanent error occurs on the module, indicating severe faults like a permanent overcurrent or invalid data in the EPROM.

Diagnostics & Interrupts

• Power Disconnect Discharge Delay: After switching off the 24 VDC mains voltage, a critical internal energy storage charge remains. You must wait for the DC bus to discharge for at least five minutes, and verify the voltage is under 42 VDC with a measuring instrument before starting work.
• Plug-in Module Boot Diagnostics: The device runs sequential LED interval diagnostic blinks during startup to monitor the hardware status. Red indicator changes trace specific hardware boot faults, such as an invalid hardware ID, a CAN bus-off state, or an unassigned station number.
• Motor Protection Interrupts: The drive integrates hardware-level evaluation paths for motor temperature sensors and holding brakes. Swapping the polarity on permanent magnet holding brakes restricts them from opening, while open circuit monitoring trips an alarm if current drops below approximately 385 mA.

Installation & Troubleshooting FAQ

Q1: What are the strict physical clearance requirements for mounting the 8V1022.001-2 inside a cabinet?
A: To guarantee sufficient air circulation and prevent overheating, you must preserve a clearance of at least 80 mm above and below the drive housing. Furthermore, maintain a minimum of 100 mm spacing under the module to prevent electrical wiring problems and strain.

Q2: What is the maximum permitted motor cable length and how can insulation stress be mitigated?
A: The maximum rated motor cable length for this servo drive configuration is 25 meters. If your industrial layout requires reduced insulation stress on the connected motor system, you can wire an external dv/dt choke into the line while ensuring a low-inductance shield link is used.

Q3: Why did the drive abort the current movement and trip with speed error 6060?
A: This safety response triggers because the module's electrical output frequency exceeded the limit value of 598 Hz uninterrupted for more than 0.5 seconds. The device actively monitors this parameter to protect against dual-use operation in compliance with industrial regulation frameworks.
