General Information

Core Description

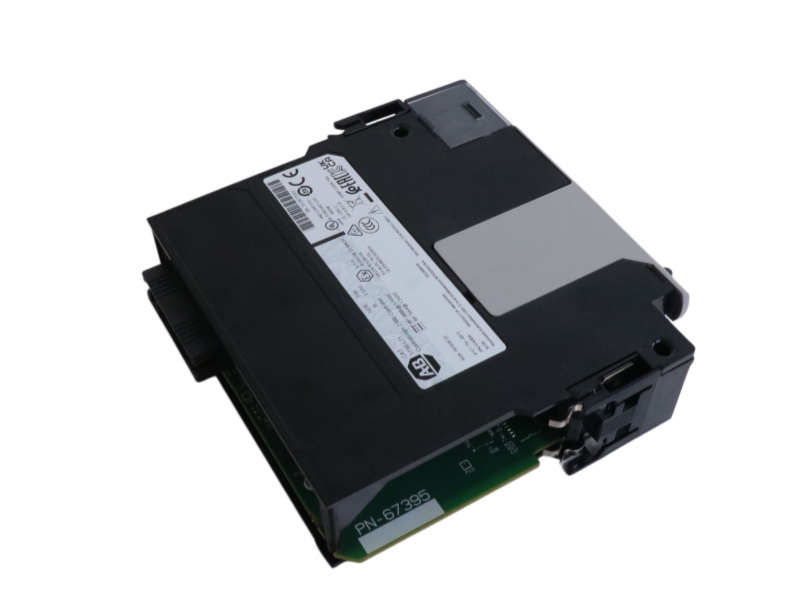

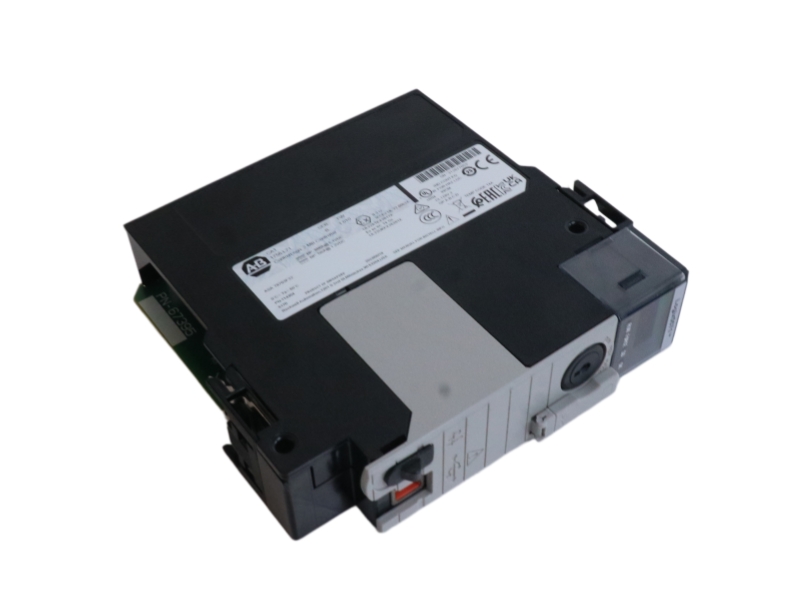

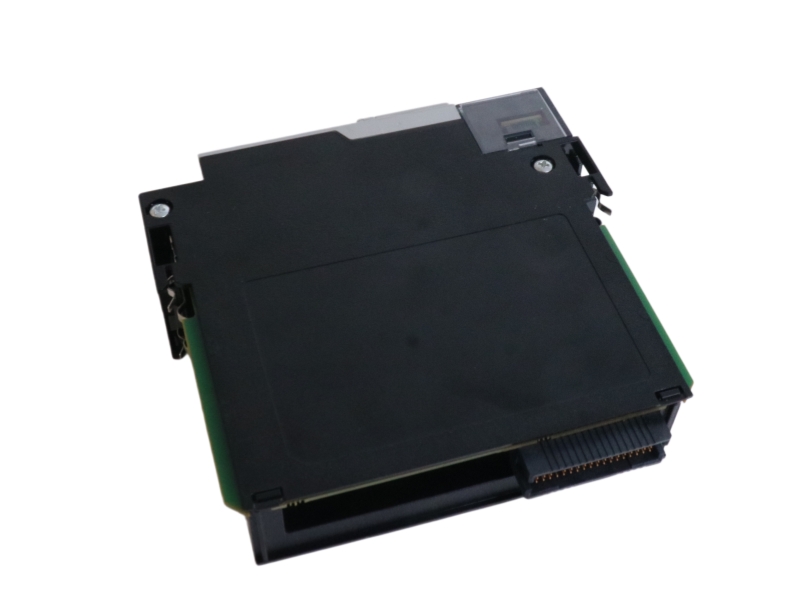

Engineered for reliable large-scale industrial automation, the 1756-L71 standard controller belongs to the ControlLogix 5570 processor family and is equipped with 2 MB of user memory. This chassis-based programmable automation controller provides full multi-computing support, allowing industrial engineers to deploy multiple processors in a single 1756 rack to split heavy communication and logic execution. It is designed to coordinate distributed I/O networks seamlessly, optimizing control loop execution without requiring localized processor overhead.

Specific Application

Plant-Wide Process Automation: Executing multi-tasking control loops for synchronized process parameters (e.g., continuous blending systems, large water treatment facilities).

Multi-Processor Distributed Workloads: Serving as a dedicated logic or communication coprocessor alongside higher-tier Logix units in dense 1756 chassis configurations.

Ordering Information

ControlLogix 5570 and GuardLogix 5570 Controllers

System Compatibility

• System Compatibility: The 1756-L71 controller is fully slot-independent and sits securely into any standard 1756 chassis including 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17 (Series B and Series C). It pairs smoothly with standard power supplies (1756-PA72, 1756-PB75) and redundant power modules (1756-PA75R, 1756-PSCA2). To establish field networks, it must route through dedicated 1756 network bridge modules, supporting up to 128,000 digital and 4,000 analog I/O points across EtherNet/IP, ControlNet, DeviceNet, DH+, and Remote I/O.
• Direct Next-Generation Alternates: 1756-L81E (ControlLogix 5580 Standard) and 1756-L902TS (ControlLogix 5590 Standard).
• Key Differences from Alternates (1756-L71 vs. 5580 / 5590):
• Onboard Communication: The legacy 1756-L71 provides only a front-panel USB port solely intended for temporary local programming and edits. It cannot interface with networks without adding an external chassis-mounted communication bridge. The newer 1756-L81E and 1756-L902TS come built with a native, high-speed Gigabit Embedded Ethernet port right on the processor face.
• Energy Storage & Memory Architecture: The 1756-L71 relies on a standard removable Secure Digital (SD) card for nonvolatile backup. The 5590 series (1756-L902TS) upgrades the system with embedded, non-removable hardware energy storage modules that eliminate lithium battery maintenance, a pre-installed 8 GB microSD card, and dual-layer native safety memory profiles.

Installation & Troubleshooting FAQ

Q1: Can I use the front USB port on the 1756-L71 for permanent HMI communication or data logging?

A1: No. The onboard USB port is strictly intended for temporary local programming, firmware flashing, and configuration updates. It operates at full speed (12 Mbps) and is not industrially isolated for continuous network architecture. Crucially, the USB port must never be used or plugged into while the controller is positioned in a hazardous location to prevent accidental spark hazards.

Q2: My 1756-L71 system is suffering from localized logic latency. How does the controller support multi-computing to fix this?

A2: The ControlLogix backplane features true slot-independent, multi-computing support. If your 1756-L71 is bogged down by complex mathematics or high message transaction rates, you can slide a second 1756-L71 (or another 5570 processor) directly into any empty slot of the same chassis. By transferring heavy data handling tasks to the secondary processor, you offload the primary controller without altering physical I/O wiring.

Q3: What specific earthing and wiring protocols must be followed to avoid noise faults on a 1756-L71 rack?

A3: To ensure the 1756-L71 remains operational under heavy electrical noise, all layout planning, conductor segregation, and shield grounding must adhere to the Industrial Automation Wiring and Grounding Guidelines, published under reference publication 1770-4.1. Ensure your network lines use specified wire categories (Category 2 for Ethernet ports, Category 3 for USB loops) to prevent data packet corruption.

Q4: The 1756-L71 technical data sheets show an "Open style" enclosure rating. What does this mean for field installation?

A4: An "Open style" rating means the 1756-L71 provides no built-in physical barrier against airborne particulates or environmental ingress. For safe deployment, the entire chassis assembly must be mounted inside a NEMA 1 (or equivalent) windowless metal protective enclosure. This enclosure protects the open electronic backplane and helps manage the 6.2 W power dissipation and 21.2 BTU/hr thermal dissipation generated by the active processor.

Q5: Can I hot-swap or deploy a standard 1756-L71 controller directly inside a chemical processing room with sulfur vapors?

A5: No, you cannot use a standard 1756-L71 because it is not conformal coated, leaving its raw copper paths vulnerable to severe corrosion and silver film growth. For severe chemical environments, you must deploy a specialized variant like the 1756-L73XT or transition to the newer 1756-L81EK / 1756-L81EXT processors. These harsh-environment units feature protective chemical coatings certified to meet extreme Severity Level G3 or GX gas contaminant limits.

Certification

• China CCC
• American Bureau of Shippin
• Safety
• CE
• ATEX
• Australian RCM
• IECEx Scheme
• Korean KC
• Registro Italiano Navale
• UL Listed
• UL Listed Hazardous
• MOROCCO DOC
• Eurasion Economic Community

This product was certified with the above certifications as of {}. Products sold before or after this date might carry different certifications. Please review the product label to check for the certifications your specific product carries.
