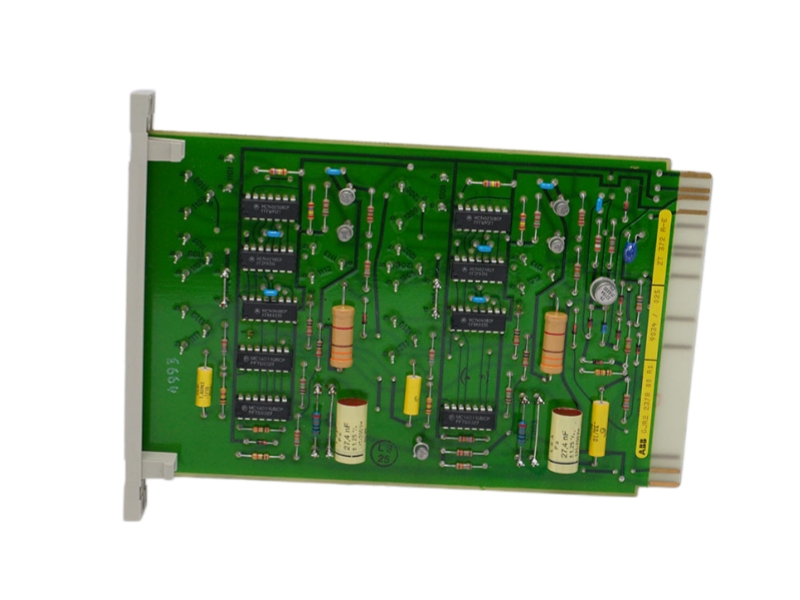

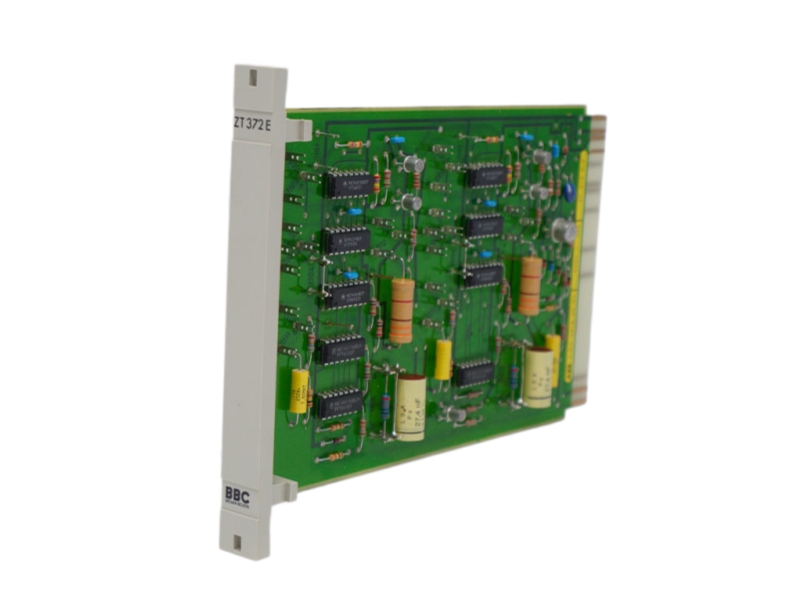

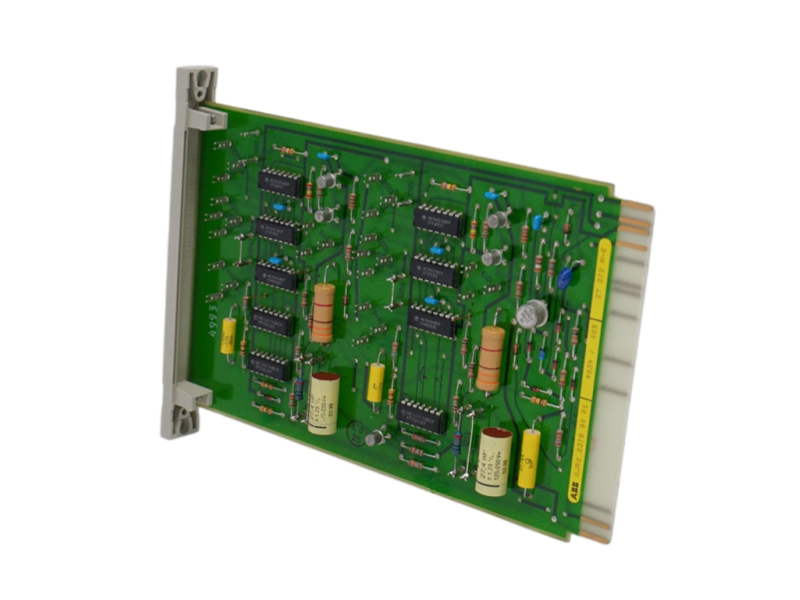

ZT372 A-E GJR2237800R1 ABB ProControl Universal Time Module

ZT372 A-E GJR2237800R1 ProControl Universal Time Module

Inquiry now

General Information

Model number	ZT372 A-E GJR2237800R1
Country of origin	SWEDEN
Condition	Brand New
Dimension	13.5x2x16cm
Weight	0.3kg
Lead time Warranty	in stock
MOQ	1 pcs

Core Description

The ZT372 A-E GJR2237800R1 is a high-accuracy, system-critical universal time and clock synchronization module built for the ABB ProControl P13/P14 network topology. Operating on a 24 VDC supply voltage, this plug-in card establishes real-time deterministic time-stamping and master-clock references across distributed process blocks. It works seamlessly within power plant automation subracks to deliver microsecond-level clock accuracy, eliminating chronological drift and ensuring stable network-wide phase data alignment.

Specific Application

Power Plant DCS Clock Synchronization: Serves as a localized master or universal time reference to synchronize sequence-of-events logs across multiple controller racks.
Distributed System Event Time-Stamping: Coordinates high-speed communication channels and I/O bus cycles inside complex turbine control or boiler protection loops.
Synchronous Network Data Alignment: Minimizes cross-channel timing skew across distributed process stations to safeguard real-time interlocking logic.

Ordering Information

Commercial & Technical Metric	Selected Hardware Configuration Data
Model Type Code	ZT372 A-E
Order Part Number	GJR2237800R1
Manufacturer Brand	ABB
System Family Line	ProControl P13 / P14 Decentralized Control System
Primary Core Function	Universal Time Module / Clock Synchronization Board
Operating Input Voltage	24 VDC nominal supply range
Base Module Current	37 mA + physical load on active outputs
Maximum Output Load	Up to 5 A maximum
Net Hardware Weight	0.30 Kilograms
Physical Board Volume	Standard plug-in card configuration
Global HS Code	8537101190

System Compatibility

Bus & Backplane Systems: Native integration with standard ABB ProControl subracks utilizing specialized system bus interfaces.

Power Parameters: Operates on a standard 24 VDC nominal supply voltage with an internal base current consumption of approximately 37 mA.

Software Tools: Fully programmable and addressable via standard ProControl engineering workstation utilities.

Alternative Models & Functional Differences

ZT372/3: A variant configuration within the same time-module family. While sharing core architectural characteristics, the ZT372 A-E revision integrates upgraded surface-mount components to provide lower internal power dissipation and enhanced noise immunity in high-temperature subracks.

Modern 800xA System Time Masters: Contemporary clock synchronization blocks relying on standard GPS/NTP network protocols. Unlike the specialized bus-coupled ZT372 A-E, newer variants utilize Ethernet-based architectures rather than proprietary ProControl P13/P14 parallel bus connections.

Installation & Troubleshooting FAQ

Q1: What unique physical card configurations must be verified before sliding the module into the rack?

A: You must configure the onboard jumpers or micro-switches to define its specific station address and operating mode (such as master or slave time sync node) before slotting it in. Ensure the subrack frame power supply is completely switched off during insertion to avoid voltage transients that could damage the edge-connector pins.

Q2: Why is the diagnostic bus reporting a time-stamp fault or failing to align with neighboring subracks?

A: This symptom typically indicates a clock master configuration mismatch or a physical interrupt on the sync line. Check that the master ZT372 A-E card is outputting the sync pulse correctly, and verify that the current consumption on the output path does not exceed the maximum 5 A load limit.

Q3: How do you identify a physical hardware fault on the universal time board during runtime?

A: Check the status LEDs on the module faceplate. If the system fault indicator stays continuously lit after a system reboot, the board has failed its internal microprocessor runtime self-test. Check for dust build-up or structural thermal trace stress on the board components, and swap the unit with a verified factory spare if the error persists.
