General Information

Core Description

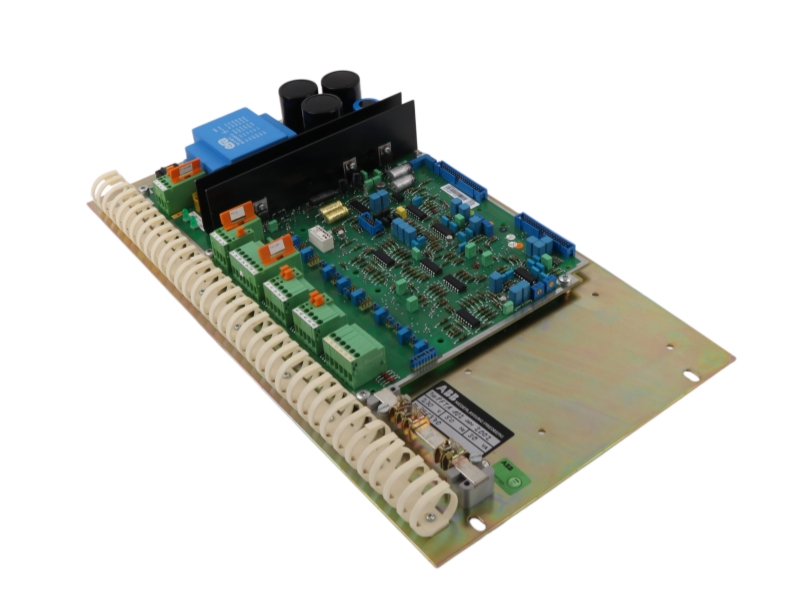

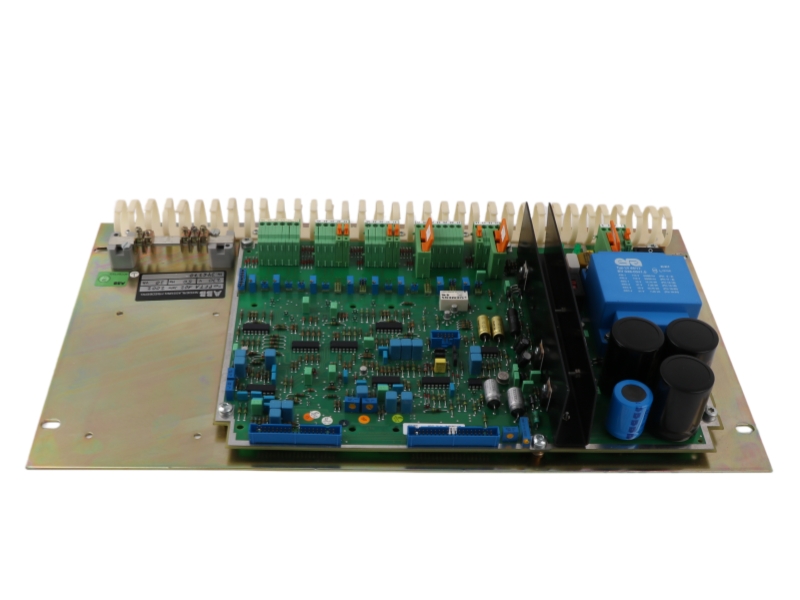

PFTK 101A YM222001-UC is an ABB industrial control unit board featuring a high-performance 32-bit ARM Cortex-M4 processor and flexible communication interfaces including RS485, Ethernet, and Modbus RTU/TCP protocols. Fully compatible with ABB ACS880 series drives and PFTA102 control platforms, this unit works seamlessly with existing automation systems to deliver precise motor control via Direct Torque Control (DTC), advanced signal processing, and ruggedized performance for harsh manufacturing and process control environments.

Specific Application

• Low voltage AC drive control – serving as the primary control unit for ABB ACS880 series drives, executing Direct Torque Control (DTC) algorithms for precise speed and torque regulation of AC motors
• Manufacturing automation systems – providing logic control, data acquisition, and signal conditioning for production lines, robotics, and material handling equipment
• Oil and gas, mining, and water treatment process control – monitoring and controlling pumps, compressors, and fans in demanding environments with extended temperature tolerance and IP65-rated protection
• HVAC system management – controlling large air handling units, chillers, and cooling towers with real-time performance monitoring and diagnostic feedback

System Compatibility

The PFTK 101A YM222001-UC is designed for ABB industrial automation systems and is primarily used with:

• ABB ACS880 series low voltage AC drives as the primary control unit
• PFTA102 series industrial control platforms
• ABB ModuleBus networks via optical fiber interfaces for I/O cluster connectivity
• Systems requiring Modbus RTU, Modbus TCP/IP, PROFIBUS, and EtherCAT communication protocols
• ABB automation systems with CI801 or CI840/CI840A communication interfaces through TB842 module bus connections

Alternative Models and Differences:

• Installation & Troubleshooting FAQ

• Q1: What is the correct operating voltage for the PFTK 101A YM222001-UC?
  A: The standard operating voltage is 24V DC, with an acceptable range of 24–48 VDC depending on the specific system configuration. Always verify your drive or control rack power specifications before connecting the board. Some configurations may support 12V DC or 220V AC variants.

  Q2: Can the PFTK 101A YM222001-UC be used with the ABB ACS880 drive series?
  A: Yes, the PFTK 101A YM222001-UC is specifically designed as a control unit for ABB low voltage drives including the ACS880 series. It executes advanced Direct Torque Control (DTC) algorithms and manages communication between the drive and the connected motor.

  Q3: How do I resolve communication failures between the control board and my automation network?
  A: Communication issues typically indicate incorrect protocol settings, cabling problems, or network configuration errors. Check that the Modbus RTU or TCP/IP settings match your system configuration. Verify that shielded RS485 or Ethernet cables are used to prevent EMI interference. The board supports multiple protocols including PROFIBUS and EtherCAT – ensure the correct protocol is selected in the configuration software.

  Q4: What is the maximum operating temperature for this control unit board?
  A: The industrial-grade operating temperature range is -20°C to +70°C, with storage temperature from -40°C to +85°C. The board features IP65 protection against dust and water ingress, making it suitable for harsh industrial environments including oil refineries, chemical processing plants, and outdoor installations.

  Q5: Does the PFTK 101A YM222001-UC support hot-swapping?
  A: Yes, the board supports hot-swapping when used in redundant ModuleBus configurations. However, for simplex (non-redundant) installations, system shutdown is recommended before board replacement. Always follow ESD protection protocols when handling the board.
